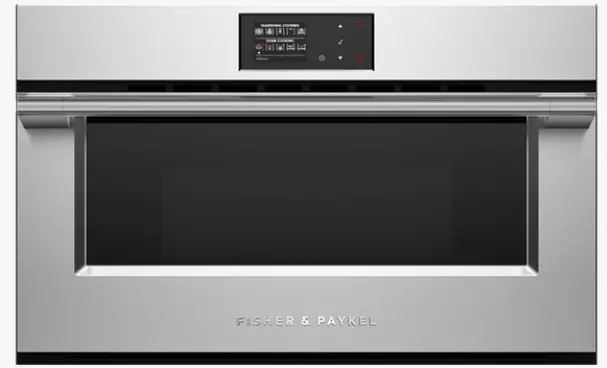

OS76NPX1 Combination Steam Oven
User Guide
Combination Steam Oven
QUICK REFERENCE GUIDE > OS76NPX1
Combination Steam Oven, 76cm, 9 Function
Series 9 | Professional
Stainless SteelGet more flexibility in the kitchen with both convection cooking and steam cooking, which reduces the need for oils and fats.
- 37L total capacity
- Steam cooking allows you to cook ingredients in their own juices, to retain nutrients and flavor
- Cooking flexibility with nine oven functions, including five Steam functions, plus Grill and Convection
- Designed to match aesthetically with companion products such as Warming Drawers, for flexible cooking configurations
DIMENSIONS
| Height | 470mm |
| Width | 757mm |
| Depth | 579mm |
FEATURES & BENEFITS
HEALTHY EATING
The Combination Steam Oven allows you to cook ingredients in their own juices to retain nutrients and flavour, with the steam moisture reducing the need for additional oils or fats.
SIZED TO SUIT
This 76cm Combination Steam Oven can be placed almost anywhere. All companion products can be installed at a convenient height to suit your kitchen design and preference.
SIMPLE TO USE
An easy-to-use, the intuitive display provides useful information about functions along with a refill alert.
EASY CLEANING
Cleaning the Steam Oven is effortless. After each use, simply wipe the smooth stainless-steel interior with a dry cloth.
SAFE AND SOUND
Keep those inquisitive little hands safe. A child lock has been included in the design of this Steam Oven.
EASY INSTALLATION
Plug in and cook straight away. The Steam Oven is easy to install, with no plumbing needed.
SPECIFICATIONS
Accessories
| Baking pan | 1 |
| Food probe | 1 |
| Perforated tray and lid | 1 |
| Wire shelf | 1 |
Capacity
| Shelf positions | 3 |
Cleaning
| Acid-resistant graphite enamel | • |
| Easy to clean formed side | • |
| Removable water tank | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High-resolution touch display | • |
| Internal light | • |
| Intuitive information display | • |
| Multi-language interface | • |
| Precise electronic temperature | • |
| Recipe and food-based | • |
Functions
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Recipe function | • |
| Ring + grill | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam Assist | • |
| True convection | • |
Power requirements
| Amperage | 15A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 579mm |
| Height | 470mm |
| Width | 757mm |
Safety
| ADA compliant | • |
| Control panel key lock | • |
| CoolTouch door | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82728 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
