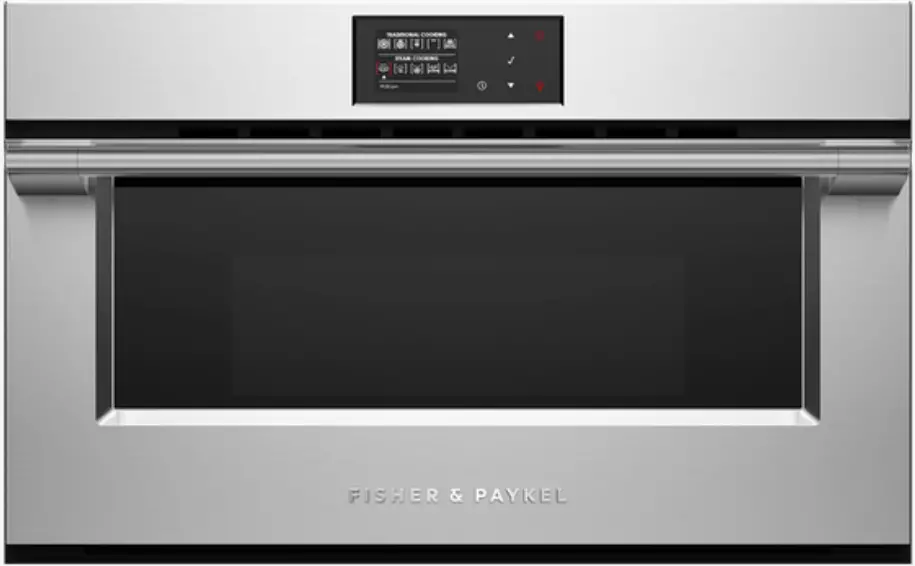

OS76NPX1 Combination Steam Oven, 76cm, 9 Function
User Guide
OS76NPX1 Combination Steam Oven, 76cm, 9 Function
QUICK REFERENCE GUIDE > OS76NPX1
Combination Steam Oven, 76cm, 9 Function
Series 9 | Professional
Stainless SteelGet more flexibility in the kitchen with both convection cooking and steam cooking, which reduces the need for oils and fats.
- 37L total capacity
- Steam cooking allows you to cook ingredients in their own juices, to retain nutrients and flavour
- Cooking flexibility with nine oven functions, including five Steam functions, plus
- Grill and Convection
- Designed to match aesthetically with companion products such as Warming Drawers, for flexible cooking configurations
DIMENSIONS
| Height | 470mm |
| Width | 757mm |
| Depth | 579mm |
FEATURES & BENEFITS
HEALTHY EATING
The Combination Steam Oven allows you to cook ingredients in their own juices to retain nutrients and flavour, with the steam moisture reducing the need for additional oils or fats.
SIZED TO SUIT
This 76cm Combination Steam Oven can be placed almost anywhere. All companion products can be installed at a convenient height to suit your kitchen design and preference.
SIMPLE TO USE
An easy to use, intuitive display provides useful information about functions along with a refill alert.
EASY CLEANING
Cleaning the Steam Oven is effortless. After each use, simply wipe the smooth stainless-steel interior with a dry cloth.
SAFE AND SOUND
Keep those inquisitive little hands safe. A child lock has been included in the design of this Steam Oven.
EASY INSTALLATION
Plug in and cook straight away. The Steam Oven is easy to install, with no plumbing needed.
SPECIFICATIONS
| Accessories | |
| Baking pan | 1 |
| Food probe | 1 |
| Perforated large dish | 1 |
| Wire shelf | 1 |
| Capacity | |
| Shelf positions | 3 |
| Water tank capacity | 1L |
| Cleaning | |
| Easy clean stainless steel | • |
| Removable water tank | • |
| Steam clean (oven) | • |
| Controls | |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | French, Spanish, UK English, |
| Precise electronic temperature | • |
| Recipe and food based | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Recipe function | • |
| Ring + grill | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam assist | • |
| Steam clean (oven) | • |
| True convection | • |
| Performance | |
| Grill power | 1500W |
| SteamTechnology | • |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 579mm |
| Height | 470mm |
| Width | 757mm |
| Safety | |
| Control panel key lock | • |
| CoolTouch door | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 82728 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
