Virtus Nano Carbon
Installation Guide
Virtus Nano Carbon
62,63
Virtus Nano
Carbon Integra
62
Components
MM2, MW6, MXR200.4,
MXR130, MXR250.4i
MT120N
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems. We hope you enjoy your Virtus Nano Carbon speakers for years to come. If you have any questions, please contact your Morel dealer or Morel support at: www.morelhifi.com

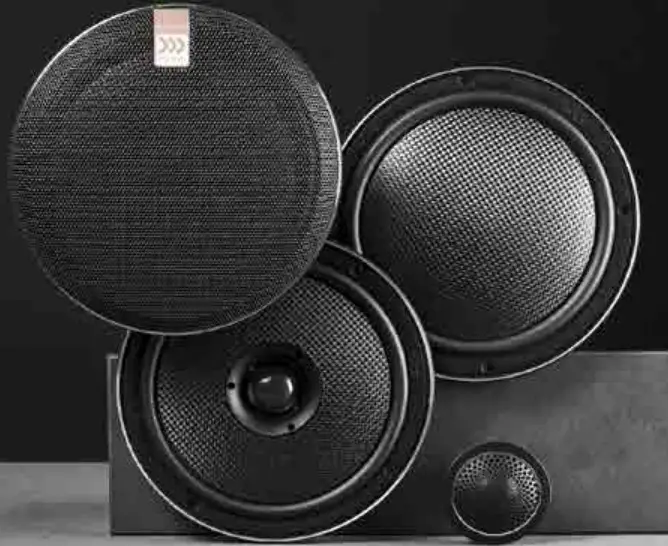

Virtus Nano Carbon

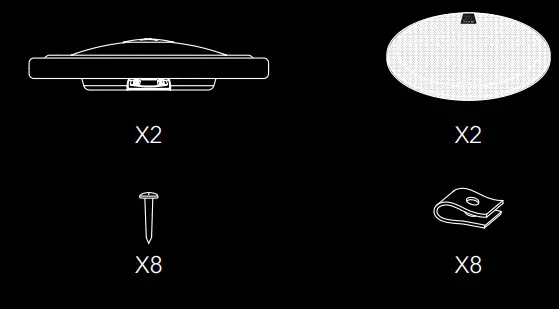

6.5″ Woofer / Integra

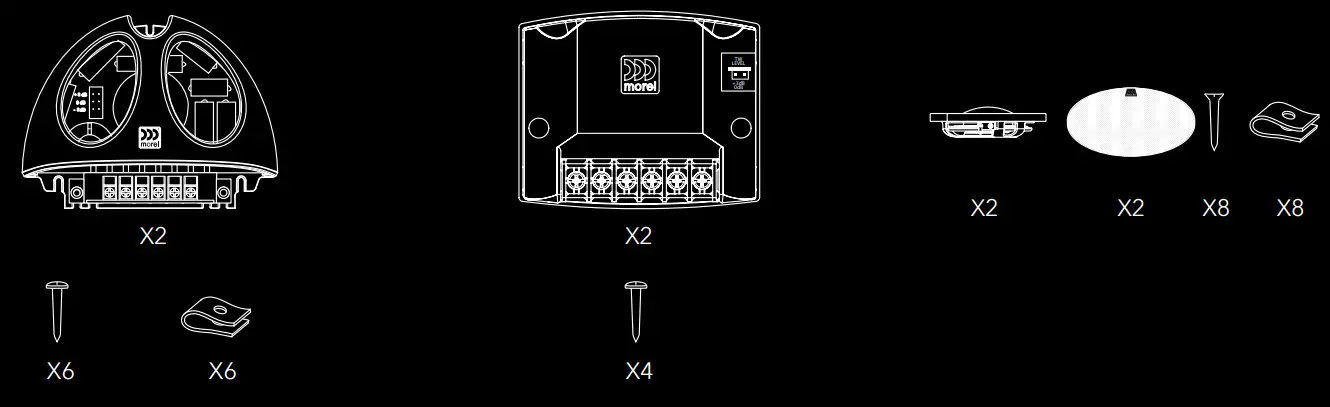

MXR 200.4/250.4i Crossover
MXR 130 Crossover
MM2 Midrange

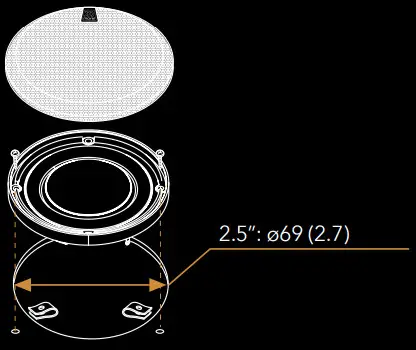

Midrange, Woofer, and Tweeter mounting

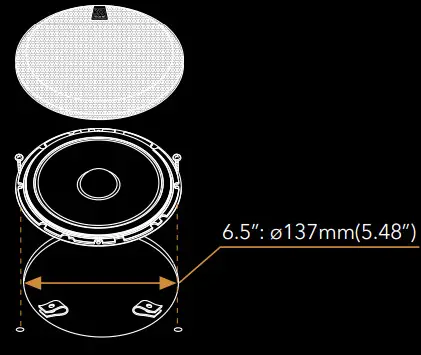

6.5″ Woofer / Integra
MT120N
MM2

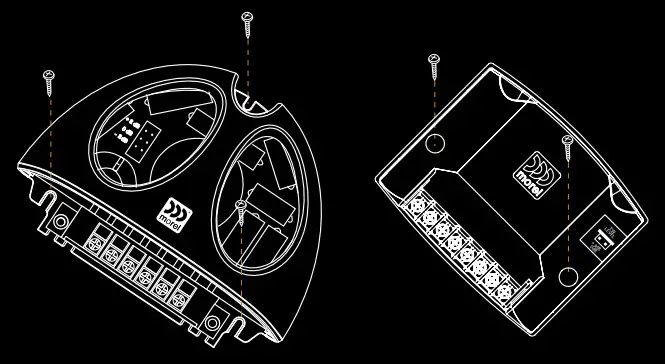

Crossover mounting

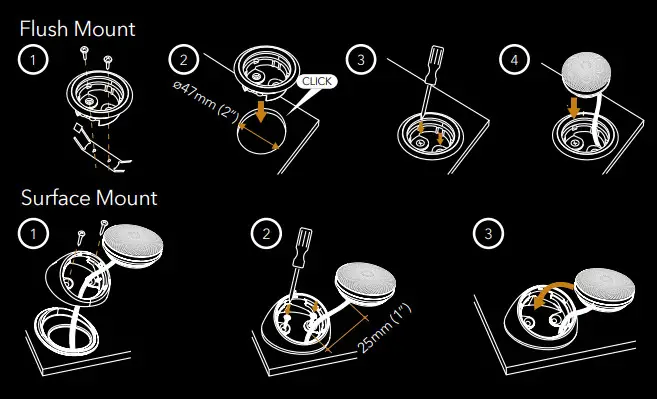

Tweeter, Crossover Mounting

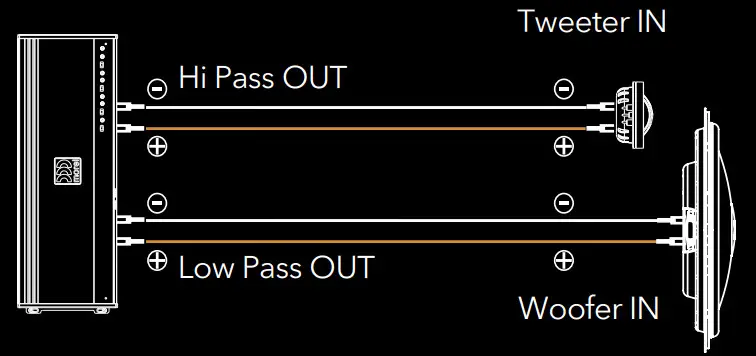

2-WAY System Wiring
ACTIVE SET UP (Outputs must be filtered)

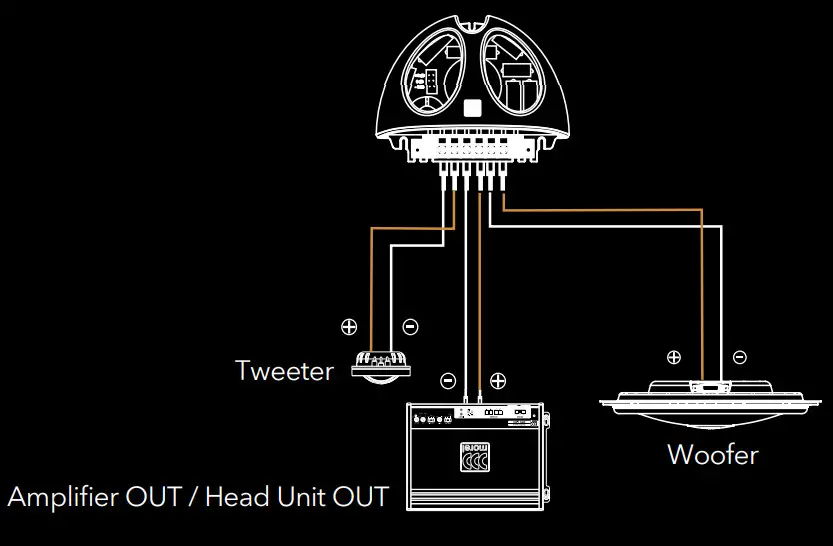

PASSIVE SET UP

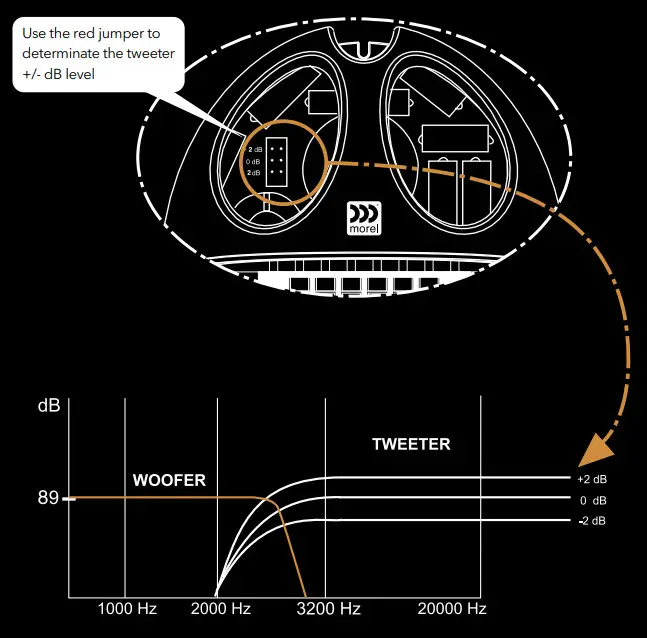

2-WAY System Alignment
Crossover

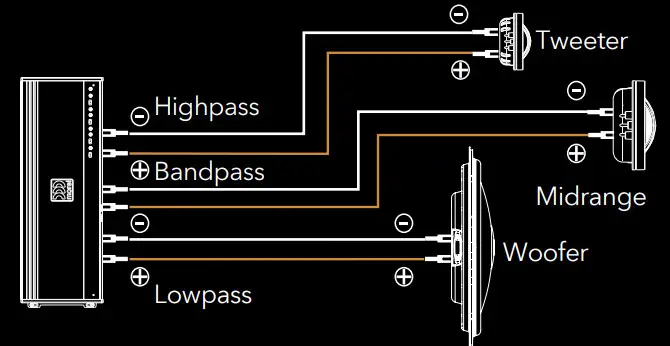

3-WAY System Wiring
ACTIVE SET UP (Outputs must be filtered)
6-Channel amplifier with active crossovers required
3-Way Component Systems
Tweeter HP: 2,500Hz @ 12dB slope
Midrange LP: 2,500Hz @ 12dB slope
Midrange HP: 500Hz @ 12dB slope
Woofer LP: 500Hz @ 12dB slope

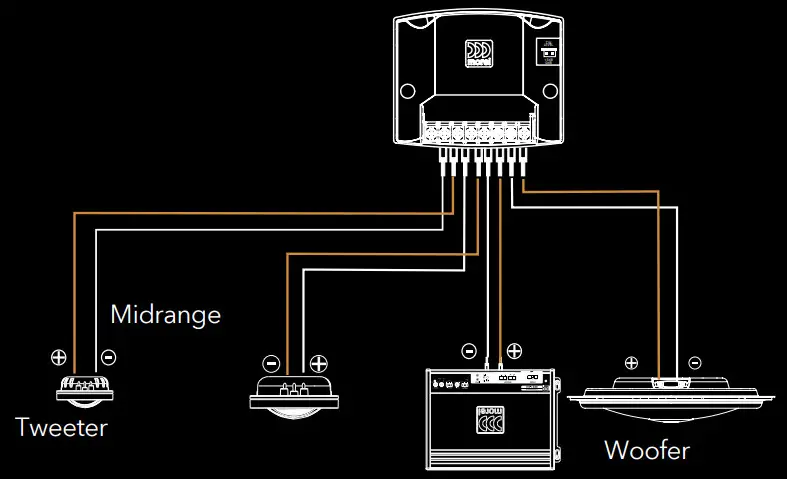

PASSIVE SET UP

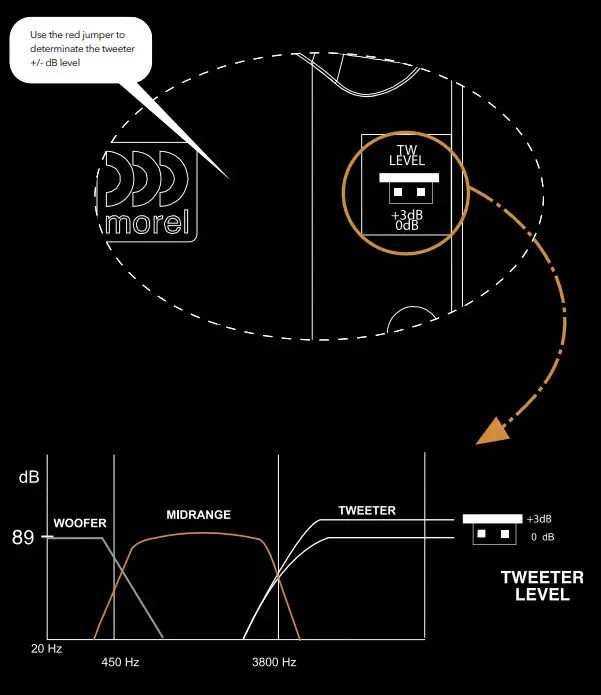

3-WAY System Alignment

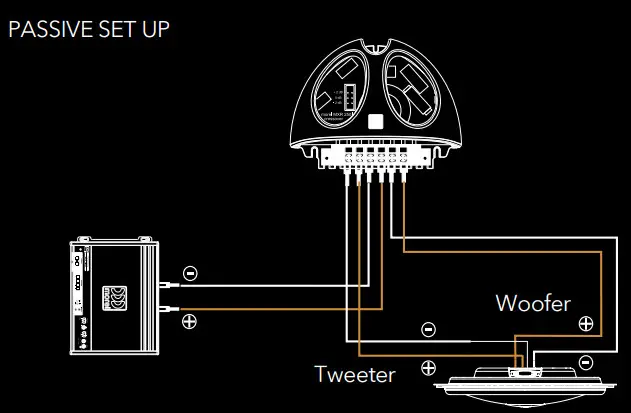

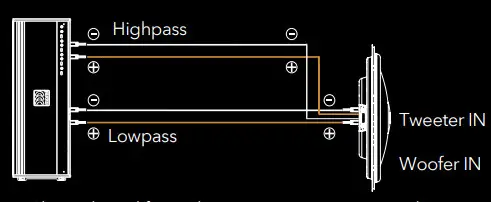

Integra System wiring
ACTIVE SET UP
4-Channel amplifier with active crossovers required
Tweeter HP: 2,500Hz @ 12dB slope
Woofer LP: 2,500Hz @ 12dB slope

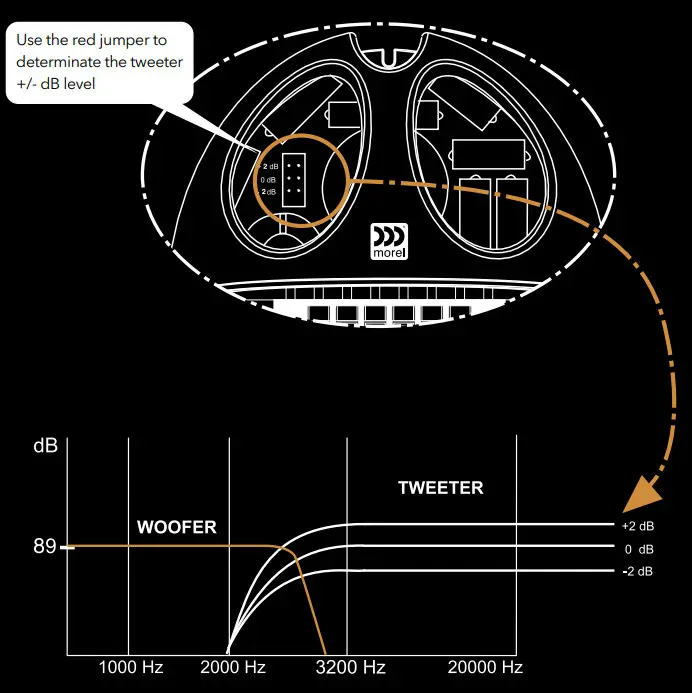

Integra System alignment
Specifications
| VIRTUS NANO CARBON | MW6 | INTEGRA WOOFER |
| Nominal Impedance (ohm) | 4 | 4 |
| Power Handling Wrms | 100 | 100 |
| Max. Trans. Pwr Handling Wrms | 300 | 300 |
| Sensitivity (2.83 V/1M) | 88dB | 87dB |
| Frequency response Hz | 50-5500 | 50-5500 |
| Resonance Freq. Fs Hz | 68 | 73 |
| Voice Coil Diameter mm (inch) | 68 | 54(2.16) |
| Voice Coil Height mm (inch) | 54 (2.16) | 9.5 (0.4) |
| Voice Coil Type/Former | 9.5 (0.4) | Aluminium |
| Voice Coil Wire | Aluminium | Hexatech aluminium |
| DC Resistance (ohm) | HexatechTM Aluminium | Neodymium Vented |
| Voice Coil Induct. @1 kHz (mH) | 3 | 3 |
| Magnet System | 0.17 | 0.17 |
| HE-Magnetic Gap Height mm (inch) | Neodymium Vented | 4 (0.16) |
| BL Product/BXL | 4 (0.16) | 4.18 |
| Max. Linear Ex./Xmax mm (inch) | 3.85 | ±3mm (0.12) |
| Electrical Q Factor QES | ±3mm (0.12) | 0.97 |
| QTS | 0.97 | 0.73 |
| QMS | 0.65 | 3.4 |
| Moving Mass MMS – gr/os | 1.98 | 11.8 (0.41) |
| Equiv. Can Air Load VAS – L (cu.ft3) | 14 (0.49) | 7.5 (0.26) |
| Effective Piston Area SD sq.cm (sq.inch) | 11 (0.38) | 116 (17.98) |
| Cone Type | 139(21.545) | Carbon Cone |
| Cone Material | Carbon Cone | Carbon + Foam Core |
| Unit Diameter mm(inch) | Carbon + Foam Core | 167 (6.5) |
| Mounting Depth mm (inch) | 167 (6.5) | 17 (0.7) |
| Mounting Cutout | 17(0.7) | 137 (5.48) |
| Net Weight gr | 137(5.48) | 470 |
| CROSSOVERS | MXR200.4 | MXR130 | MXR250.i |
| Crossover Point | 2200Hz/12dB/6dB | W: 800Hz/12dB M: 800Hz/6dB 5000Hz/6dB T: 5000Hz/6dB | 2200Hz/12dB |
| Crossover Controls | Tweeter +/- 2dB | Tweeter 0/+2dB | Tweeter +/- 2dB |
| Wiring Options | N/A | N/ A | N/A |
* Morel operates a policy of continuous products design improvement, consequently specificstions are subject to alteration without prior notice
| MIDRANGE/TWEETER | MM2 | MT120 |
| Nominal Impedance (ohm) | 4 | 8 |
| Power Handling Wrms | 60 | 80 |
| Max. Trans. Pwr Handling Wrms (10ms) | 100 | 250 |
| Sensitivity (2.83 V/1M) dB | 83 | 90 |
| Frequency Response Hz | 200-5000 | 1800-22000 |
| FS Hz | 145 | 1200 |
| Voice Coil Diameter mm (inch) | 20 (0.78) | 28 (1.125) |
| Voice Coil Former | Kapton | Aluminium |
| Voice Coil Wire | Copper | Copper |
| DC Resistance ohm | 3.2 | 5.2 |
| Magnet System | Double Magnet Neodymium | Neodymium |
| Dome Type | Aluminium Formed Dome | Acuflex hand-coated soft dome |
| Dome Material | Aluminium Anodized | Silk |
| Unit Diameter mm(inch) | 76.7 (3) | 43.00 (1.69) |
| Mounting Depth mm (inch) | 9.3 (0.37) | 13.2 (0.52) |
| Mounting Cutout | 69 (2.7) | 47.00 (2) |
| Net Weight gr | 70 | 0.07 (0.15) |
| TWEETER | INTEGRA TWEETER |
| Nominal Impedance (ohm) | 6 |
| Power Handling Wrms | 130 |
| Max. Trans. Pwr Handling Wrms (10ms) | 350 |
| Sensitivity (2.83 V/1M) dB | 88 |
| Frequency Response Hz | 1600-25000 |
| FS Hz | 900 |
| Voice Coil Diameter mm (inch) | 28 (1.125) |
| Voice Coil Former | Underhung |
| Voice Coil Wire | Hexatech TM aluminium |
| DC Resistance ohm | 5.2 |
| Magnet System | Neodymium |
| Dome Type | Acuflex™ hand-coated soft dome |
| Dome Material | Silk |
