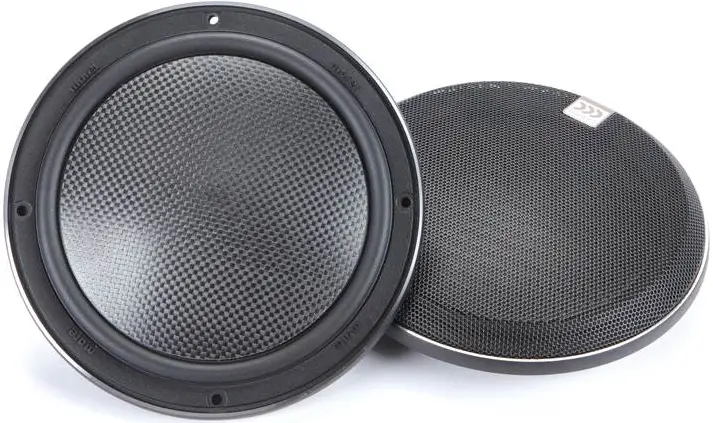

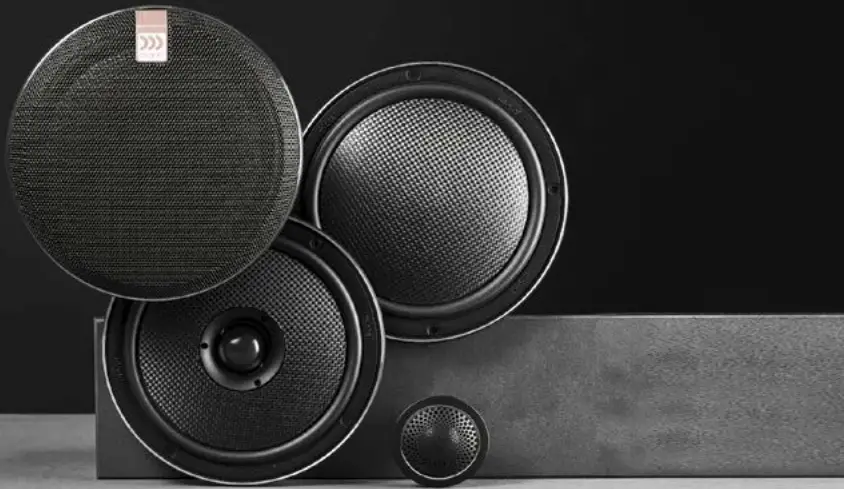

MW6 Virtus Nano Carbon
Instruction Manual
MW6 Virtus Nano Carbon
Virtus Nano Carbon
42, 62 ,63
Virtus Nano Carbon Integra
42, 62

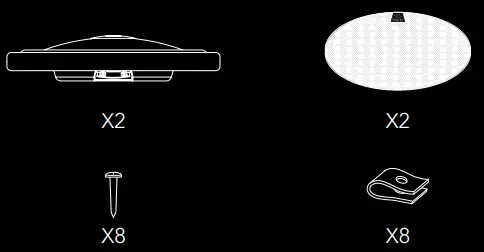

Components
MM2, MW6, MXR200.4, MXR130, MXR250.4i MT120N
Dear Customer,
Thank you for choosing Morel for your car audio speaker solution.
Morel prides itself on engineering and producing the best high-fidelity speaker systems.
We hope you enjoy your Virtus Nano Carbon speakers for years to come.
If you have any questions, please contact your Morel dealer or Morel support at: www.morelhifi.com
Virtus Nano Carbon
| 4″, 6.5″ Woofer / Integra |  |

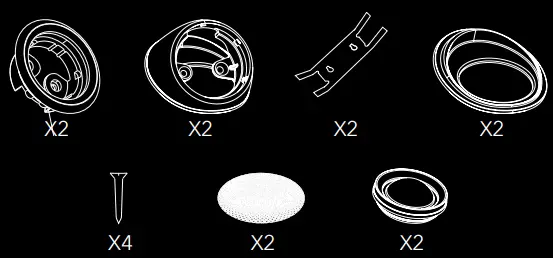

| MT120N Tweeter (in 2-WAY / 3-WAY) |  |
| MXR 200.4/250.4i Crossover |  |

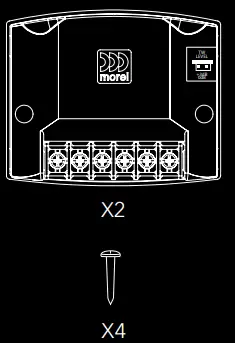

| MXR 130 Crossover |  |
| MM2 Midrange |  |

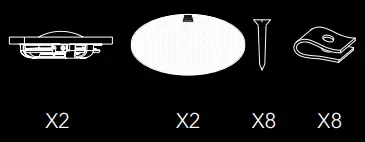

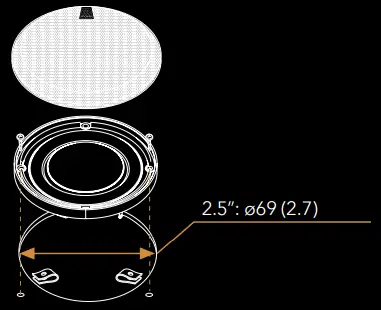

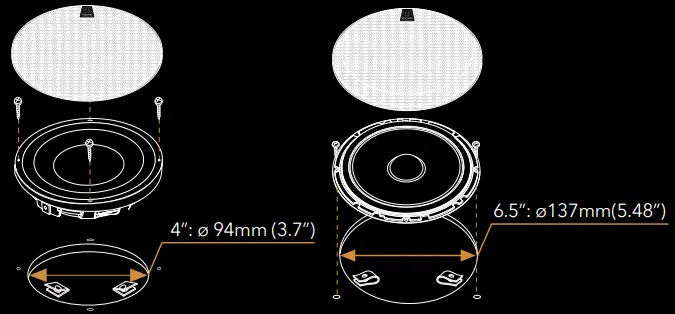

Midrange, Woofer and Tweeter mounting
| 4″, 6.5″ Woofer / Integra | MM2 |
 |  |

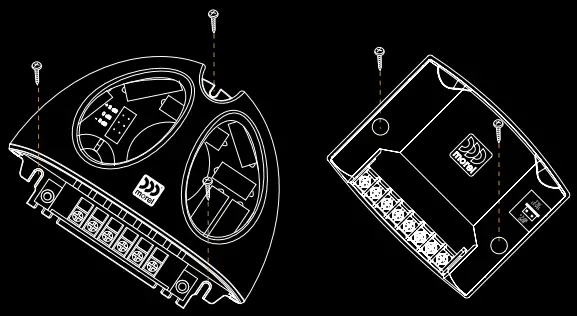

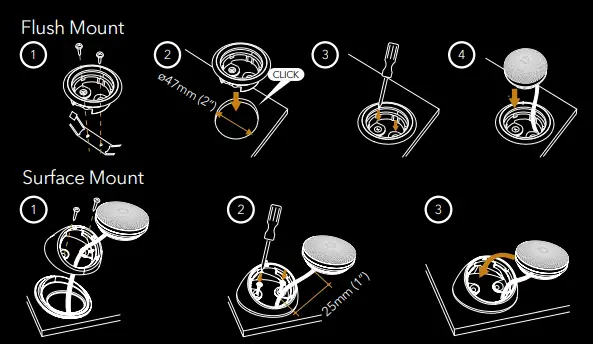

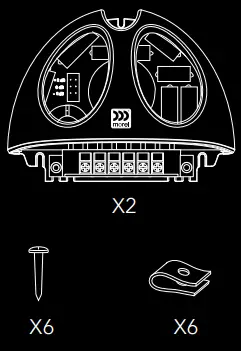

| MT120N | Crossover mounting |
 |  |
Tweeter, Crossover Mounting
2-WAY System Wiring
ACTIVE SET UP (Outputs must be filtered)
- 4-Channel amplifier with active crossovers required
- Tweeter HP: 2,500Hz @ 12dB or 24dB slope
- Woofer LP: 2,500Hz @ 12dB or 24dB slope

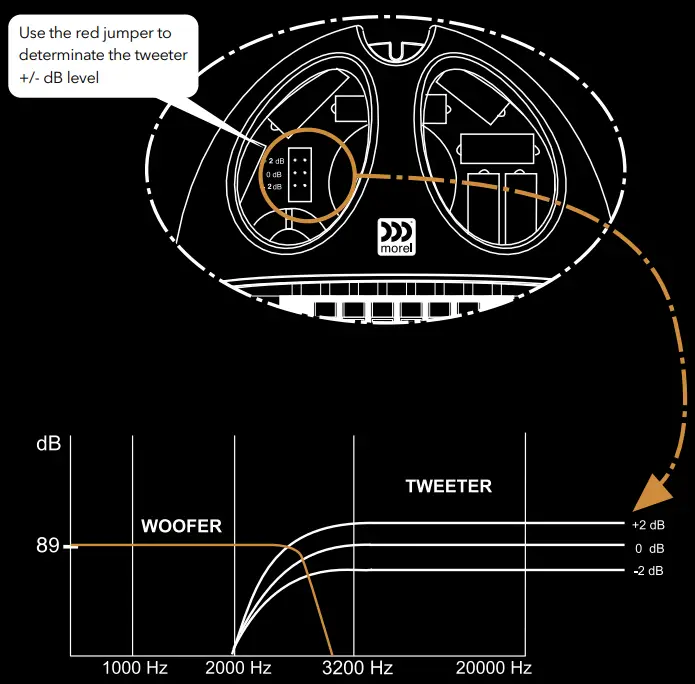

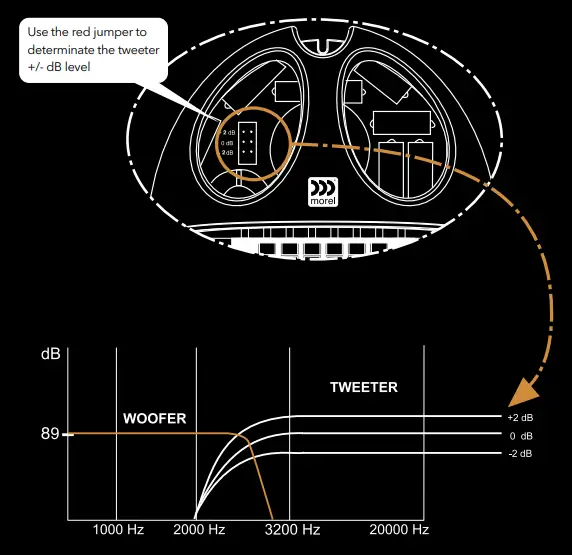

2-WAY System Alignment
PASSIVE SET UP
Crossover
3-WAY System Wiring

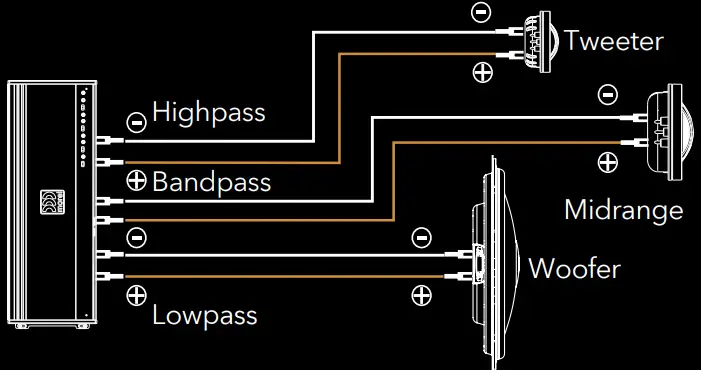

ACTIVE SET UP (Outputs must be filtered)
- 6-Channel amplifier with active crossovers required
- 3-Way Component Systems
- Tweeter HP: 2,500Hz @ 12dB slope
- Midrange LP: 2,500Hz @ 12dB slope
- Midrange HP: 500Hz @ 12dB slope
- Woofer LP: 500Hz @ 12dB slope

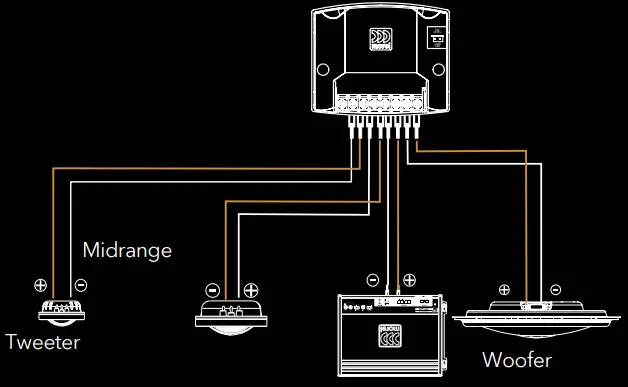

PASSIVE SET UP
3-WAY System Alignment

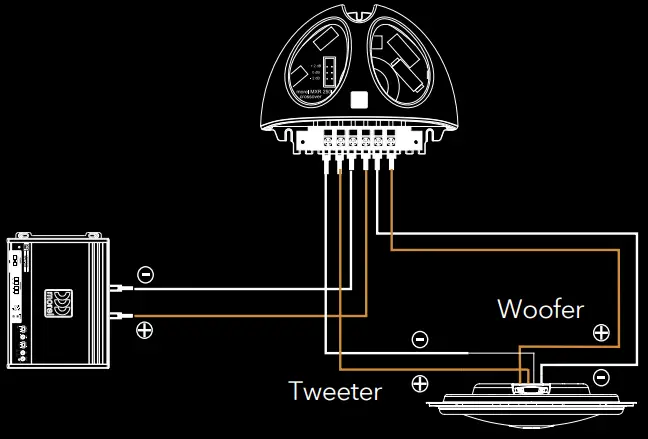

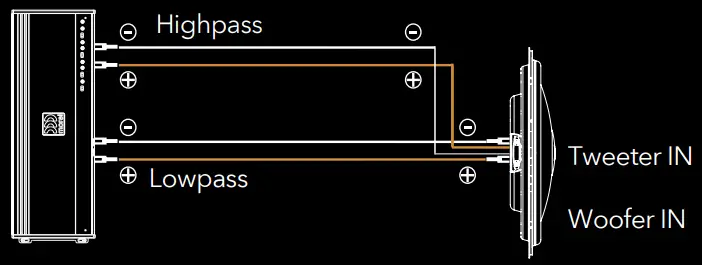

Integra System wiring
ACTIVE SET UP
- 4-Channel amplifier with active crossovers required
- Tweeter HP: 2,500Hz @ 12dB slope
- Woofer LP: 2,500Hz @ 12dB slope

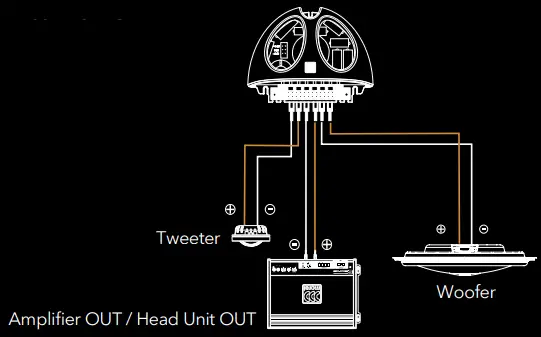

PASSIVE SET UP
Integra System aligment
Specifications
| VIRTUS NANO CARBON | MW4 | HexatechTM Aluminium | INTEGRA 4 | INTEGRA 6 |
| Nominal Impendance (ohm) | 4 | 4 | 4 | 4 |
| Power Handling Wrms | 90 | 100 | 80 | 100 |
| Max. Trans. Pwr Handling Wrms | 300 | 300 | 300 | 300 |
| Sensitivity (2.83 V/1M) | 88dB | 88dB | 87dB | 87dB |
| Frequency response Hz | 80-9200 | 50-5500 | 90-3800 | 50-5500 |
| Resonance Freq. Fs Hz | 95 | 68 | 105 | 73 |
| Voice Coil Diameter mm (inch) | 54 (2.16) | 54 (2.16) | 54 (2.16) | 54(2.16) |
| Voice Coil Height mm (inch) | 9 (0.35) | 9.5 (0.4) | 7.5 (0.3) | 7.5 (0.3) |
| Voice Coil Type/Former | Aluminium | Aluminium | Aluminium | Aluminium |
| Voice Coil Wire | HexatechTM | Hexatech™ Aluminium | Hexatech™ Aluminium | Hexatech™ aluminium |
| DC Resistance (ohm) | 3 | 3 | 3 | 3 |
| Voice Coil Induct. @1 kHz (mH) | 0.12 | 0.17 | 0.11 | 0.17 |
| Magnet System | Neodymium Vented | Neodymium Vented | Neodymium Vented | Neodymium Vented |
| HE-Magnetic Gap Height mm (inch) | 4 (0.16) | 4 (0.16) | 4 (0.16) | 4 (0.16) |
| BL Product/BXL | 4.68 | 3.85 | 3.87 | 4.18 |
| Max. Linear Ex./Xmax mm (inch) | ±3mm (0.12) | ±3mm (0.12) | ±1.75mm (0.07) | ±3mm (0.12) |
| Electrical Q Factor QES | 0.7 | 0.97 | 0.775 | 0.97 |
| QTS | 0.6 | 0.65 | 0.615 | 0.73 |
| QMS | 4.01 | 3.57 | 2.98 | 3.4 |
| Moving Mass MMS – gr/os | 8.57 (0.3) | 14 (0.49) | 5.84 (0.2) | 11.8 (0.41) |
| Equiv. Can Air Load VAS – L (cu.ft3) | 1.48 (0.05) | 11 (0.38) | 0.7 (0.02) | 7.5 (0.26) |
| Effective Piston Area SD sq.cm (sq.inch) | 57(8.8) | 139(21.545) | 35.5(5.5) | 116 (17.98) |
| Cone Type | Carbon Cone | Carbon Cone | Carbon Cone | Carbon Cone |
| Cone Material | Carbon + Foam Core | Carbon + Foam Core | Carbon + Foam Core | Carbon + Foam Core |
| Unit Diameter mm(inch) | 109 (4.3) | 167 (6.5) | 383 | 167 (6.5) |
| Mounting Depth mm (inch) | 17(0.7) | 17(0.7) | 109 (4.3) | 17 (0.7) |
| Mounting Cutout | 93 (3.6) | 137(5.48) | 17(0.7) | 137 (5.48) |
| Net Weight gr | 376 | 450 | 93 (3.6) | 470 |
| MIDRANGE / TWEETER | MM2 | INTEGRA | MT120N |
| Nominal Impendance (ohm) | 4 | 4 | 8 |
| Power Handling Wrms | 60 | 90 | 80 |
| Max. Trans. Pwr Handling Wrms (10ms) | 100 | 180 | 250 |
| FS Hz | 83 | 90.5 | 90 |
| Sensitivity (2.83 V/1M) dB | 200-5000 | 1800-20000 | 1800-22000 |
| Frequency Response Hz | 145 | 1000 | 1200 |
| Voice Coil Diameter mm (inch) | 20 (0.78) | 28 (1.125) | 28 (1.125) |
| Voice Coil Former | Kapton | Copper | Aluminium |
| Voice Coil Wire | Copper | Neodymium | Copper |
| DC Resistance ohm | 3.2 | 5.2 | 5.2 |
| Magnet System | Double Magnet Neodymium | Neodymium | Neodymium |
| Dome Type | Aluminium Formed Dome | Acuflex™ ahand coated soft dome | Acuflex™ hand coated soft dome |
| Dome Material | Aluminium Anodized | Silk | Silk |
| Unit Diameter mm(inch) | 76.7 (3) | 43.00 (1.69) | |
| Mounting Depth mm (inch) | 9.3 (0.37) | 13.2 (0.52) | |
| Mounting Cutout | 69 (2.7) | 47.00 (2) | |
| Net Weight gr | 70 | 0.07 (0.15) |
| CROSSOVERS | MXR200.4 | MXR130 | MXR250.4i |
| Crossover Point | 2200Hz/12dB/6dB | W: 800Hz/12dB M: 800Hz/6dB 5000Hz/6dB T: 5000Hz/6dB | 2200Hz/12dB |
| Crossover Controls | Tweeter +/- 2dB | Tweeter 0/+2dB | Tweeter +/- 2dB |
| Wiring Options | N/A | N/ A | N/A |
