70456 150m
TosLink and Coaxial Digital Audio Extender
User Guide

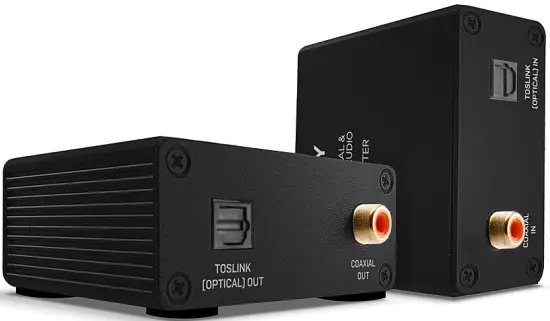

70456 150m TosLink and Coaxial Digital Audio Extender
Brand: Lindy
Product name: 150m TosLink & Coaxial Digital Audio Extender
Product code: 70456
- Extends TosLink (Optical) & coaxial digital audio up to 150m over network cable
- Supports stereo and multi-channel audio formats including Dolby Digital & DTS
- Supports PoC (Power over Cat Cable) from the transmitter to receiver
- Simultaneous audio output
150m Cat.6 TosLink (Optical) & Coaxial Digital Audio Extender
Lindy 150m TosLink & Coaxial Digital Audio Extender. Type: AV transmitter & receiver, Cable types supported: Cat5e, Cat6, Maximum transfer distance: 150 m. Connectivity technology: Wired, Digital audio optical input type: TOSLINK. Operating voltage (transmitter): 12 V, Current: 1.25 A. Receiver dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm, Receiver weight: 168 g, Transmitter dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm. Package width: 190 mm, Package depth: 60 mm, Package height: 145 mm
Features
| Type * | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Chipset | EL5171/ EL5172 |
| Audio formats supported | DTS, LPCM |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH & California Proposition 65 |
Ports & interfaces
| Connectivity technology * | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 1 |
| Digital audio optical in | 1 |
| Digital audio optical input type | TOSLINK |
| Digital audio optical out | 1 |
| DC-in jack |  |
Power
| Operating voltage (transmitter) | 12 V |
| Current | 1.25 A |
Operational conditions
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 5 – 90% |
Weight & dimensions
| Receiver dimensions (WxDxH) | 65.9 x 26.9 x 53.1 mm |
| Receiver weight | 168 g |
| Transmitter dimensions (WxDxH) | 65.9 x 26.9 x 53.1 mm |
| Transmitter weight | 168 g |
Packaging data
| Package width | 190 mm |
| Package depth | 60 mm |
| Package height | 145 mm |
| Package weight | 405 g |
| Package type | Box |
Packaging content
| AC adapter included | |
| Included power plug types | EU, UK, US |
| Manual | |
Technical details
| Sustainability certificates | RoHS |
