vita VA68895 Summerwood Arbor Installation Guide

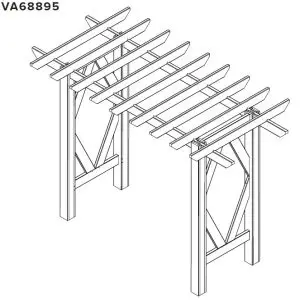

Summerwood Craftsman Arbor
GETTING STARTED
First off, allow us to say thank you for the investment you have made in our fine Arbor. This Arbor is designed to be assembled and installed ideally by two people with basic carpentry knowledge and tools. Do not attempt alone, especially during the installation stage. When assembling components, place on a non-abrasive surface (ie: shipping box) to avoid scratching. We recommend a 15’ x 15’ area for unobstructed assembling. You should not need to use excessive force when assembling any components.
TOOLS YOU WILL NEED
TOOLS YOU MAY NEED
CAUTION: DO NOT HANG OTHER MATERIALS OR OBJECTS FROM RAFTERS OR BEAMS.
Please take the time to read this instruction guide thoroughly prior to the construction of your arbor. If you have any questions, feel free to contact our technical dept by calling
North America: 1 800 282 9346 (Mon. to Fri. 8:00 A.M. to 5:00 P.M. EST). UK TEL: (44) 2038 687160 – Mon. to Fri. 1:00 P.M. to 10:00 PM GMT.

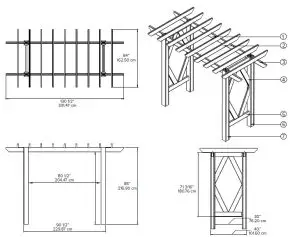

MATERIALS OVERVIEW
- 12010 – Beam (x2) 1 1/2” x 5” x 88” (3.81 x 12.7 x 223.52cm)
- 12011 – Rafter (x9) 1 1/4” x 5” x 64” (3.17 x 12.7 x 162.50cm)
- 12102 – Beam End (x4) 1 1/2” x 5” x 23 3/4” (3.81 x 12.7 x 60.32cm)
- 12014 – Brace (x8) 1 1/4” x 5” x 34” (3.17 x 12.7 x 86.52cm )
- 12015 – Rail (x4) 1 1/2” x 5” x 32” (3.81 x 12.7 x 81.28cm)
- 12013 – Right Post (x2) 5” x 5” x 85” (12.7 x 12.7 x 215.90cm)
- 12042 – Left Post (x2) 5” x 5” x 85” (12.7 x 12.7 x 215.90cm)

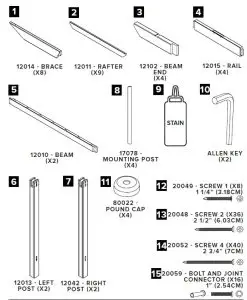

MATERIALS BREAK DOWN
Step 1

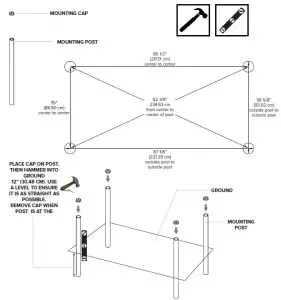

DISTANCE BETWEEN MOUNTING POST
Step 2

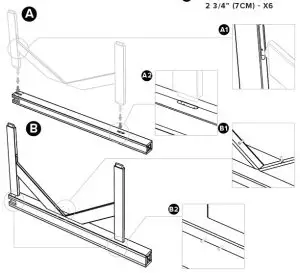

INSTALLING RAILS AND BRACES INTO POST
Please Note: Do not fully insert all screws. Wait till last step to adjust where needed, then screw fully!
Step 3

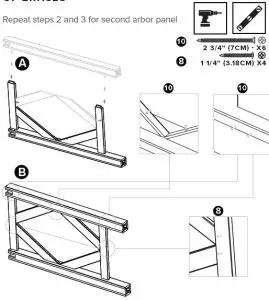

INSTALLING SECOND POST AND SECOND PAIR OF BRACES
Step 4

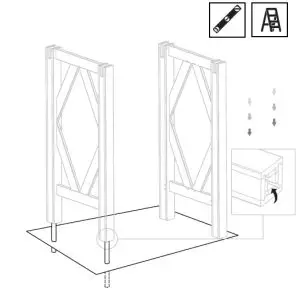

GUIDE ARBOR PANELS OVER INSTALLED MOUNTING POST
All screw heads need to be facing the inside of the arbor.
Step 5
BEAM AND BEAM ENDS ASSEMBLY/ ATTACHMENT
Step 6

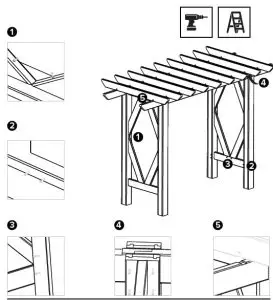

ATTACHING RAFTERS TO BEAM
Angle screws on both sides when drilling rafter into beam
Step 7
TIGHTEN ALL SCREWS ON BOTH SIDES
