USER’S MANUAL
Garden Arch Arbor
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

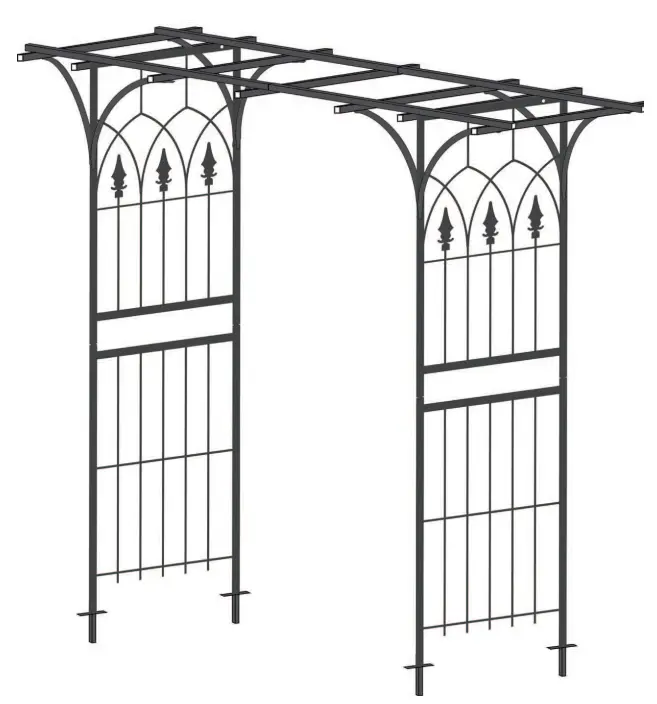

OP70523 Garden Arch Arbor
DEAR CUSTOMER,
Thank you for purchasing this product. Please read all the instructions in this manual carefully, before you assemble or use the product. Should you pass on this product to third
parties, please hand over the instruction manual along with it.

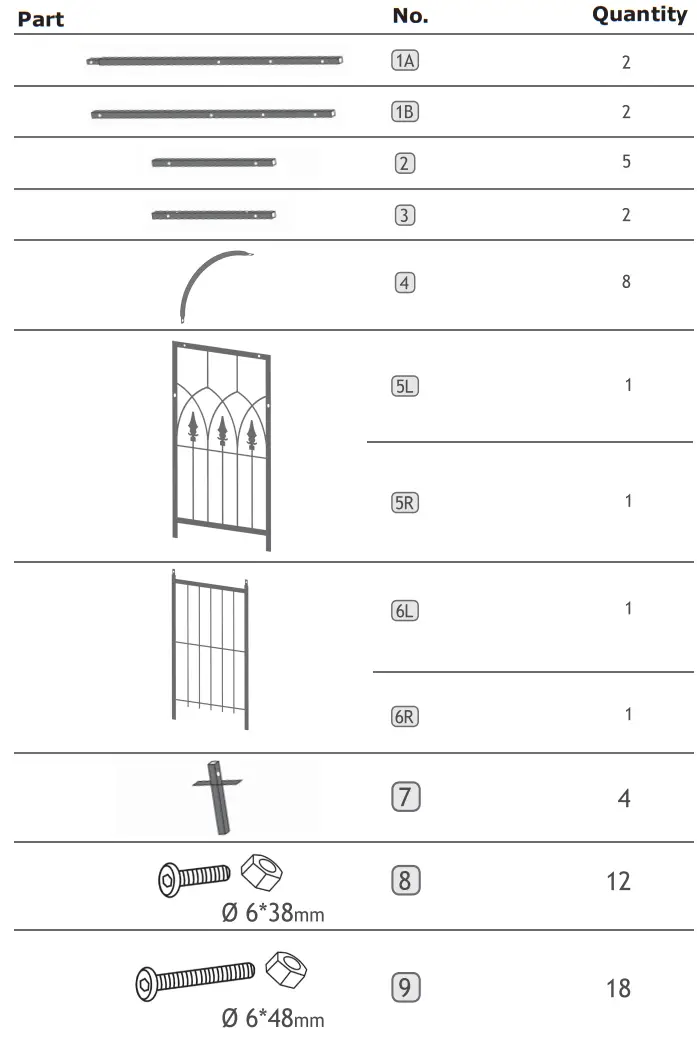

Part List

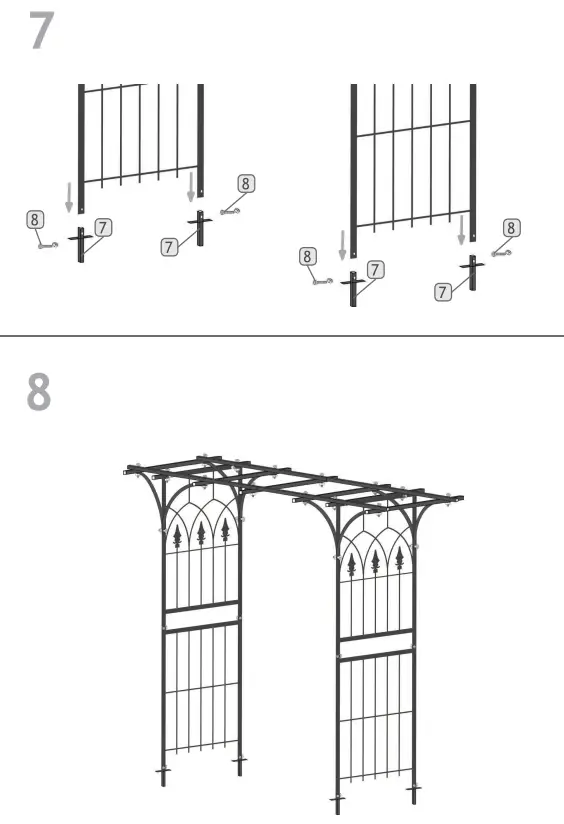

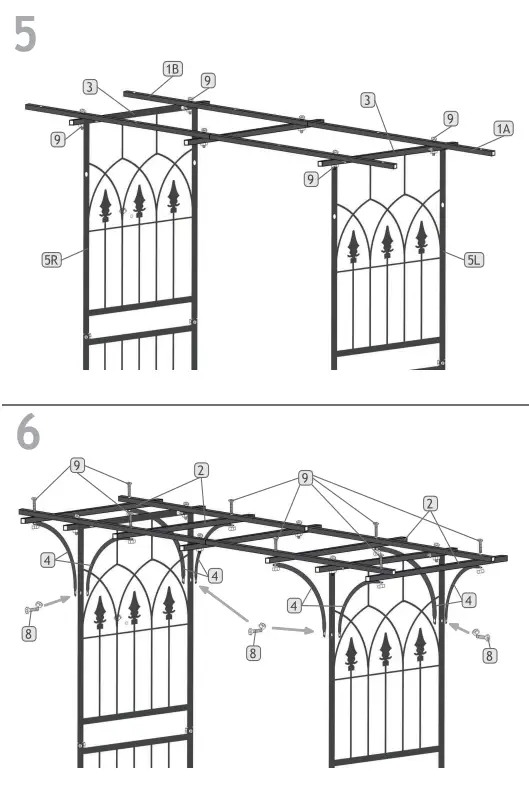

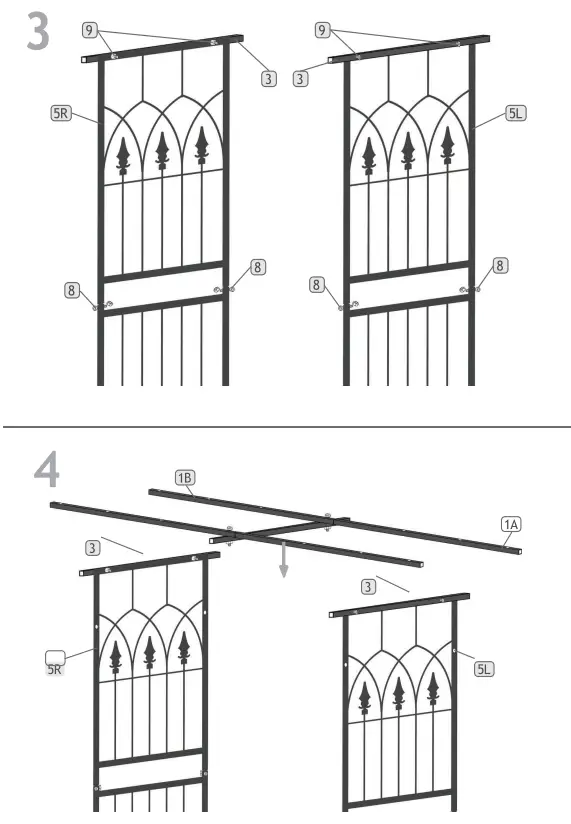

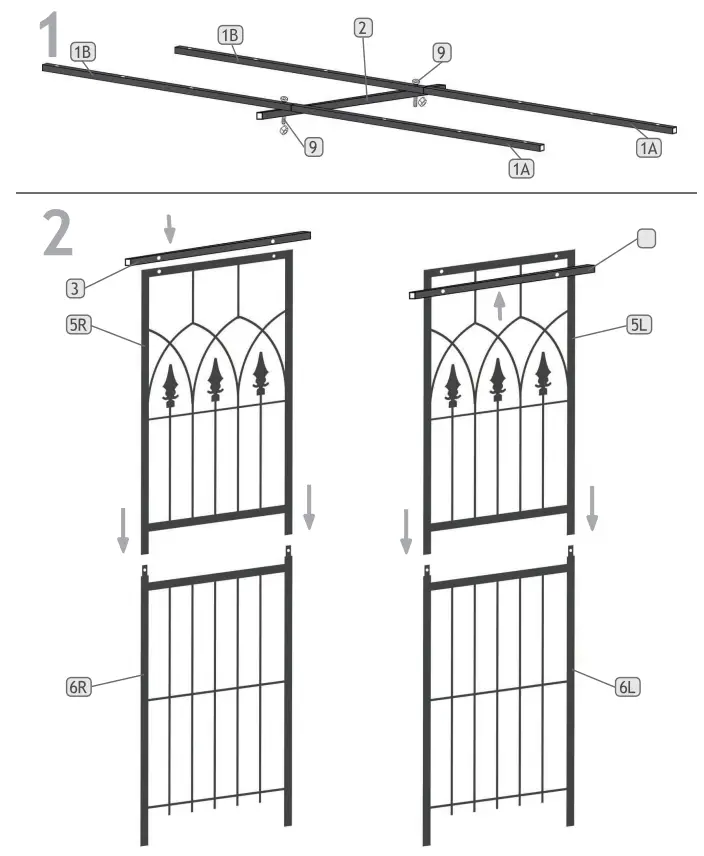

Assembly
Note: There will be some small gap between parts 5R and 6R, 5L and 6L after installation to make sure the installation process is much easier.
 |  |
 |  |
