Homlux Round Led Bathroom Mirror Instruction Manual

Round LED Bathroom Mirror
Instruction Manual

Instructions & Installation

Statement
Please read this instruction carefully before installation, and refer to it again during the installation to ensure a safe and correct installation of the mirror.

Compliance
All the electrical components used in this product are ETL LISTED. This product passed ETL certification.

Electrical Safety Instructions

INSTALLATION should be made by a qualified/registered electrician. DO NOT attempt to install it by yourself, as HOMLUX will not be responsible for any damage caused during installation.
According to IEEE regulations, this product is suitable for zone 2 and external zone, not zone O or zone 1. It is also not suitable for installation in saunas, steam rooms, or shower cubicles.
This product is only suitable for permanent installation, please do not plug in the power strip.
Please make sure to keep the electrical supply off during installation and maintenance. It is recommended to pull out the fuse or switch off the circuit breaker before installation to disconnect the necessary circuits.
HOMLUX LED mirror adopts three-pin plug and power leads must be connected to the ground wire.
DO NOT put hard and sharp materials directly against the mirror surface during operation, otherwise, it may result in current leakage and even personal injury accident. stormy
Never forget to turn off the power supply in days, otherwise, the electrical components of the product could be damaged.
DO NOT switch off the power supply directly during normal operation, otherwise, electric elements of the product may be easily damaged.
Please turn off the power supply if the product is not used for a long time.
DO NOT remove protective film or corner protectors until the mirror is completely installed.
PLEASE KEEP THIS MANUAL BOOK FOR FUTURE REFERENCE.

Wiring
HOMLUX supplies an about ft long power cable and U.S 3-pin plug for easy connection with a wall socket.
Optional to cut the plug directly and connect to electrical wiring if using the wall switch.

Cleaning
When the mirror has to be cleaned, please switch off the power first.
DO NOT use abrasives or solvents when cleaning.
DO NOT let water get in the mirror and submerge the mirror in water.
Wipe off all water spillages as soon as possible via a soft, damp cloth.

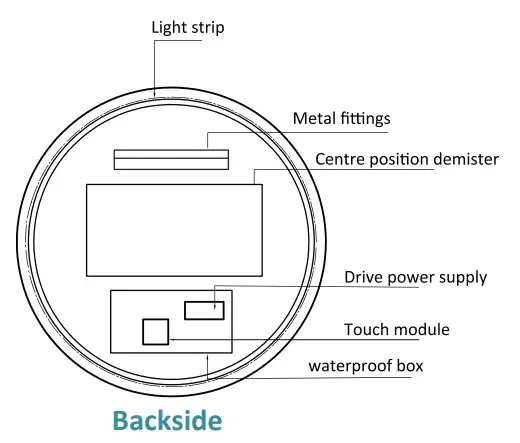

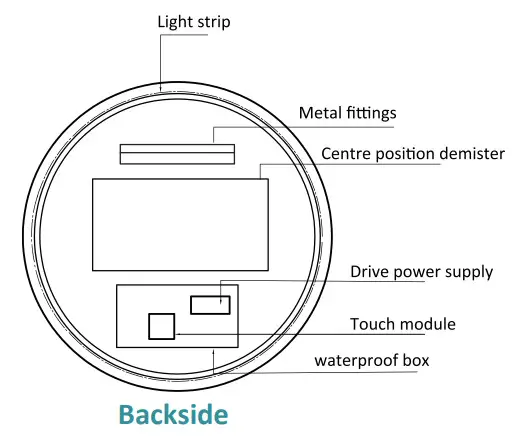

Specification

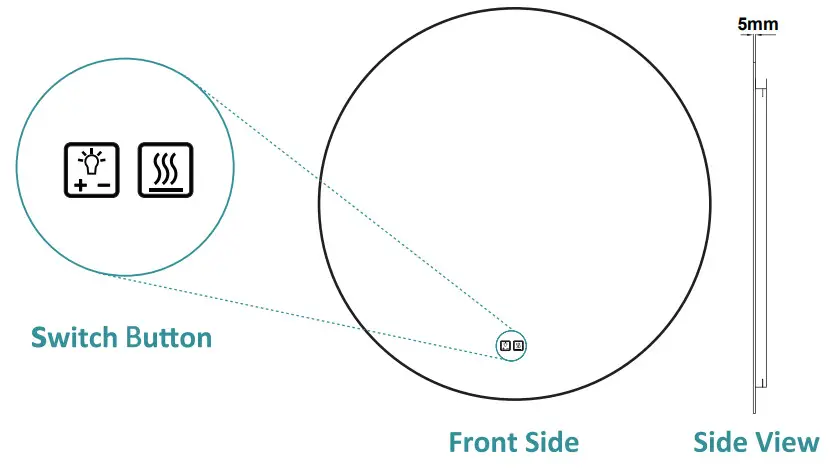

Operation Instructions —3000K-6000K

Light on/off
Power on, then press to turn the light on, the light is the warm light.
Then the second time press the light changed to white light. ,
The third time press the light change to warm white light. ,
Then press again to turn the light on.

Dimming instruction

Power on, pressto turn the light on, then press and hold ,the brightness will change accordingly.

Fog-free instruction
( For the led mirror with anti-fog function)

Power on, press, the mirror can be defogging.

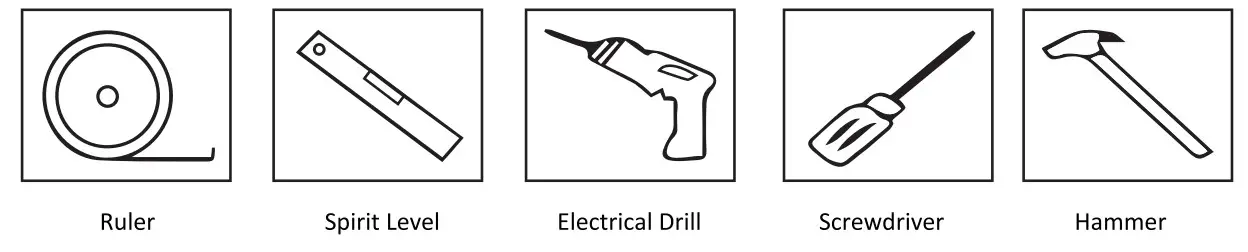

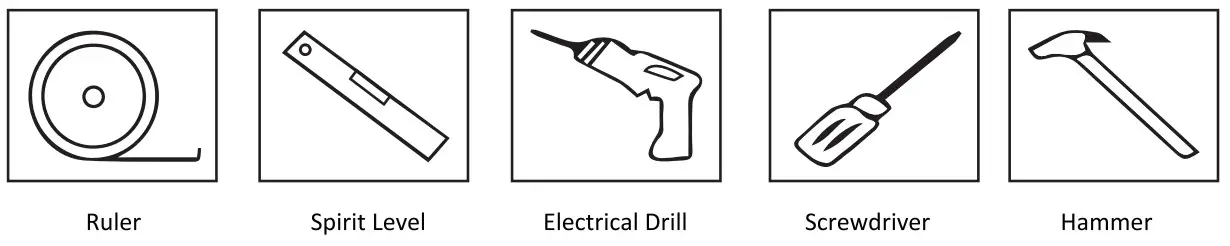

Installation

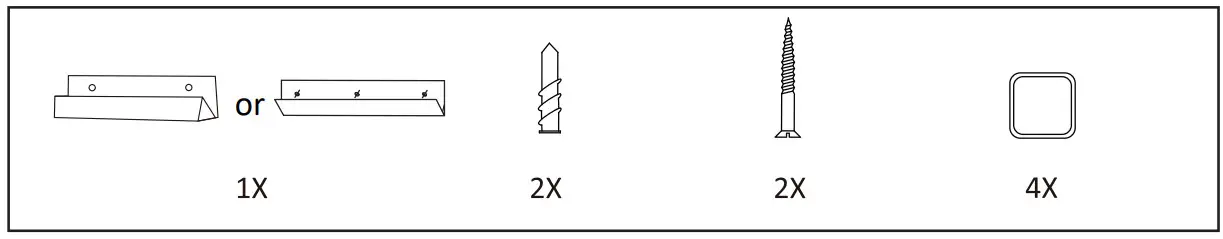

Parts List

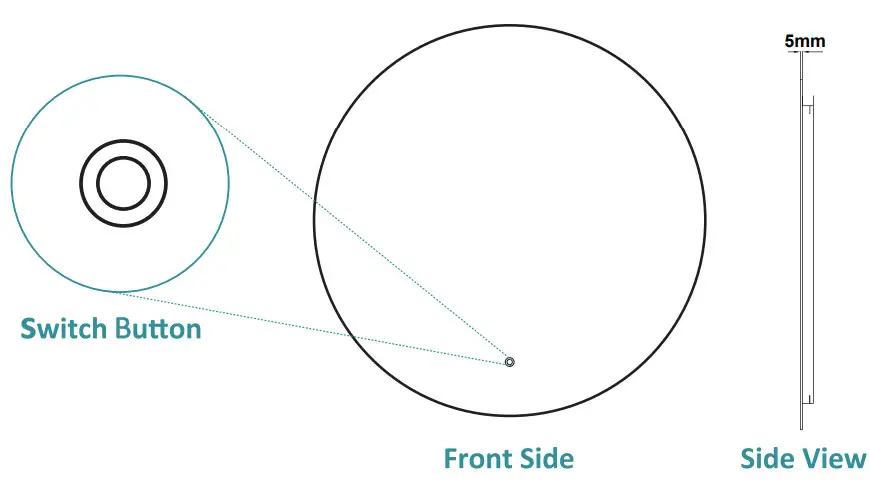

Operation Instructions —6000K-6500K

Light on/ off
Power on, then press to turn the light on, the light is white light.
Then press again to turn the light off.

Dimming instruction

Press and holdPower on, press to turn the light on, then the brightness will change accordingly.

Fog-free instruction
( For the led mirror with anti-fog function)

Power on, press, and the mirror can be defogging.

Installation

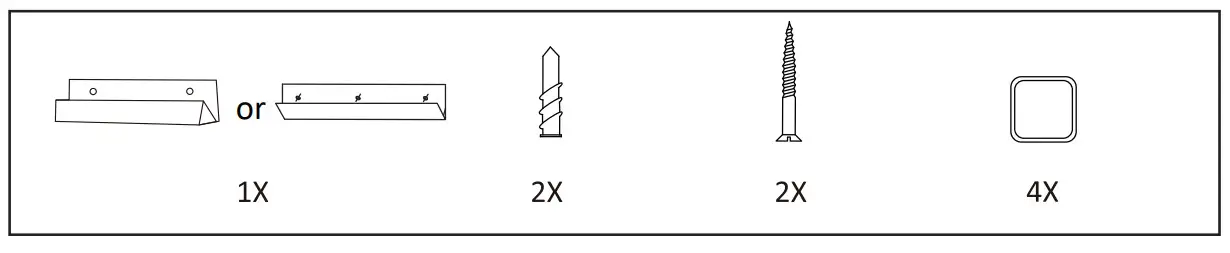

Pasts List

Step 1 (You will receive one of the following two aluminum strips, both ready to install)
Measure the distance between two holes on the aluminum strip.

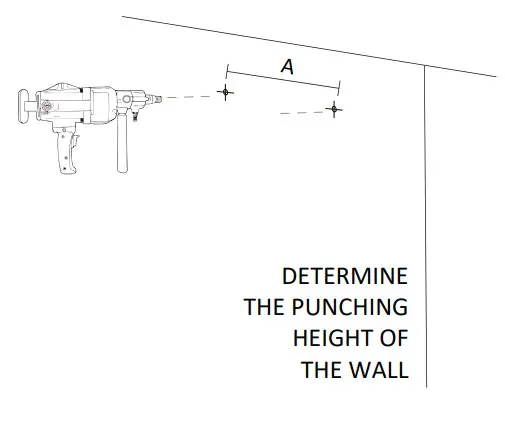

Step 2
According to the distance from A, choose a suitable height and punch two holes in the wall.

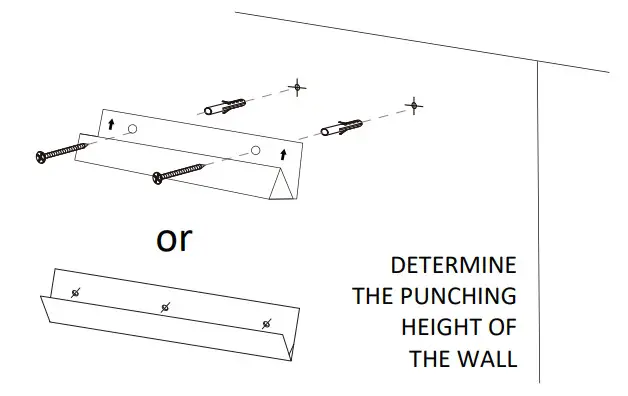

Step 3
Drive the expansion plug into the hole on the wall and then put the screw into the expansion plug to fix the aluminum strip on the wall.

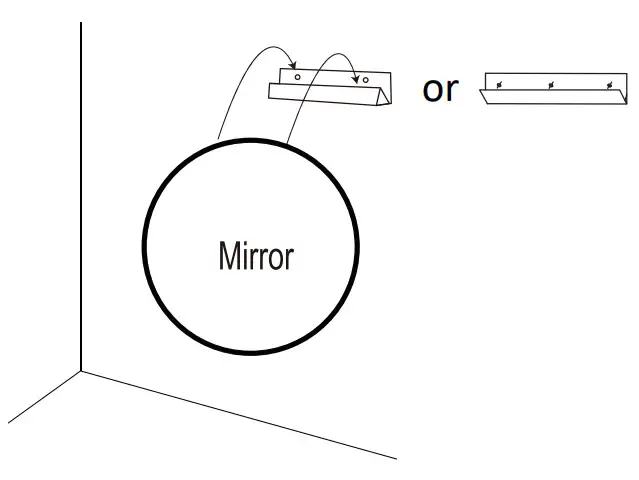

Step4
Hang the mirror on the wall

*** About the wire connection ***

There are two ways to connect the circuit for the mirror.

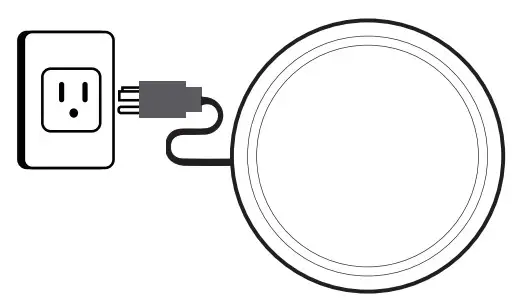

Connection way 1: Plug the 3-pin plug in the socket on the wall.

Connection way 2: Cut of the plug, and connect the mirror’s wire to the wall switch’s wire. (Recommend installation by a professional electrician)

https://youtu.be/aMxfUuy6w2o

Thanks for choosing HOMLUX
Web: www.homluxproducts.com
Any queries, please feel free to email our service team: [email protected]
Scan the QR code to watch the video of the installation.

AFTER-SALES
SERVICE CARD

We sincerely thank you for trusting our service and our products, and may this product add enrichment to your home. We guarantee that the product has undergone strict quality inspection and meticulous packaging. If you encounter any issue regarding either shipping or the product, please feel free to contact us at any time. We’d be more than happy to serve you wholeheartedly. Yours Sincerely

• Please clean with a damp cloth and wipe dry.
• Please avoid harsh, corrosive and abrasive cleaners.
• Keep dry and avoid damp environments.

Customer Service: ( 800) 209- 3199 (MON -FRI 9:00am-5:00pm
Eastern Time) or [email protected]
Address: 100 Pottery Road, Commerce, GA 30529

If you have any questions or concerns, please feel free to contact us.
We’re committed to providing our customers with quality service.

LED Wall-Mounted Mirror
