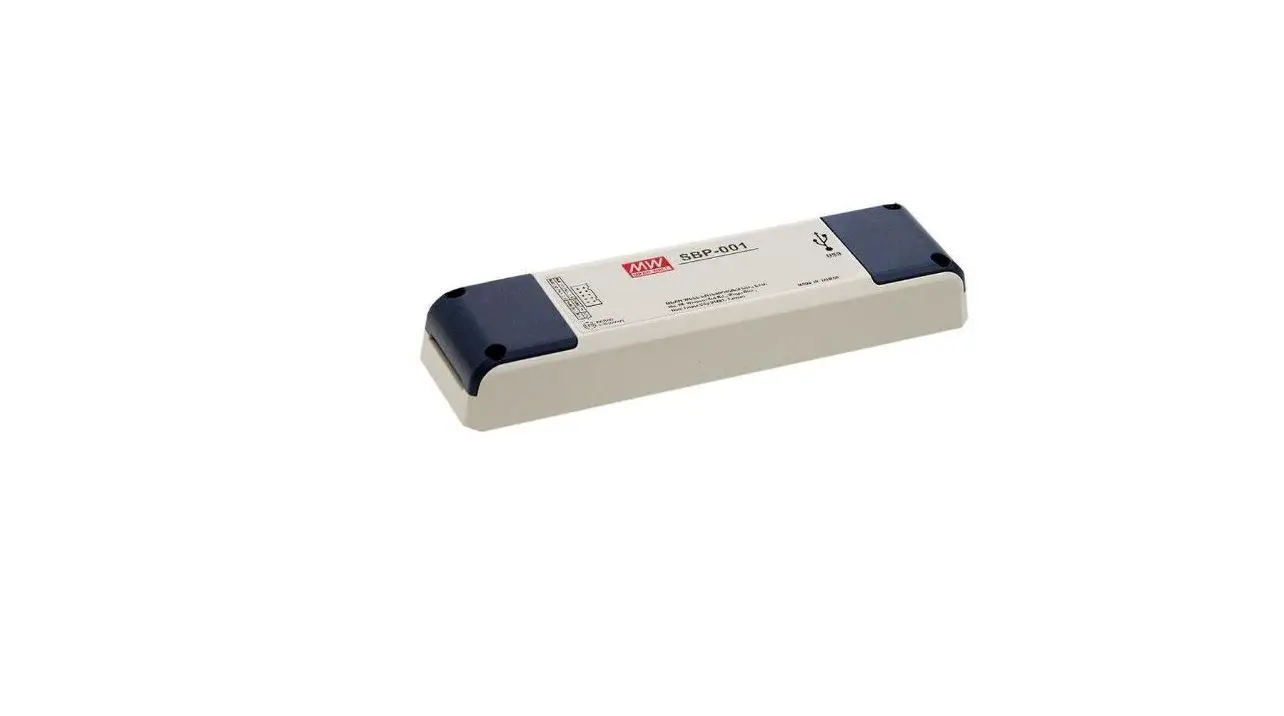

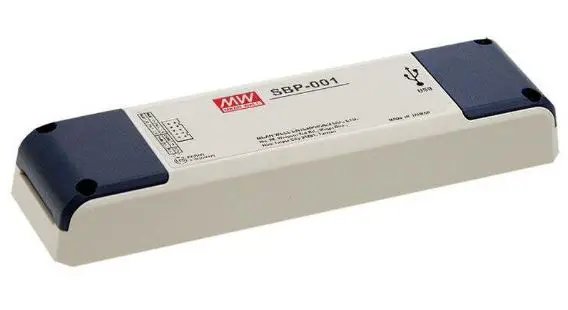

MEAN WELL SBP-001 Intelligent Battery Charging Programmer
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
Features
TPTC004 IEC62368-1
- For MEAN WELL’s intelligent battery chargers, Charging curve programmable suitable for models:
- ENC-120/240/360
- NPB-450/750/1200/1700
- DRS-240/480
- HEP-1000.HEP-2300-55
- RPB/RCB-1600
- DBU/DBR-3200
- Simple connection and configuration
- No need of battery or AC power
- LED status indicator
- Communication cables of SBP#1,SBP#2,SBP#3,SBP#4 included (USB cable Type A – Mini USB is not included)
Description
BP-001 is a programmer, particularly for MEAN WELL’s various programmable battery charger models to program the parameters of charging curves, such as constant current (CC), constant voltage (CV), float voltage (FV) and tapper current (TC), tapper current(TC) and so on, to accommodate the diversified battfor simplicity and convenience, users can easily configure MEAN WELL’s intelligent battery chargersery specification in industry. With the design accounting with SBP-001 programmer and the computer; all of the setups are able to be finished easily by the means of the specific software.

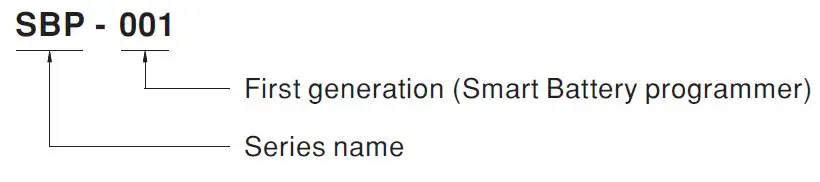

Model Encoding
SPECIFICATION
| MODEL | SBP-001 | |
|
FUNCTION | COMM. PC INTERFACE | Mini USB |
| COMM. PROGRAMMING INTERFACE | PMBus, CANBus, UART | |
| LED INDICATOR | Green: 3.3V interface Orange: 5V interface | |
| PROGRAMMING VOLT. | 5V and 3.3V, for programming purpose only. Total 0.5W(max.) | |
|
ENVIRONMENT | WORKING TEMP. | 0~ +40℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -10 ~ +50℃, 10 ~ 95% RH non-condensing | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1 CB, EAC TP TC 004 approved |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 3103.9K hrs min. Telcordia SR-332 (Bellcore) ; 312.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 165*46*23mm (L*W*H) | |
| PACKING | 0.12Kg; 84pcs/11Kgs/1.81CUFT | |

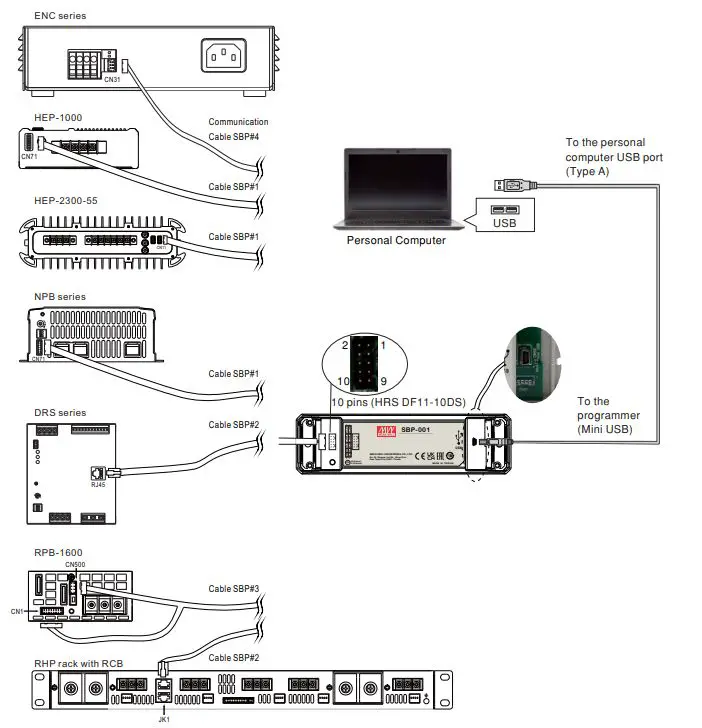

Smart Programmer Connection

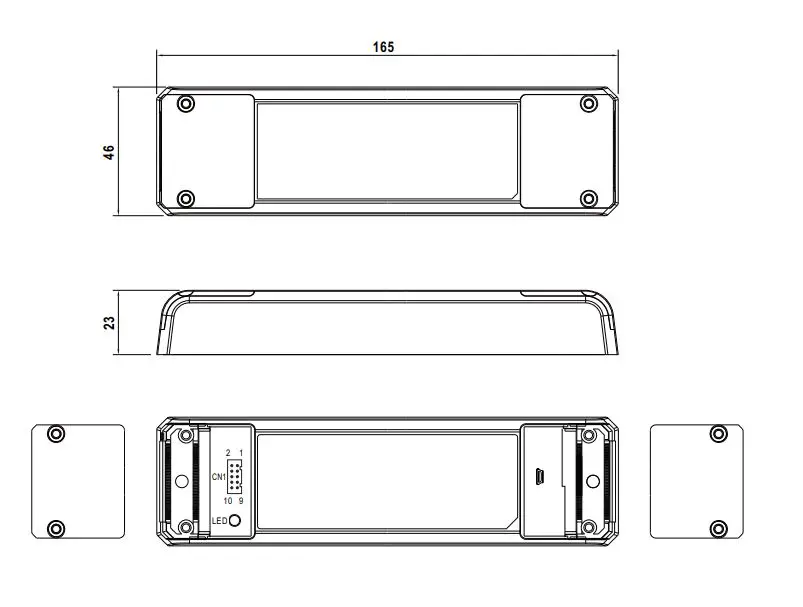

Mechanical Specification
Control Pin No. Assignment (CN1) : HRS DF11-10DP-2DSA or equivalent
| Pin No. | Assignment | Pin No. | Assignment | Mating Housing | Terminal |
| 1 | UART_RX | 6 | CANL |
HRS DF11-10DS or equivalent |
HRS DF11-**SC or equivalent |
| 2 | UART_TX | 7 | 5V | ||
| 3 | PMBUS_D | 8,10 | GND | ||
| 4 | PMBUS_C | 9 | 3.3V | ||
| 5 | CANH |
SBP#1 communication cable
SBP#2 communication cable

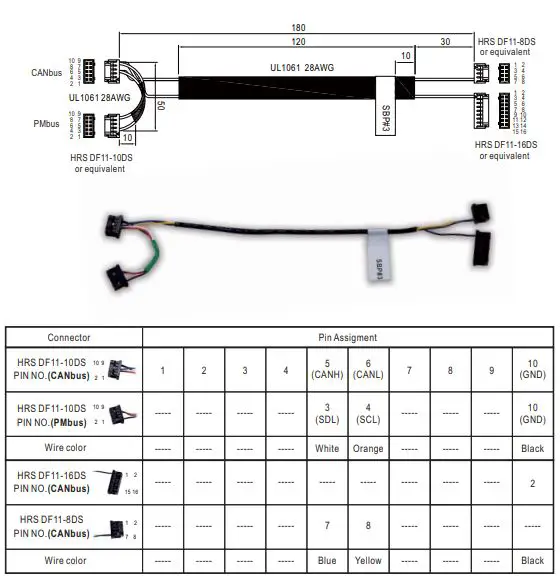

SBP#3 communication cable
SBP#4 communication cable
Charger VS Communication Cable
| MW’s charger | Communication Cable | |
| Series name | Connector | |
| ENC-120/180/240/360 | CN31 | SBP#4 |
| RCB-1600 | JK1 | SBP#2 |
| RPB-1600 | CN1, CN500 | SBP#3 |
| DBR-3200 | JK1 | SBP#2 |
| DBU-3200 | CN1, CN500 | SBP#3 |
| HEP-1000 | CN71 | SBP#1 |
| HEP-2300-55 | CN11 | SBP#1 |
| NPB-450/750/1200/1700 | CN71 | SBP#1 |
| DRS-240/480 | RJ45 | SBP#2 |
