HALO HZ-1007-ANA Elite1B Countertop Griddle Instructions
WARNING
The manufacturer has made every effort to eliminate any sharp edges. However, you should handle all components with care to avoid accidental injury.
NOTICE: Before assembly, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the appliance. Contact customer service for replacement parts at 1-833-572-1688.
NEED MORE INSTRUCTIONS?
Scan for registration, assembly videos, care + use, warranty, recipes, + more.
Scan for registration, assembly videos, care + use, warranty, recipes, + more.
BATTERY NOT INCLUDED. Requires 1 AA battery for igniter.
Contents hide
ASSEMBLY INSTRUCTION

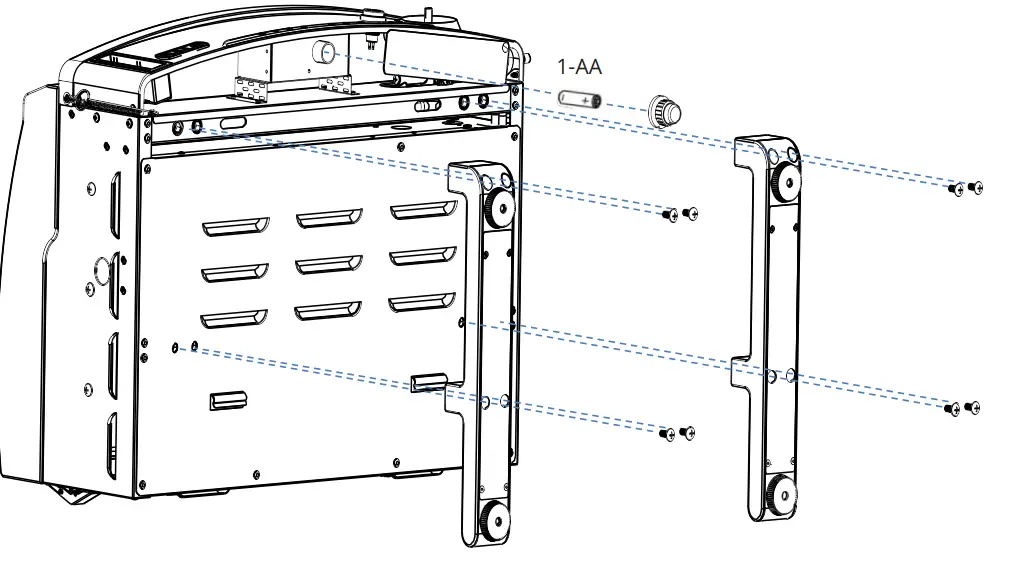

Attach legs using eight (8) M6 x 15 mm screws. Insert one AA battery into the igniter module.
NOTE: Peel off igniter cap sticker before first use

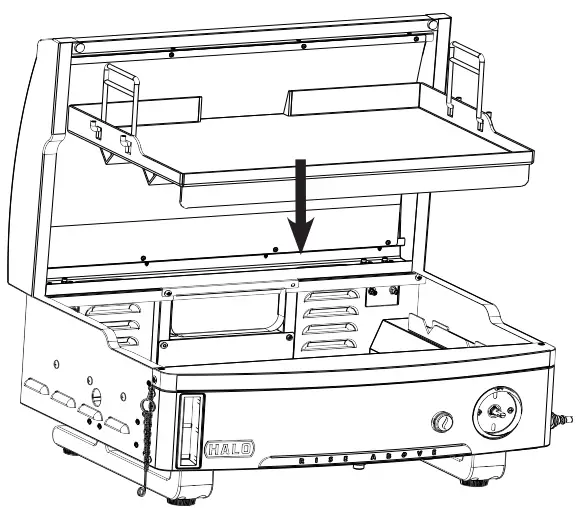

Install the griddle plate
Install lid handle using two (2) M6 x 15 mm screws. Install control knob and leveler

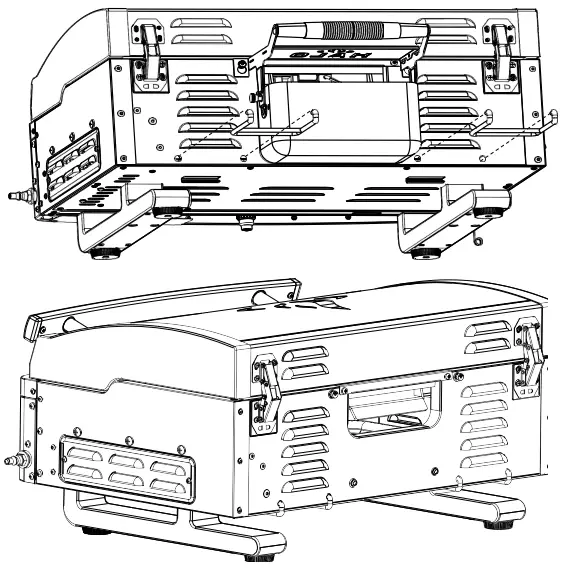

Install “JJ” hook handles at the back of the unit. “JJ” hooks will snap in to lock in place

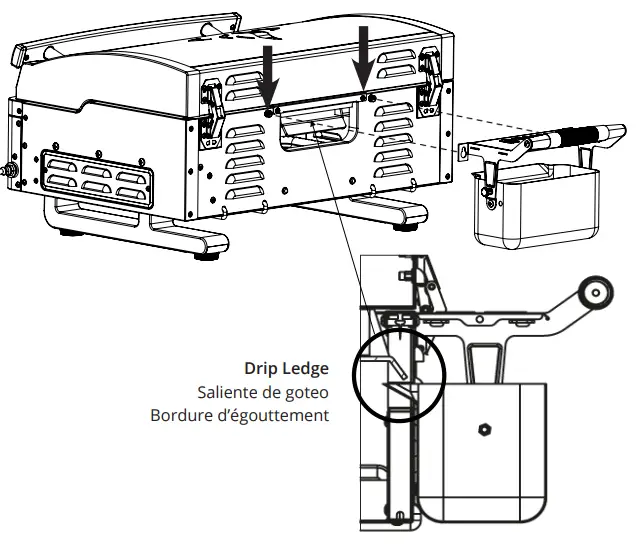

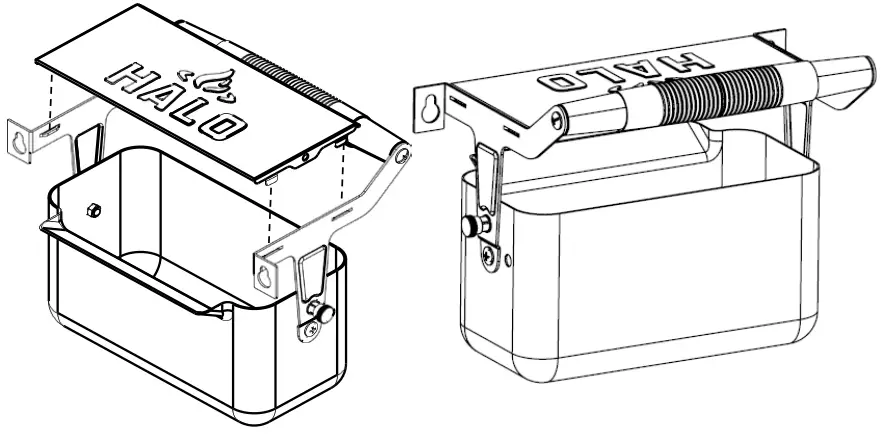

Install grease cup cover plate by aligning 4 tabs on the cover plate with the lanced tabs on the grease cup to secure the cover in place. Install the grease cup
NOTE: Make sure the lip of the grease cup is positioned under the griddle drip ledge when installing the grease cup to avoid grease leakage.
