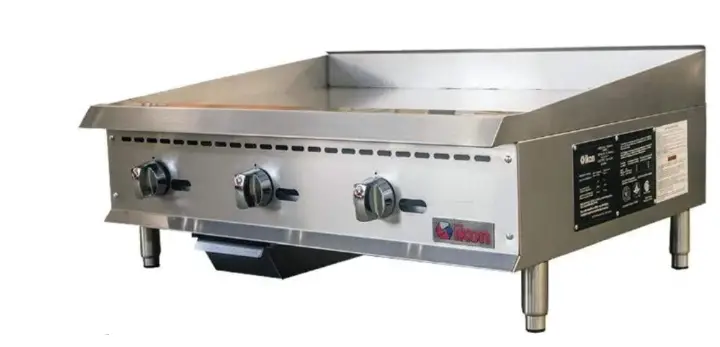

PATRIOT Gas Countertop Griddle
Gas Countertop Griddle
Patriot’s gas countertop griddles are designed for use with either natural or LP gas. Constructed of a stainless steel front with galvanized sides. These units are able to stand the toughest of kitchen environments. Each unit includes tips for field conversion to LP.
Specifications
- Stainless steel front bullnose design
- Fully welded stainless steel backsplash for extra durability
- 30,000 BTU per burner
- One U-shape burner for every 12″ griddle width
- Griddle plate is made up of 3/4″ thick steel
- 3″ wide grease trough for easy cleaning
- 4″-5 1/2″ adjustable legs
- Separate gas valves for each burner with
- standing pilot ignition system
- Removable stainless steel drip tray for easy cleaning
- 3/4″ rear NPT gas inlet
Approvals
- CSA Certification
- CSA Sanitation, NSF/ANSI 4

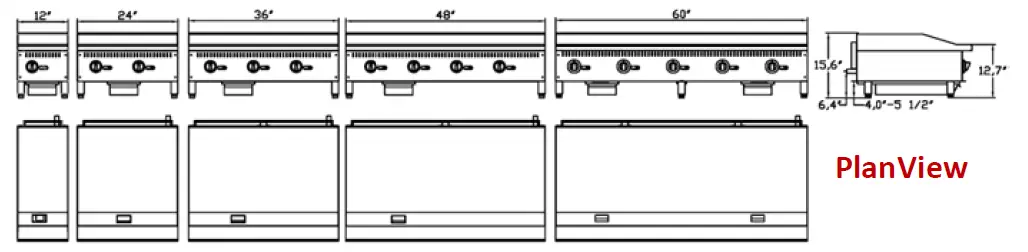

Planview
Specifications
| Model Number | Burners | Total BTU | Net Weight(lb) | Gross Weight(lb) |
| PT-G12-M | 1 | 30,000 | 98 | 121 |
| PT-G24-M | 2 | 60,000 | 156 | 203 |
| PT-G36-M | 3 | 90,000 | 220 | 285 |
| PT-G48-M | 4 | 120,000 | 285 | 361 |
| PT-G60-M | 5 | 150,000 | 340 | 467 |
Shipping Information
| Model Number | Cubic feet | Dimensions (inch) |
| PT-G12-M | 5.88 (0.17cubic meter) | W15 3/4” * D33 1/2” * H19 1/2” |
| PT-G24-M | 10.29 (0.29cubic meter) | W27 1/2” * D33 1/2” * H19 1/2” |
| PT-G36-M | 14.75 (0.42cubic meter) | W39 1/2” * D33 1/2” * H19 1/2” |
| PT-G48-M | 19.12 (0.54cubic meter) | W51 1/4” * D33 1/2” * H19 1/2” |
| PT-G60-M | 23.60 (0.67cubic meter) | W63” * D33 1/2” * H19 1/2” |
Warranty
Patriot warrants this product to be free of defects in materials and workmanship for a period of 1 year from the date of purchase.
