UDM-Pro Quick Start Guide

Package Contents

UBIQUITI UDM-Pro UniFi Dream Machine Pro

System Requirement

Either of the following is required:

  • iOS or Android™ Mobile Device with UniFi Network App Installed
  • Web Browser: Google Chrome (Other browsers may have limited functionality)
    IMPORTANT: We strongly recommend using UPS backup and power regulation to prevent equipment damage due to stability issues with local AC power.

Hardware Overview

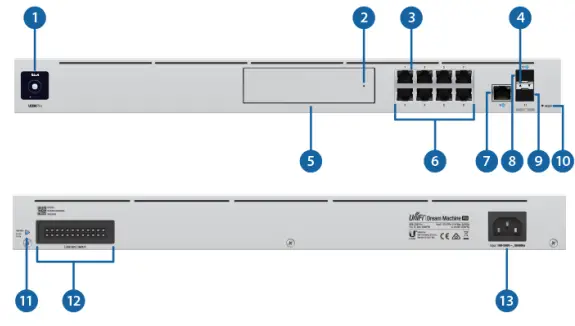

UBIQUITI UDM-Pro UniFi Dream Machine Pro -

Bootup AnimationInitializing.
Location AnimationThis indicates that you clicked Locate in the UniFi Controller software. The software will also display the location of the device on the map.
HDD LED
Flashing WhiteIndicates Read/Write Activity
Steady AmberIndicates HDD Error
RJ-45 Speed/Link/Activity LED (Ports 1 – 9)
OffNo Link
AmberLink Established at 10/100 Mbps
Flashing Indicates Activity
GreenLink Established at 1 Gbps
Flashing Indicates Activity
SFP+ Speed/Link/Activity LED (Ports 10 – 11)
OffNo Link
GreenLink Established at 1 Gbps
Flashing Indicates Activity
WhiteLink Established at 10 Gbps
Flashing Indicates Activity
HDD Bay
Install a 3.5″ or 2.5″ HDD (not included) to use the device as an NVR for UniFi Protect.
RJ45 LAN (Ports 1 – 8)
The RJ45 ports support 10/100/1000 Ethernet connections. By default, they are set to DHCP Server with the fallback IP address, 192.168.1.1/24.
RJ45 Internet (Port 9)
The RJ45 port supports a 10/100/1000 Ethernet connection. Set to DHCP Client by default.
SFP+ Internet (Port 10)
The SFP+ port supports a 1/10G Ethernet connection. Set to DHCP Client by default.
SFP+ LAN (Port 11)
The SFP+ port supports a 1/10G Ethernet connection. By default, it is set to DHCP Server with the fallback IP address, 192.168.1.1/24.
Reset Button
Resets to factory defaults. The device should be running after bootup is complete.
Press and hold the Reset button for about 10 seconds until the display indicates that the device has reset itself. After a few seconds, the LED will turn off, and the device will automatically reboot.
USP RPS LED
USP Connect DC Input
Reserved for future use.
Power Port
Connect the included Power Cord to the Power port.

Installation Requirements

  • Phillips screwdriver
  • Standard-sized, 19″ wide rack with a minimum of 1U height available
  • For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
  • For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
    We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with an industrial-grade shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
    UBIQUITI ES 16 XG EdgeSwitch - Note: Although the cabling can be located outdoors, the UDM-Pro itself should be housed inside a protective enclosure.

Installing an HDD

Ensure the device is powered off before you install the 3.5″ or 2.5″ HDD (not included).

  1. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD

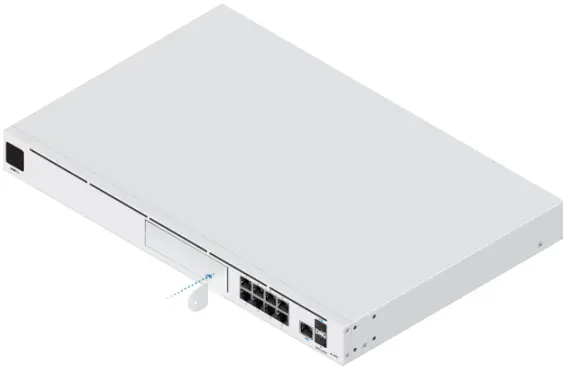

  2. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 2

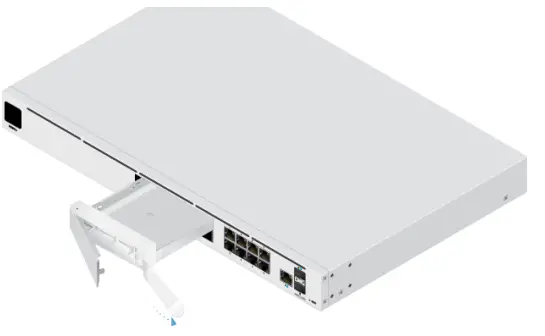

  3. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 3
  4. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 4UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 5

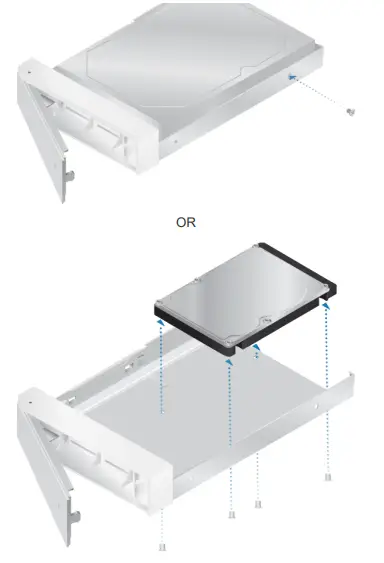

  5. UBIQUITI UDM-Pro UniFi Dream Machine Pro -Installing an HDD 6

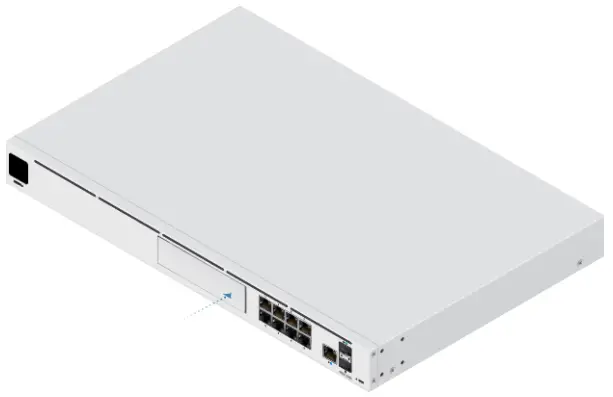

UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 7

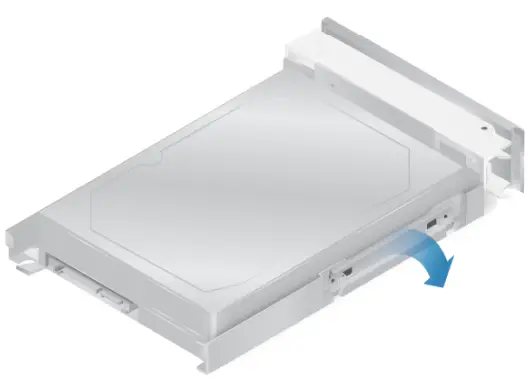

  1. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD 8

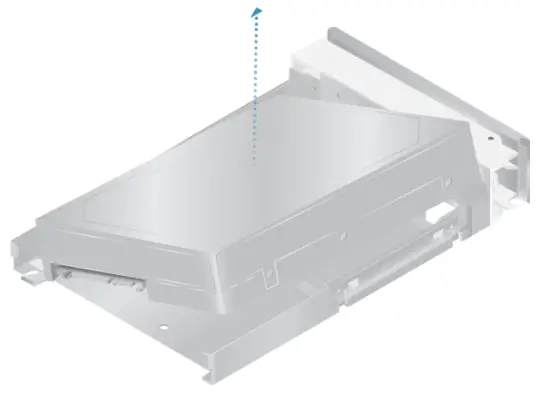

  2. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Installing an HDD9

Hardware Installation

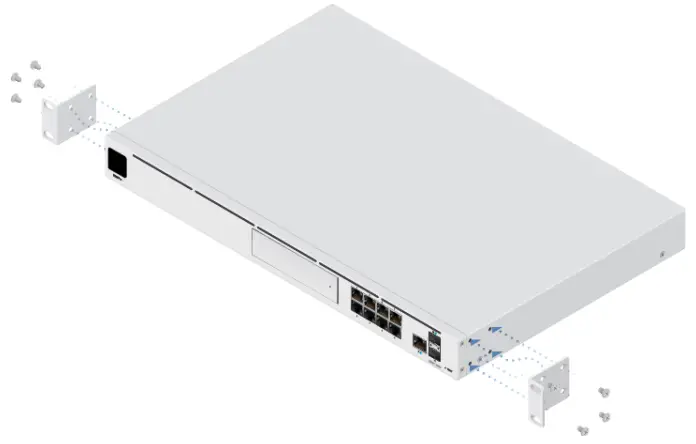

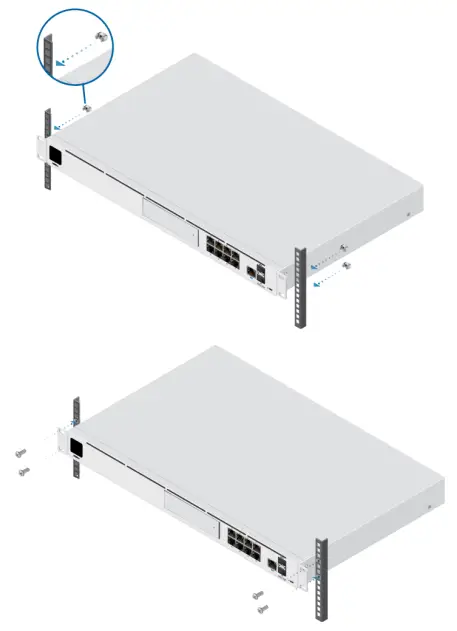

  1. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation

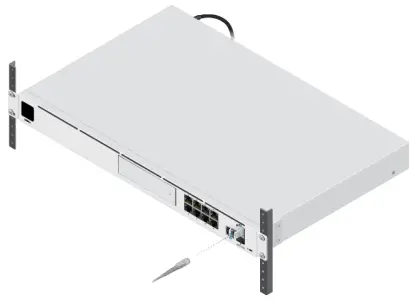

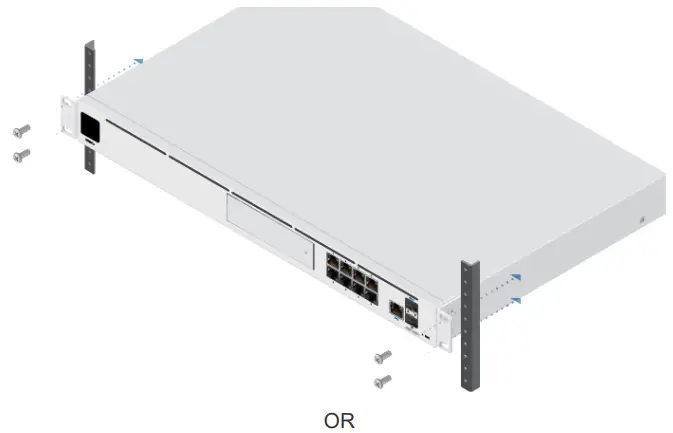

  2. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation2UBIQUITI UDM-Pro UniFi Dream Machine Pro -Hardware Installation 3

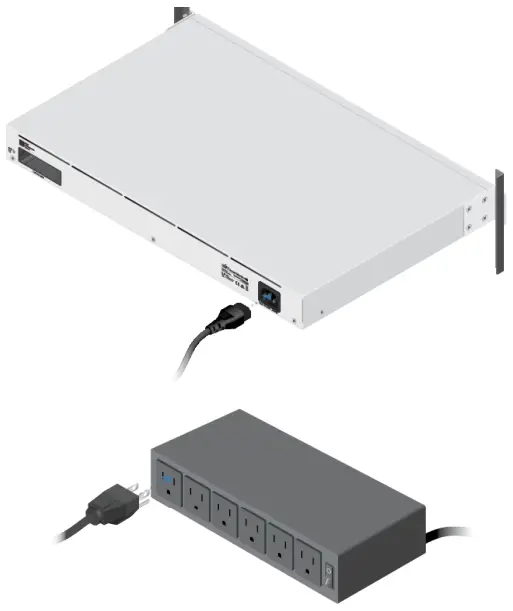

Connecting Power

UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation4

Connecting to the Internet

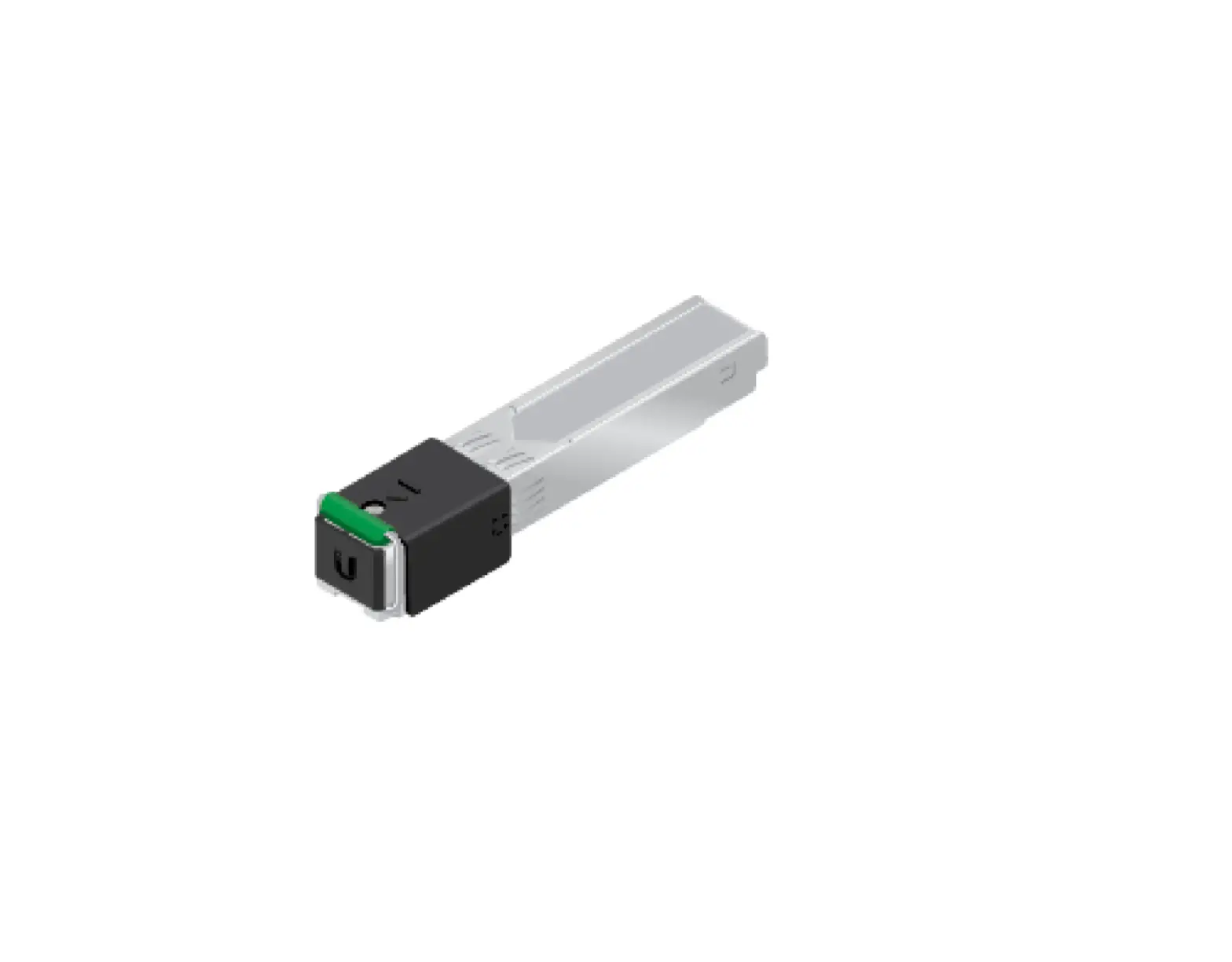

For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility

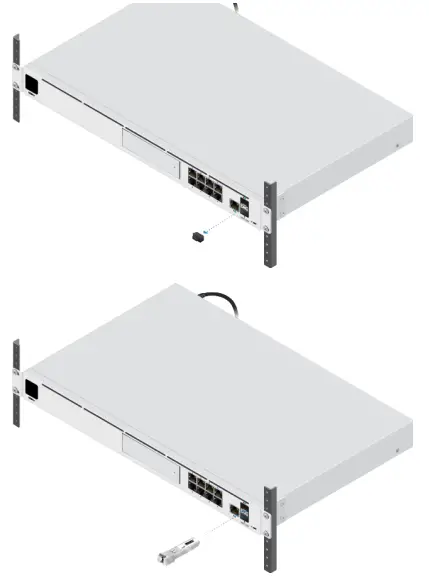

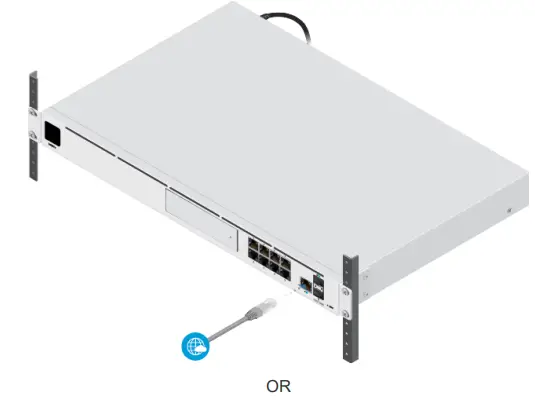

UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation 5UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation6UBIQUITI UDM-Pro UniFi Dream Machine Pro - Hardware Installation7

Connecting to the LAN

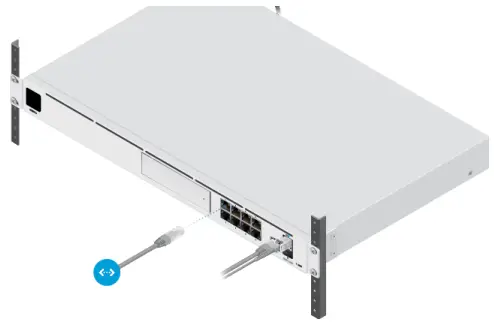

  1. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Connecting to the LAN
  2. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Connecting to the LAN2

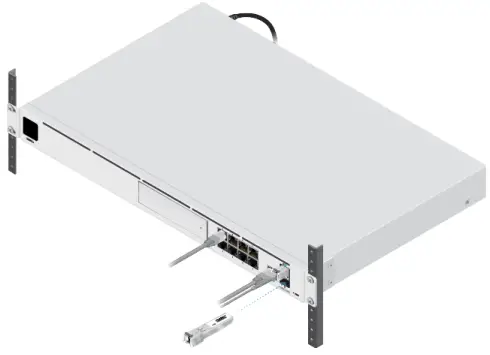

  3. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Connecting to the LAN3

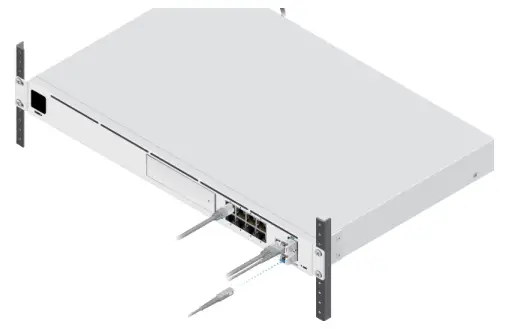

  4. UBIQUITI UDM-Pro UniFi Dream Machine Pro - Connecting to the LAN4

Configuration

You have the following options:

  • Enable Bluetooth on your mobile device and use the UniFi Network app.
  • Use a computer connected to the UDM-Pro on a LAN port. Go to “Chrome Instructions”.

UniFi Network App

  1. UBIQUITI UDM-Pro UniFi Dream Machine Pro - UniFi Network App

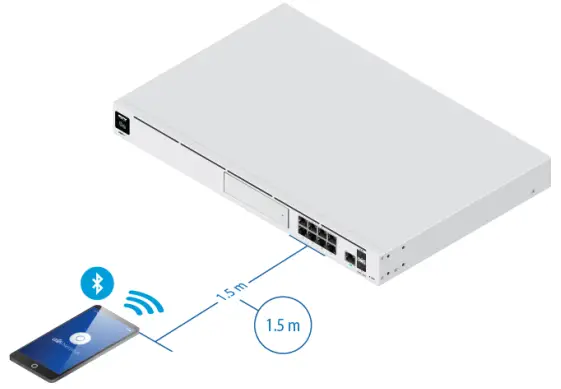

  2. UBIQUITI UDM-Pro UniFi Dream Machine Pro - UniFi Network App2
  3.  Follow the on-screen instructions.

Chrome Instructions

Use the Chrome web browser to set up your device.

  1.  Ensure that your host system is on the same Layer 2 network as the UDM-Pro.
    UBIQUITI UDM-Pro UniFi Dream Machine Pro - UniFi Network App 5
    https://setup.ui.com
  2. Follow the on-screen instructions of the Setup Wizard.
    After you run the UniFi Setup Wizard, a login screen will appear for the UniFi Network Controller management interface. Enter the Username and Password that you created in the UniFi Setup Wizard. Then click Sign in.
    UBIQUITI UDM-Pro UniFi Dream Machine Pro - UniFi Network App6

You can manage your network and view network statistics using the UniFi Network Controller management interface. For information on using the UniFi Network Controller software, refer to the User Guide located on our website at: ui.com/download/unifi

Specifications

UDM-Pro
Dimensions442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24″)
Weight
With Mount Brackets
3.90 kg (8.60 Ib)
3.99 kg (8.80 Ib)
Interfaces Networking
Management
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Ports
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port
Ethernet In-Band (1) Bluetooth BLE
Max. Power Consumption33W
Power Method(1) Universal AC Input, 100 to 240VAC
(1) RPS DC Input
Power SupplyInternal 50W/12V
Supported Voltage Range100 – 240VAC
Display1.3″ Color Touch Panel
LED
System
HDD RJ45 SFP+
Status
Activity
Link/Speed/Activity
Link/Speed/Activity
ProcessorQuad ARM Cortex-A57 core at 1.7 GHz
System Memory4 GB DDR4
On-Board Rash Storage16 GB eMMC
Operating Temperature-10 to 40° C (14 to 104° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC

Safety Notices

  1. Read, follow, and keep these instructions.
  2. Heed all warnings.
  3. Only use attachments/accessories specified by the manufacturer.
    UBIQUITI ES 16 XG EdgeSwitch - WARNING WARNING: Do not use this product in a location that can be submerged by water.
    UBIQUITI ES 16 XG EdgeSwitch - WARNING WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

  1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
  3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
    a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
    b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
    c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
    d. Protective earthing is provided by a Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
    e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.
    This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area are likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
    This radio transmitter has been approved by FCC.

ISED Canada

CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: operation of the device.
This radio transmitter has been approved by ISED Canada.

IMPORTANT NOTE

Radiation Exposure Statement
This equipment complies with radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Australia and New Zealand

UBIQUITI ES 16 XG EdgeSwitch - Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment, this equipment may cause radio interference.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

ERA SL2KITA Wireless Solar Siren Alarm Kit Red Lens - icon c

Country List

ATBEBGCYCZDEDKEEELESFIFRHRHU
IEITLVLTLUMTNLPLPTROSESISKUK

BFWA (Broadband Fixed Wireless Access) members noted in blue

UBIQUITI ES 16 XG EdgeSwitch - Note: This device meets Max. TX power limit per ETSI regulations.
The following applies to products that operate in the 5 GHz frequency range:
UBIQUITI ES 16 XG EdgeSwitch - Note: This device is restricted to indoor use only when operating in the 5150 – 5350 MHz frequency range within all member states.
Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm.
UBIQUITI ES 16 XG EdgeSwitch - Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states.
Other countries listed may use the 5.8 GHz, frequency band.

WEEE Compliance Statement
Declaration of Conformity
Online Resources

UBIQUITI UDM-Pro UniFi Dream Machine Pro - Online Resources
