Sundstrom Sr 584 Welding Shield Instruction Manual

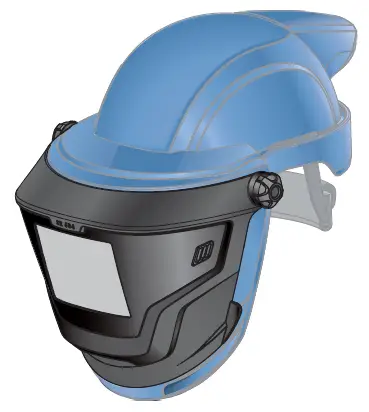

Sundstrom SR 584 Welding Shield

General information

System description
The Sundström SR 584 welding shield is intended for use together with the Sundström SR 580 Helmet with visor and with the Sundströms battery-powered fan SR 500/SR 700 or compressed air attachment SR 507.

Applications
The SR 584 in combination with the SR 580 and fan/compressed air is designed specifically for protection against harmful gases, radiation and spatter during welding, flame cutting, grinding and similar work. The design of the combination makes it usable for work in confined and inaccessible areas.

Warnings Limitations

• Change the lens immediately if it is found to be damaged.
• Materials that come into contact with the user’s skin may give rise to allergic reactions if the user is sensitive.
• The outer, hinged holder for protective lens must be fully lowered while work is in progress.
• If the welding shield is equipped with a toughened mineral glass lens, a protective lens should be fitted on the inside of it.
• Damaged or scratched occulars must immediately be replaced.

Limitations

• Check that the welding filter have the correct scale number for your work.
• The welding shield must always be fitted with a protective lens in addition to the welding filter.
• Always observe the fire safety rules.

PARTS

Use

To fit the welding shield on the helmet

• Remove knobs and washers from the helmet. Fig. 1.
• Mount the welding shield on the helmet. Fig. 2.

To remove the welding shield
Remove the welding shield. Fig. 3. (Replace the washers and knobs on the helmet.)

Welding lens
For replacement of welding lens. See 4.3.2.

Donning/Doffing the helmet
Follow the directives in the user instructions for the SR 580 helmet.

Maintenance

The person responsible for cleaning and maintaining the equipment must have suitable training and be well acquainted with work of this type.

Cleaning
Clean welding visor and glass with Sundström SR 5226 cleaning wipes or with a mild soap solution. If necessary, spray the welding shield with 70 % ethanol or isopropanol solution for disinfection.
NOTE! Never use a solvent for cleaning!

Storage
After cleaning, the equipment should be stored in a dry and clean location at room temperature. Avoid direct sunlight. The welding shield is not affected by an extended period of storage.

Changing parts

To change the protective lens
The lens must be CE marked and of standard 90×110 mm size.

• Remove the old protective lens. Fig. 4, 5, 6.
• Fit a new protective lens. Fig. 7, 8, 9, 10.

To change the welding lens
The lens must be CE marked and of standard 90×110 mm size.

Welding lens

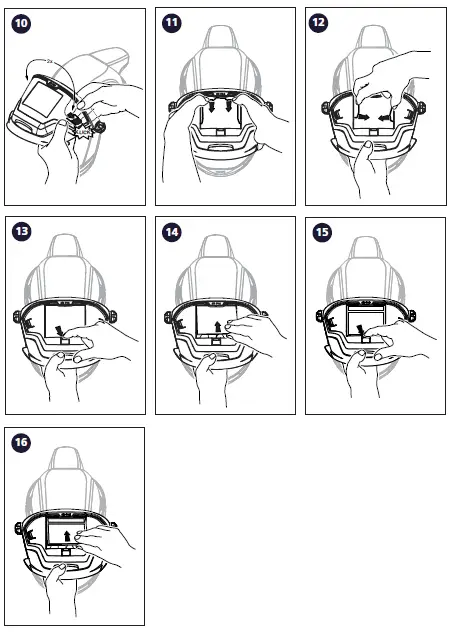

• Remove the old welding lens. Fig. 11, 12, 13, 14.
• Fit a new welding lens in the reverse order. Fig. 14, 13, 12, 11.

Automatic lens

• Remove the old automatic lens. Fig. 15, 16.
• Fit a new automatic lens in the reverse order. Fig. 16, 15.

Fitting the correction lens

• Place the correction lens on the inside of the welding lens.

Technical specifications

Temperature range

• Storage temperature: from -20 °C to +40 °C at a relative humidity below 90 %.
• Service temperature: from -10 °C to +55 °C at a relative humidity below 90 %.

Shelf life
The equipment has a shelf life of 5 years from the date of manufacture.

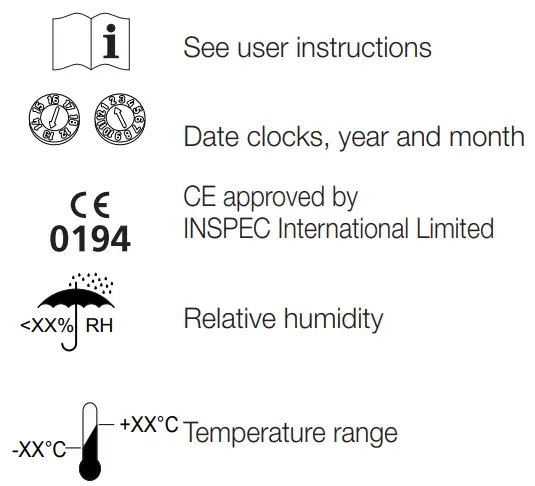

Key to symbols

Approval

The SR 584 is approved in accordance with EN 175:1997. Marked: EN 175 S. S = increased robustness. The PPE Regulation (EU) 2016/425 type approval has been issued by Notified Body 0194. For the address, see the reverse side of the user instructions. The EU declaration of conformity is available at www.srsafety.com

American Standards Mark
Provides respiratory protection with an APF of 1000 (Assigned Protection Factor) according to OSHA 3352-02 2009. Provides limited eye protection (ANSI Z87.1-2010). Provides limited head protection (ANSI Z89.1-2009 Type 1 Class G).

Sundström Safety AB
SE-341 50 Lagan • Sweden
Tel: +46 10 484 87 00
[email protected] • www.srsafety.com
