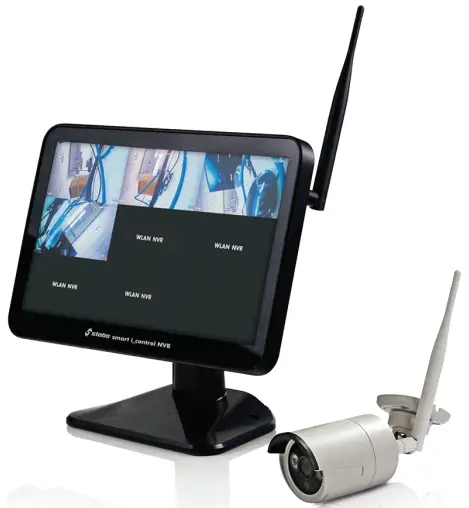

stabo 51097 RF-CCTV camera Set User Manual
Overview
- 30.4 cm (12″) LCD color monitor
- Intelligent motion detection – all movements or only persons
- Repeater function – range of the radio signal is extended
- User-friendly app “XMEye” for free
Description
the Smart-I control NVR wireless video surveillance system enables simple and efficient video surveillance of private or commercial objects, such as Private houses, shops or companies.
The system consists of a 30.4 cm (12″) LCD color monitor with integrated recorder and a full HD wireless outdoor camera. The system can be extended to up to 8 cameras. The recorder records the videos on all channels in real time and in full HD resolution. The video recordings are stored on an HDD hard disk (not included in the delivery). The surveillance camera delivers detailed and high-resolution images and videos during day and night. Three high-performance infrared LEDs provide for a night vision of up to 30 meters. The automatic repeater function extends the range of the radio signal of the system. The system is equipped with various recording functions: Manual, schedule and motion detection (Video Motion Detection). Push and email notifications for motion detection are also possible. Access via web browser to a local WEB user interface or with PC program CMS. With the user-friendly app “XMEye” for Android and iOS devices, the system can be operated remotely and the recording files can be accessed.
Characteristics
- Brilliant picture quality in full HD (1080p resolution)
- 30.4 cm (12″) LCD color monitor with integrated recorder
- Connection of up to 8 cameras
- Recording and playback function
- 3 recording modes (manual, time, movement)
- Push and email notifications
- Can be controlled via app
- Supports We/VMS-PC programs
- Multi-language support
- Compact color camera IP66 Full HD
- Waterproof
- Wall or ceiling mounting.
Information
Hard drive not included.
Delivery content
Full HD color monitor including base and antenna + USB mouse with cable + LAN cable + Full HD color camera with antenna + Base for color camera (wall-ceiling mounting) + Plug power supply monitor 240 AC/DC 12/2A + Plug power supply camera 240 AC/DC 12/1A + QuickStart Instructions for Use.
Requirements
Windows, iOS, Android
Product Specifications
Category: | CCTV camera set |
| Features | IR LEDs |
Signal standard | RF |
| Channels | 8 |
Sensor type | CMOS |
| Sensor size | 8.76 mm (1/2.9″) |
Used at | Outdoors |
Max. range  | 150 m |
Frequency | 2.4 GHz |
| Recording mode | Manual + Preset + Movement detection |
Memory capacity | 8 TB |
| IR range(Max) | 30 m |
Focal length | 3,6 mm |
| Receiver Size | 294 x 188 x 45 mm |
Transmitter dimensions | 182 x 100 x 66 mm |
| Operating temperature | -10° to 60 °C |
Resolution (Max) | 1920 x 1080 p |
| Vertical resolution | 1080 Pixel |
Product Type | CCTV camera set |
| Horizontal resolution | 1920 Pixel |
Manufacturer Number | 51097 |
| EAN | 4010384510978 |
Video compression: H. 265
Camera.
IP66 protection rating
NVR:
Screen size: 256.32 (H) x 114.18 (V) mm
Video input mode 8 x 1080p (20 – 25fps)
Recording resolution: 8x 1080p (up to 8 cameras)
Recording Frame Rate: 20 – 30 fps @ 1080 for each channel
Hard disk 1 x 2.5” SATA interface (up to 8 TB)
External interfaces: 1 x LAN RJ45, 1 x HDMI (1.3), 1 x VGA, 2 x USB (2.0)
