scheppach HC 24-8 Oil Compressor
Product Information

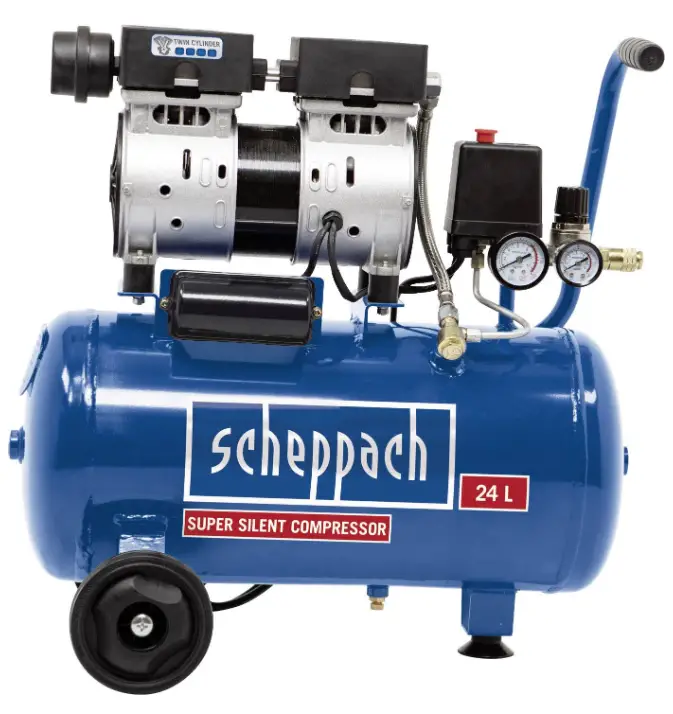

The HC24-8 compressor by Scheppach (DIY) Garland, with the main product code 5906154942, is a compact and portable compressor suitable for small to medium-sized tasks. It has a maximum pressure of 8 bar and comes with various spare parts, including a cylinder head, air filter, valve plate, piston, and connecting rod.

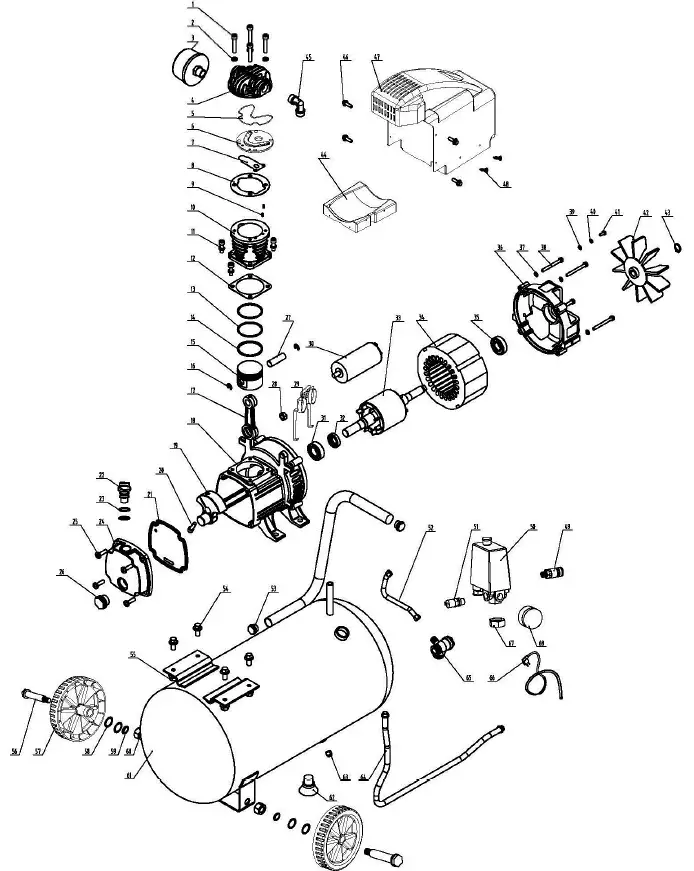

Spare Parts List
Main products Spare part list
5906154942 171447 – 0145 – HC24-8 – –
| Spare | Description | additional | Item | Abb. | ConstructStatus |
| 02091241 | cheese head screw | M6x40 8.8 912 VZ | 1 | A | * |
| 5906101036 | air filter | M16x1,5 Gewinde | 3 | A | * |
| 5906154001 | cylinder head | 4 | A | * | |
| 5906119002 | o cycle part 5 | 5 | A | * | |
| 5906154002 | valve plate cpl. | 6-9 | A | * | |
| 02091237 | cheese head screw M6x20 8.8 912 VZ | M6x20 | 11 | A | * |
| 5906154003 | cylinder gasket | 12 | A | * | |
| 5906154004 | piston ring set | (1 Satz = 3 Stück) | 13 | A | * |
| 5906154005 | Piston cpl. | 15,26,27 | A | * | |
| 5906154006 | connecting rod | 17 | A | * | |
| 02091247 | cheese head screw | M8x20 8.8 912 VZ | 20 | A | * |
| 5906154007 | rubber gasket | 21 | A | * | |
| 3906129009 | breath pipe cpl. | 22,23 | A | * | |
| 5906154008 | crankcase cover | 24 | A | * | |
| 5906115019 | oil leveler with o-ring | SW22 / G 1/2″ | 26 | A | * |
| 02093405 | hexagon nut M8 | M8 | 28 | A | * |
| 5906154009 | capacitance | 30 | A | * | |
| 5906154010 | rotor | 33 | A | * | |
| 5906154011 | stator | 34 | A | * | |
| 02798511 | screw | M4x10 4.8 DIN7985 verzinkt | 41 | A | * |
| 5906154012 | fan | 42 | A | * | |
| 5906154013 | fan cover | 47 | A | * | |
| 5906131011 | quick coupling part 43 | G 1/4″ | 49 | A | * |
| 5906115064 | pressure switch | 8 bar | 50 | A | * |
| 5906154014 | Unloading tube | 52 | A | * |
| Spare | Description | additional | Item | Abb. | ConstructStatus |
| 5911210018 | hex bolt | M8x20 | 54 | A | * |
| 02093405 | hexagon nut M8 | M8 | 55 | A | * |
| 5906101084 | wheel axle (bulg length 47mm) | Bund Ø12,7 x 47mm | 56,58-60 | A | * |
| 5906115051 | wheel | 57 | A | * | |
| 5911210018 | hex bolt | M8x20 | 60 | A | * |
| 5906115053 | washer foot part 53 | 62 | A | * | |
| 5906101066 | vent bolt | 3/8″ / Ø16,6mm | 63 | A | * |
| 5906154015 | High pressure pipe | 64 | A | * | |
| 5906115043 | check valve only brass | G1/2″xG3/8″xG1/8″ | 65 | A | * |
| 5902106014 | Power Line | 2,3m / 3×1.00mm² | 66 | A | * |
| 3906103030 | lock nut 1/4″ | G 1/4″ / SW 19 | 67 | A | * |
| 5906154016 | Pressure gauge | 68 | A | * | |
| 5906101090 | enclosed accessories bag | o.Abb. | A | * |
Product Usage Instructions
- Before use, make sure the compressor is on a stable surface and all components are securely attached.
- Connect the power line to a power source and turn the compressor on by flipping the switch.
- Adjust the pressure switch to the desired level, up to a maximum of 8 bar. The pressure gauge will display the current pressure level.
- Attach the high-pressure pipe to the quick coupling part and connect it to the tool or device that requires compressed air.
- During use, monitor the pressure level and turn off the compressor if it exceeds the recommended level or if there are any unusual sounds or vibrations.
- After use, turn off the compressor and disconnect it from the power source. Release any remaining pressure by opening the vent bolt.
- Perform regular maintenance as instructed in the user manual, including cleaning and replacing filters, checking oil levels, and inspecting for any wear or damage to components.
For more detailed information on spare parts and maintenance, please refer to the user manual or visit the Scheppach website for additional resources.
