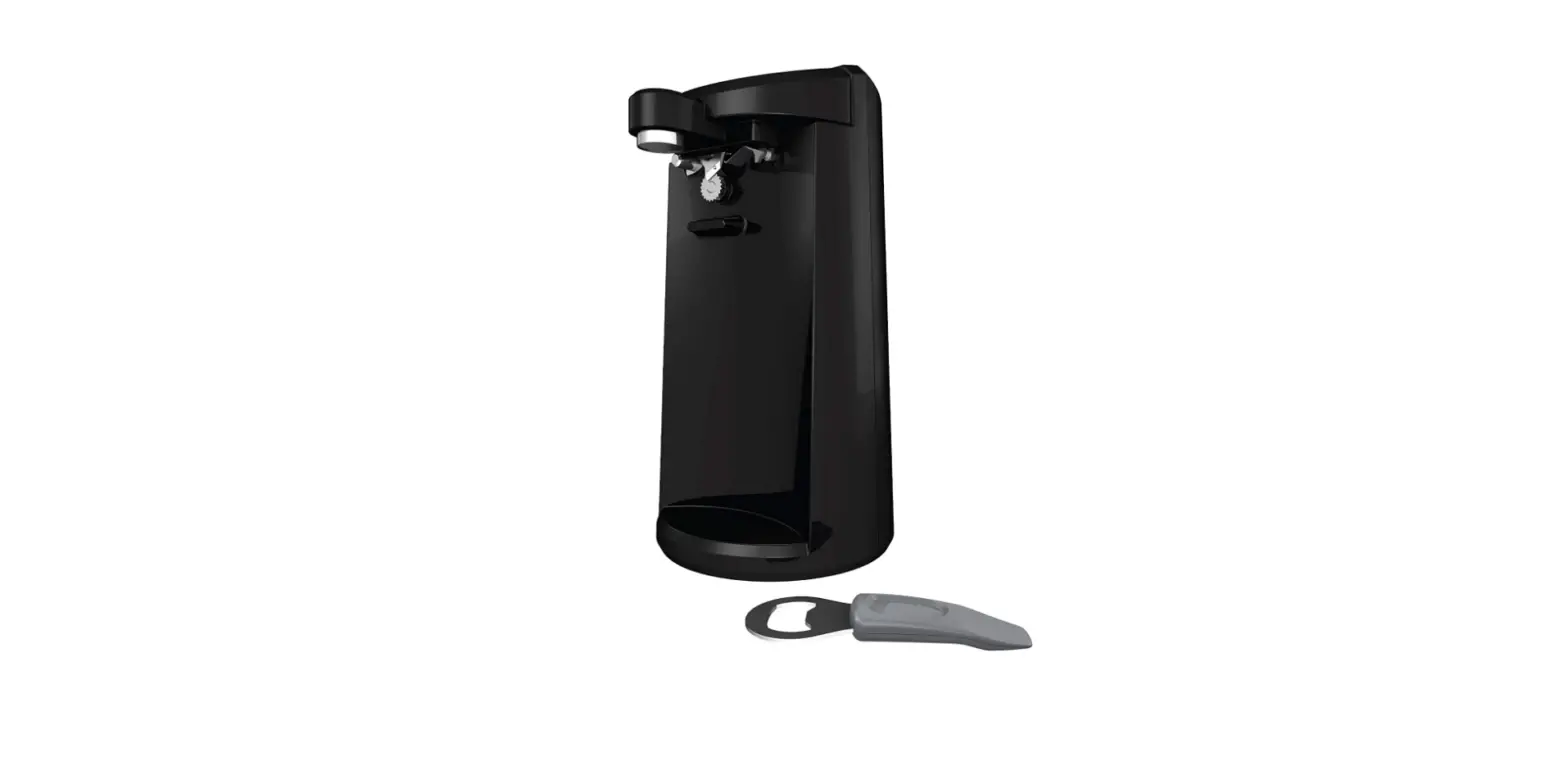

Black+decker Ec500b-t, Extra Tall User Guide (+ PDF)

Utilize the BLACK+DECKER EasyCut Extra-Tall Can Opener to make routine kitchen tasks easier. Most can sizes can be accommodated by the tall, wide design, and the EasyCut Blade Technology quickly removes lids from cans by easily piercing them. The device includes a multi-tool that can remove bottle caps and pop-tops as well as an integrated knife sharpener. You can find a can opener, a knife sharpener, a bottle opener, and a pop-top remover in one small device.

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read and save all instructions.
To protect against electrical shock, do not immerse cord, plug or base unit in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
Avoid contacting moving parts.
Do not operate appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact Consumer Support at the toll-free number listed in the warranty section. This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance must be replaced.
The use of accessory attachments not recommended or sold by this appliance manufacturer may cause fire, electric shock, or injury. Do not use outdoors.
Do not let cord hang over edge of table or counter.
Do not open pressurized (aerosol-type) cans.
Do not open cans of flammable liquids such as lighter fluids.
Do not use appliance for other than intended use.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

This product is for household use only.

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
Extension cords are available and may be used if care is exercised in their use.
If an extension cord is used:
The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance; and
The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note
If the power cord is damaged, please contact the warranty department listed in these instructions.

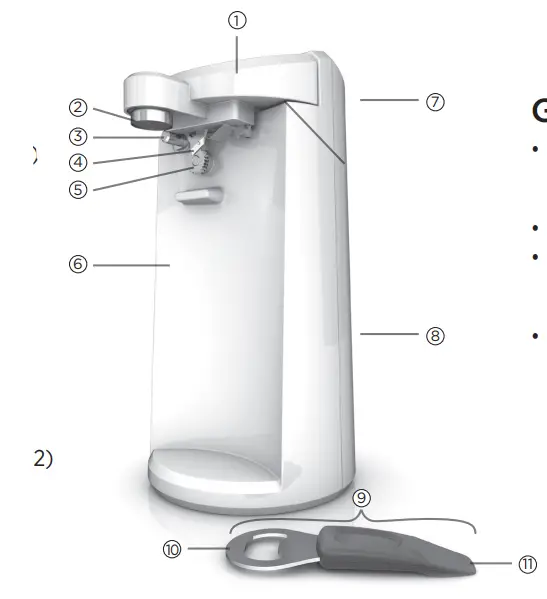

PARTS AND FEATURES

Cutting assembly
Black: (Part # EC500B-01) White: (Part # EC500W-01)
Magnetic lid holder
Locating post
Cutter
Feed gear
Base

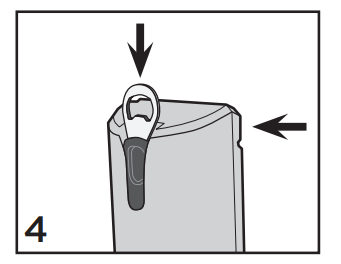

Storage pocket for multi-tool (in back, upper)
Built-in knife sharpener
(in back, middle)
Multi-tool (Part # EC500-02)

Glass bottle opener
Pop-top can opener
Cord storage (under unit)

GETTING STARTED

Remove all packing material, any stickers, and the plastic band around the power plug.
Remove and save literature.
Please go to
prodprotect.com/applica to register your warranty.
Wash all removable parts.

HOW TO USE CAN OPENER

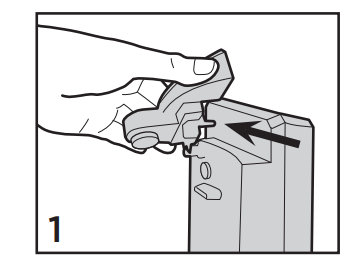

Slip the post on the cutting assembly into the hole on the upper left corner of the front of the base.

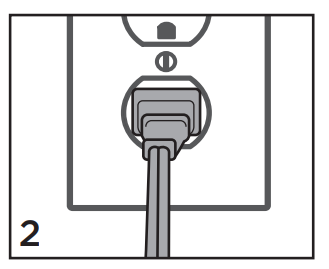

Plug power cord into outlet.

Lift lever up. Tip the can so that the rim is under the locating post. Make sure that the cutter is inside the rim of the can.

Push down on the lever.

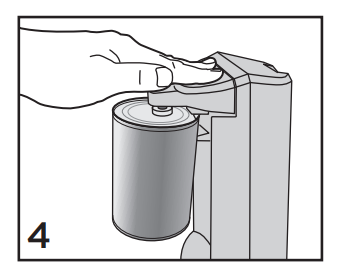

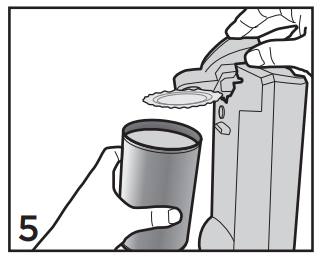

Remove the can by holding it with one hand and lifting the lever with the other.

NOTES

This can opener will not open rimless cans or cans with angled corners and should not be used to open cans with a peel-off foil or rolling key.
Frozen juices or foods in cardboard cans should be opened as soon as they are removed from the freezer. Aluminum lids will not stick to the magnet.
It is not necessary to hold the lever down or support the can during cutting. However, you may have to hold the base when cutting very tall or very heavy cans.

CAUTION

Avoid contact with the cut edges of the can or lids; they are sharp. Carefully remove the lid from the magnet and discard.

HOW TO USE MULTI-TOOL AND KNIFE SHARPENER

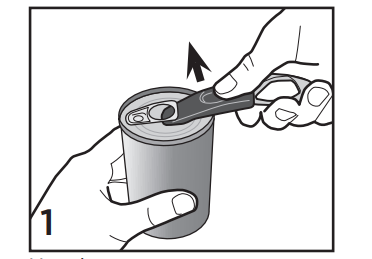

Use the pop-top can opener to lift ring away from lid.

Then pull the ring with your fingers to remove lid.

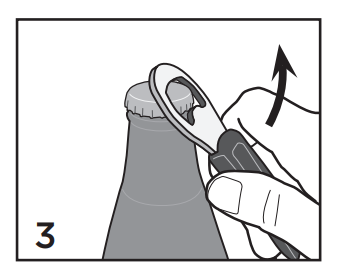

Glass bottle opener: Use on metal bottle caps only.

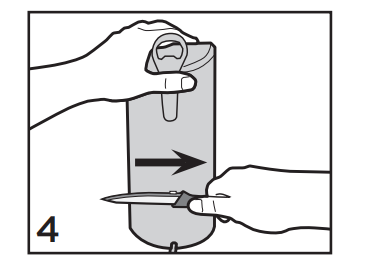

Knife sharpener: Steady the can opener. Holding with blade horizontal, draw the knife edge through the sharpener from handle to tip. (Non-serrated knives only.)

CARE AND CLEANING

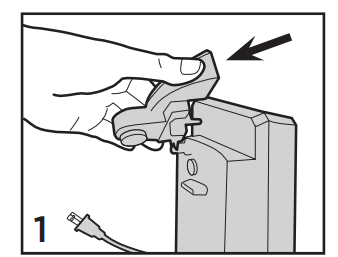

Unplug can opener. Remove cutting assembly by lifting up and pulling out.

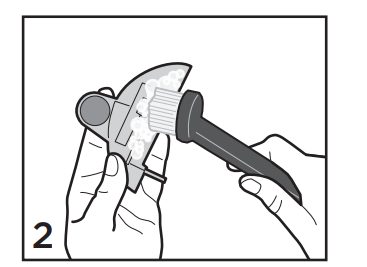

Wash cutting assembly and multi-tool in warm, soapy water. Caution: cutter is sharp.

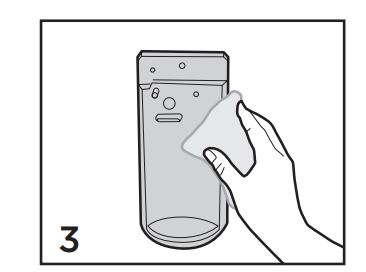

Wipe the can opener’s exterior with a damp cloth or sponge. Do not use abrasives.

Dry parts and put them back on the can opener.

WARRANTY AND CUSTOMER SERVICE INFORMATION Two-Year Limited Warranty

(Applies only in the United States and Canada)

For service, repair or any questions regarding your appliance, call the appropriate 800 number listed within this section.

Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to the manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

What does it cover?

Any defect in material or workmanship provided; however, Spectrum Brands Inc’s liability will not exceed the purchase price of product.

For how long?

Two years from the date of original purchase with proof of purchase.

What will we do to help you?

Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

Save your receipt as proof of date of sale.
Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

Damage from commercial use
Damage from misuse, abuse or neglect
Products that have been modified in any way
Products used or serviced outside the country of purchase
Glass parts and other accessory items that are packed with the unit
Shipping and handling costs associated with the replacement of the unit
Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

Frequently Asked Questions

Can you cut with the can under the blade and then leave?

Yes, once the can is safely positioned between the blade and the lid holder. The can will be cut and turned automatically. When finished, it will stop and hold the can and lid in separate positions until you lift the top. Until you remove it, the lid will stay affixed to the top.

How do I get rid of the tiny ceramic piece by the knife sharpener?

You are probably referring to the knife sharpener, also known as a whetstone, which is made of ceramic. The whetstone is held in a slanted position suitable for use with either the left or right hand. Put the end of the knife that is closest to the handle into the slot to sharpen it. In one continuous motion, pull the knife through the slot at a slight upward angle (roughly a 20-degree angle). Continue until the desired sharpness is achieved. After sharpening, wash and dry your knives.

What voltage is it?

A Specifications box under the Key Features section states that the Black+Decker can opener needs a 120 Volts – 60 Hz electric power service, similar to what is used in North America.

Which warranty is offered?

This can opener comes with a two-year warranty from the time of purchase. Any kind of sales or gift receipt should be kept as proof of purchase, so do so.

Can a10 can be opened with this can opener?

Yes, as long as you keep it upright.

Can’t seem to find the separate multi-tool

Although it is separate, the bottle opener slots into a holder on the back of the can opener. There is an integrated knife sharpener.

Cans with pull tops can be opened by this.

The multi-tool in the housing’s back can be used to open pull-top cans and glass bottles.

Does the blade unit fit in a dishwasher?

The blade unit can be removed with ease, washed in hot water, and then replaced on the can opener.

Is the dishwasher safe for the removable part?

I put the dishwasher’s upper rack in which the removable component belonged. I take it out after the wash cycles but before the drying element turns on, just to be safe.

How do I retract the cord?

The can opener’s back opening can be used to insert the cord. On this particular model, there is no button to retract the cord.
