Removal and Installation
| SECTION 412-01: Climate Control | 2006 Fusion/Milan/Zephyr Workshop Manual |
| REMOVAL AND INSTALLATION | Procedure revision date: 06/30/2005 |
Heater Core

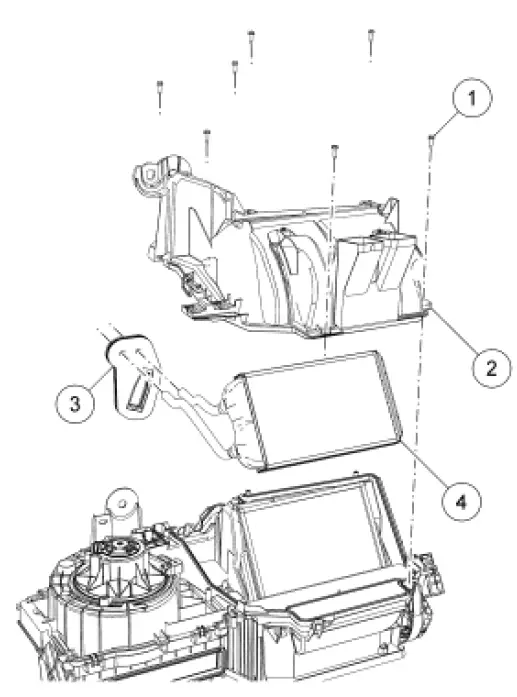

| Item | Part Number | Description |
| 1 | W712320 | Heater core cover screw (8 required) |
| 2 | 18B300 | Heater core cover |
| 3 | 19C593 | Dash panel seal |
| 4 | 18476 | Heater core |
Removal and Installation
NOTE: If a heater core leak is suspected, the heater core must be pressure leak tested before it is removed from the vehicle. For additional information, refer to Section 412-00.

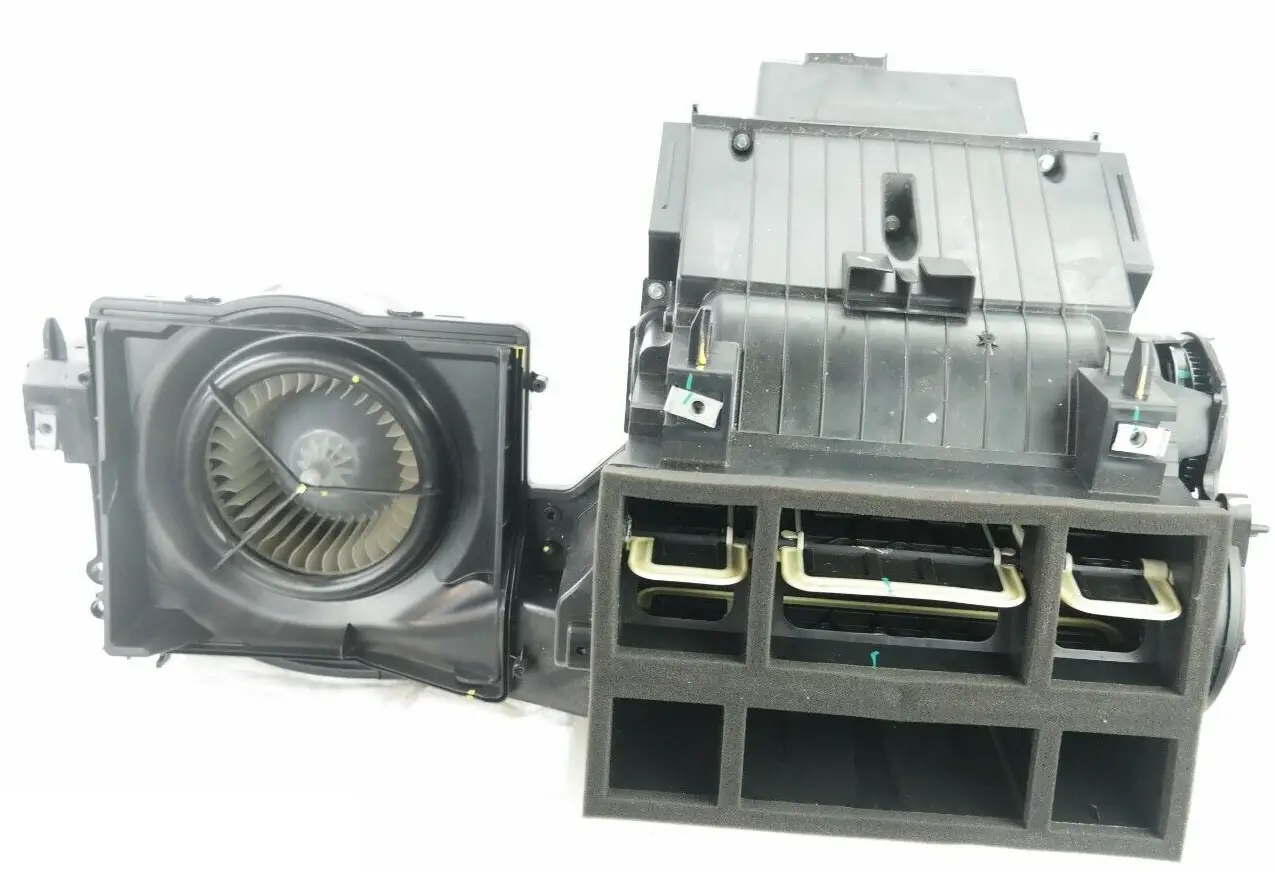

- Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing in this section.
- Detach the wire harness from the heater core cover.
- Remove the 8 heater core cover screws.
- Remove the heater core cover.
- Remove the dash panel seal from the heater core tubes.
- Remove the heater core.
- To install, reverse the removal procedure.
