80100036339 LED Corn HOL AC 220V-240V 50/60Hz
Instruction Manual
Technical specifications
- AC 220V-240V 50/60Hz
- IP64
- Beam angle: 300°
- Operating temperature: -25 ~ 40°C
Warning – Caution – Safety
- Before installation please read the specifications to make sure that this product is suitable for the operating environment.
- Risk of electric shock. Disconnect power before installation, servicing, and removal.
- Make sure the supply voltage is the same as the rated lamp voltage.
- All safety instructions must be followed to avoid a risk of injury or property damage.
- Do not disconnect existing wires from the lampholder.
- Not suitable for use with emergency units.
- The lamp should be used in fitting with good ventilation.
- When used in enclosed fixtures the lumen maintenance and lifetime will be affected.
- Wet applications require an IP-rated fixture.
- LED retrofit installation should be done by a qualified professional.
- Not for use with dimmers.
- Only use in combination with LED compatible photocell sensors,
- Prior to installation, please check whether the luminaire and in particular the lampholder can bear the weight of the LED Corn lamp. Increased weight may reduce the mechanical stability of certain luminaires and lamp holders.

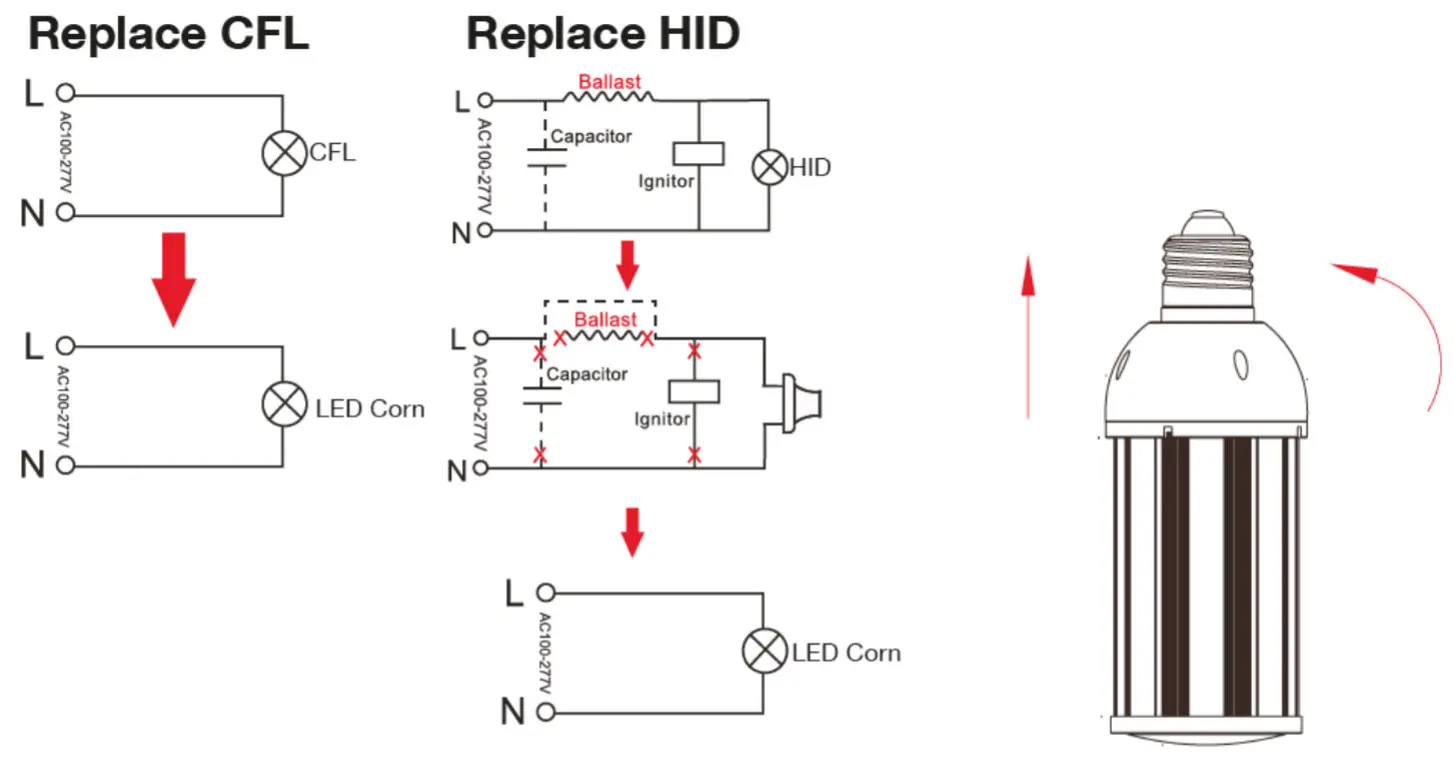

INSTALLATION
- Switch off the power.
- Disconnect the ballast and remove the lamp.
- Rewire according to the diagram.
- Insert LED retrofit lamp.
- Turn the power back on.
Connect directly to mains voltage (AC)!
Disconnect ballast, capacitor, and ignitor before use!
Bailey Electric & Electronics bv
Everdenberg 21 4902 TT Oosterhout Netherlands
+31 (0)162 52 2446 | www.bailey.nl
