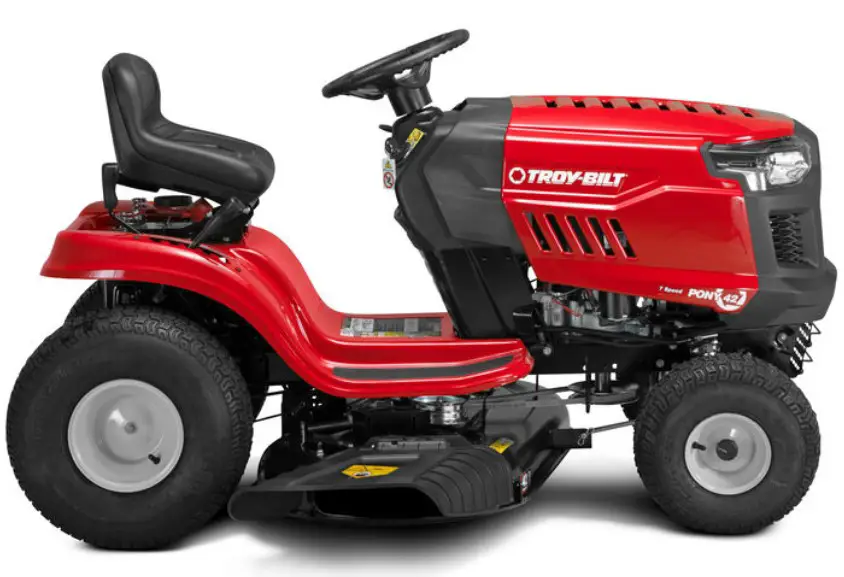

769-26665 Troy-Bilt Pony 42 Riding Lawn Mower Instructions

Parts/Warranty Supplement

Warranty

This document contains information for all listed models. Warranty information included in this document is specific to your purchased produc

Models

Pony, Bronco

Customer Support

Please do NOT return the machine to the retailer or dealer without first contacting the Customer Support Department.
If you have difficulty assembling this product, have questions regarding the controls, operation, or maintenance of this machine, want to order replacement parts/attachments/accessories, or want to view an online How-To video; you can seek help from the experts. Have your full model number and serial number ready. Choose from the options below:

◊ Web: www.troybilt.com/equipment/troybilt
◊ Phone: (800) 828-5500
◊ Mail: Troy-Bilt LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019

Replacement Parts

Service Part NumberPackaged Part NumberDescription
754P06434490-501-M100Deck Belt (36” Deck)
954-04060C490-501-Y044Deck Belt (42” Deck)
954-04219490-501-Y009Deck Belt (46” Deck)
618P09236Deck Spindle (36” Deck)
918-06991490-130-Y024Deck Spindle (42” Deck)
618P09235Deck Spindle (42” Deck)
918-06989490-130-Y025Deck Spindle (46” Deck)
618P09261Deck Spindle (46” Deck)
742P05535490-110-M190Blade (36” Deck)
942-04308A490-110-Y108High-Lift Blade (42” Deck)
742P04308-X490-110-0137XTREME™ Blade (42” Deck)
942-04312-L490-110-M180Low-Lift Blade (42” Deck)
742P05177490-110-Y191High-Lift Blade (42” Deck)
742P05177A-X490-110-Y202XTREME™ Blade (42” Deck)
742P05177-L490-110-Y198Low-Lift Blade (42” Deck)
942-04290A490-110-M110High-Lift Blade (46” Deck)
742P04290A-X XTREME™ Blade (46” Deck)
942-04290-L490-110-M181Low-Lift Blade (46” Deck)
742P05573490-110-Y192High-Lift Blade (46” Deck)
742P05510-X490-110-Y203XTREME™ Blade (46” Deck)
742P05510-L490-110-Y199Low-Lift Blade (46” Deck)
736-3088S-Blade Washer (If equipped)
Service Part NumberPackaged Part NumberDescription
734-06305ADeck Wheel (If equipped)
725P17136AGM Battery
951-12179CFuel Tank Cap

(US, Excluding CA)

951-12426BFuel Tank Cap (CA Models Only)
751-0603BFuel Tank Cap (Export)
OEM-725-1745Key
634-04324490-327-0006Wheel Assembly 20 X 8
734-04240ATire (Front) 15 x 6 x 6 Round Shoulder
490-325-0074Tire (Front) 15 x 6 x 6 Square Shoulder
734-04241Tire (Rear) 20 x 8 x 8 Round Shoulder
490-325-0076Tire (Rear) 20 x 8 x 8 Square Shoulder
946-04367AThrottle Control/Cable
631P07179Mulch Plug (36” Deck)
631-04354CDischarge Chute Assembly (42” & 46” Decks)
931-0484AHub Cap
BS-793569490-950-Y059Air Filter, Briggs & Stratton
937-05129490-200-Y070Air Filter, Troy-Bilt (382cc)
937-05129AAir Filter, Troy-Bilt (439cc)
937-05066490-200-Y063Air Filter, Troy-Bilt (547cc)
BS-492932S490-201-Y009Oil Filter, Briggs & Stratton
951-12690490-201-Y010Oil Filter, Troy-Bilt
951-3013490-202-M002Fuel Filter, Troy-Bilt
751P22435Spark Plug, Briggs & Stratton
951-10292490-250-Y012Spark Plug, Troy-Bilt

Attachments & Accessories

Part NumberDescriptionPart NumberDescription
19A70041OEM42” Mulch Kit19A30043100Leaf Collection System, 42” & 46”
OEM-190-679Bumper Kit
19A3004606642” XTREME™ Mulch Kit
19A30017OEMSnow Blade
19A30005OEM46” Mulch Kit
490-900-0067Universal Sun Shade
19A3004706646” XTREME™ Mulch Kit490-900-M06042 lb. Rear Suit Case Weight Kit with Bracket
490-900-M05942 lb. Rear Suit Case Weight
490-950-M04536” Deck Side Discharge Chute
490-241-002320″ x 8″ Tire Chains
19A30045OEM36” Bagger
19B40026OEMEZ Stow Hauler
19A30031OEM42”/46” Bagger

TROY-BILT LLC — LIMITED WARRANTY

The limited warranty set forth herein is given by Troy-Bilt LLC with respect to a new Troy-Bilt® product (hereinafter “Product”) purchased and used in the United States and/or Canada to the Initial Purchaser (as defined herein). This limited warranty does not cover Emission Control Systems and is not a Federal Emission Control Warranty Statement, as defined by U.S. federal law. Please refer to the Federal Emission Control Warranty Statement in the operator’s manual for warranties covering Emission Control Systems.

Scope of the Limited Warranty

Troy-Bilt LLC warrants that the Product (except with regard to the components and circumstances defined below as “Exclusions”) will be free from defects in materials and workmanship during the Warranty Period, as defined below. For purposes of this limited warranty, the “Initial Purchaser” is the first person/ company to purchase this new Product from an authorized Troy-Bilt dealer, distributor, and/or retailer of such products, including a party for whom said Product was purchased as a gift. This limited warranty is non-transferrable. During the Warranty Period, Troy-Bilt LLC will, at its option, either repair or replace any original part that is covered by this limited warranty and is determined to be defective in workmanship or material. “Commercial Use” shall be defined as any commercial, professional, agricultural, institutional, or income-producing use of the Product. Product shall not be warranted for Commercial Use unless so designated in the Additional Warranty
Notes

TroyBilt LLC® Warranty Information
Handheld ProductWarranty Period
Chainsaws, Cultivators, Brushcutters, Blowers, Trimmers, Edgers, Hedgers, Pole Saws2 Year *
51cc Backpack Blower , Troy-Bilt XP Products3 Year *
Wheeled Chore ProductWarranty Period
Chipper-Shredder Vacuums, Lawn Edgers, Wheeled-String Trimmers, Front Tine Tillers, Rear Tine Tillers2 Year
Gas Powered Mower ProductWarranty Period
Riding Mowers, Troy-Bilt – TB30, PONY, BRONCO2 year †
Riding Mowers, Troy-Bilt XP – SUPER BRONCO XP3 year
Walk-Behinds- Troy-Bilt2 year †
Walk-Behinds – Troy-Bilt XP, 28” Wide-Area Walk-Behinds3 Year
Zero-Turns – Mustang, Mustang XP3 Year
Snow ProductWarranty Period
Single, Two, and Three Stage3 Year
Additional Warranty Notes
* Handheld Products – Limited Commercial Use Warranty: Handheld products – 90 days.
† FOR PRODUCT SOLD IN CANADA ONLY: Riding mowers TB30, Pony, and Bronco models are covered by a three (3) year product warranty; Troy-Bilt non-XP walk-behind mowers are covered by a three (3) year product warranty.
Lead-Acid and AGM Batteries: Are covered by a one (1) year prorated limited warranty against defects in material and workmanship, with 100% replacement during the first three (3) months, from the date of original purchase by the Initial Purchaser. After three (3) months, the battery replacement credit is based on the months remaining in the twelve (12) month period, dating back to the date of original purchase by the Initial Purchaser. Any replacement battery will be warranted only for the remainder of the original warranty period.
Frames: The frame, chassis, and front axle on all Super Bronco XP’s are covered for “Residential Use” by a five (5) year limited warranty. The frame on all Zero- Turn Mustang products shall be warranted against defects in material and workmanship for the lifetime of the product, namely for as long as it is owned by its Initial Purchaser or the party for whom it was originally purchased as a gift, or seven (7) years from the date of its initial sale to an Initial Purchaser, whichever comes first.
Mowing Decks: 1) Troy-Bilt LLC warrants the mowing decks under the warranty of the product it came with unless otherwise stated. 2) When so equipped, the optional fabricated cutting deck shell (excluding wear parts, etc. thereon) shall be warranted against defects in material and workmanship for the lifetime of the product, namely for as long as it is owned by its Initial Purchaser or the party for whom it was originally purchased as a gift, or seven (7) years from the date of its initial sale to an Initial Purchaser, whichever comes first.
Snow Blowers: Two Stage Arctic Storm and all Three-Stage – Auger gear boxes have a five (5) year limited warranty. When so equipped, the polymer discharge chute shall be warranted against defects in material and workmanship for the lifetime of the product, namely for as long as it is owned by its Initial Purchaser or the party for whom it was originally purchased as a gift, or seven (7) years from the date of its initial sale to an Initial Purchaser, whichever comes first.
Tillers: When so equipped, the bronze gear transmission shall be warranted against defects in material and workmanship for the lifetime of the product, namely for as long as it is owned by its Initial Purchaser or the party for whom it was originally purchased as a gift, or seven (7) years from the date of its initial sale to an Initial Purchaser, whichever comes first.
Attachments/Accessories: Please refer to warranty with Operator’s Manual.

How to Get Service Under This Limited Warranty

In order to qualify for the limited warranty, as set forth herein, the repairs made under this warranty must be performed by an authorized Troy-Bilt service provider. To locate a Troy-Bilt service provider, contact your authorized Troy-Bilt dealer, distributor, or retailer, or contact Troy-Bilt LLC at P.O. Box 368023, Cleveland, Ohio 44136-0019, or call 1-877-282-8684, or log on to our Website at www.troybilt.com. For Canada, contact MTD Products Limited,

97 Kent Ave, Kitchener, ON N2G 3R2, or call 1-800-668-1238, or log on to our Website at www.troybilt.ca. This limited product warranty is provided by Troy-Bilt LLC and is the only product warranty provided by Troy-Bilt LLC for the Product. A COPY OF YOUR SALES RECEIPT IS REQUIRED FOR WARRANTY SERVICE.

What This Limited Warranty Does Not Cover

This limited warranty does not cover the following (the “Exclusions”):

  1. Product purchased outside of the United States or
  2. Emission Control These items are subject to a separate warranty under the applicable Federal Emission Control Warranty Statement. Please refer to the applicable Federal Emission Control Warranty Statement for terms and conditions relating to Emission Control Systems.
  3. Damage due to lack of maintenance and/or improper maintenance, as described in the operator’s
  4. Normal wear and tear resulting from use of the
  5. Normal Wear Parts (as defined herein) are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of original purchase by the Initial Purchaser for residential use, and for 30 days or 100 hours (whichever occurs first) for Product used Depending on Product, Normal Wear Parts include, but are not limited to items such as: belts, blades, blade adapters, grass bags, rider deck wheels, seats, shave plates, skid shoes, tines, filters, nozzles, hoses, O-rings, spray guns, wands, tires, spark plugs, fuses, bump knobs, outer spools, cutting line, inner belts, starter pulley, starter rope, drive belts, saw chains, guide bars, and other consumable items.
  6. Use of the product that is not consistent with the intended use thereof, as described in the operating instructions, including, but not limited

to, abuse, misuse and/or neglect of the Product, or any use inconsistent with and/or non-compliant with instructions contained in the Operator’s Manual. This includes operation in sandy and/or corrosive environments.

  1. Any Product that has been altered or modified in a manner not consistent with the original design of the Product or in a manner not approved by Troy-Bilt
  2. Paint repairs or replacements for defective paint (including materials and application) are covered for a period of three (3)
  3. Wheel rims (when so equipped) are covered for a period of three (3) months for manufacturing

This warranty does not cover, and Troy-Bilt LLC disclaims any responsibility for, matters including, but not limited to, the following:

  1. Loss of time or loss of use of the Product.
  2. Transportation costs and other expenses incurred in connection with the transport of the Product to and from the authorized Troy-Bilt service
  3. Any loss or damage to other equipment or personal
  4. Damages caused by improper maintenance or the use of other than the specified fuel, oil, or lubricants, as approved in the operator’s
  5. Damage resulting from the installation or use of any accessory or part not approved by Troy-Bilt LLC for use with the

Limitations

  1. THERE ARE NO IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY SHALL APPLY AFTER THE APPLICABLE WARRANTY PERIOD, AS SET FORTH ABOVE, AS TO THE PARTS AS NO OTHER EXPRESS WARRANTY OR GUARANTY, WHETHER WRITTEN OR ORAL, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY, INCLUDING A DEALER OR RETAILER,

WITH RESPECT TO ANY, PRODUCT SHALL BIND Troy-Bilt LLC. DURING THE WARRANTY PERIOD, THE EXCLUSIVE REMEDY IS REPAIR OR REPLACEMENT OF THE DEFECTIVE PART, AS SET FORTH ABOVE. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.)

  1. THE PROVISIONS, AS SET FORTH HEREIN, PROVIDE THE SOLE AND EXCLUSIVE REMEDY ARISING FROM THE Troy-Bilt LLC SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGES INCLUDING, WITHOUT LIMITATION, FOR TRANSPORTATION OR FOR RELATED EXPENSES, OR FOR RENTAL EXPENSES TO TEMPORARILY REPLACE A WARRANTED PRODUCT. (SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.)
  2. IN NO EVENT SHALL RECOVERY OF ANY KIND BE GREATER THAN THE AMOUNT OF THE PURCHASE PRICE OF THE PRODUCT SOLD. ALTERATION OF THE SAFETY FEATURES OF THE PRODUCT SHALL VOID THIS LIMITED WARRANTY. YOU ASSUME THE RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO YOU AND YOUR PROPERTY, AND/OR TO OTHERS AND THEIR PROPERTY, ARISING OUT OF THE USE OR MISUSE OR INABILITY TO USE THE
  3. This limited warranty extends to the Initial Purchaser only and, except as otherwise stated herein, the applicable Warranty Period will begin on the original date of purchase of the Product. In the event that the original date of purchase of the Product is indeterminable, then the Warranty Period shall be established as beginning on the Product’s date of manufacture, as determined by Troy-Bilt LLC, and ending six (6) months after the applicable Product Warranty Period, as defined In no event shall a Product’s warranty extend beyond the applicable Warranty Period.

How State Law Relates to This Warranty

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
