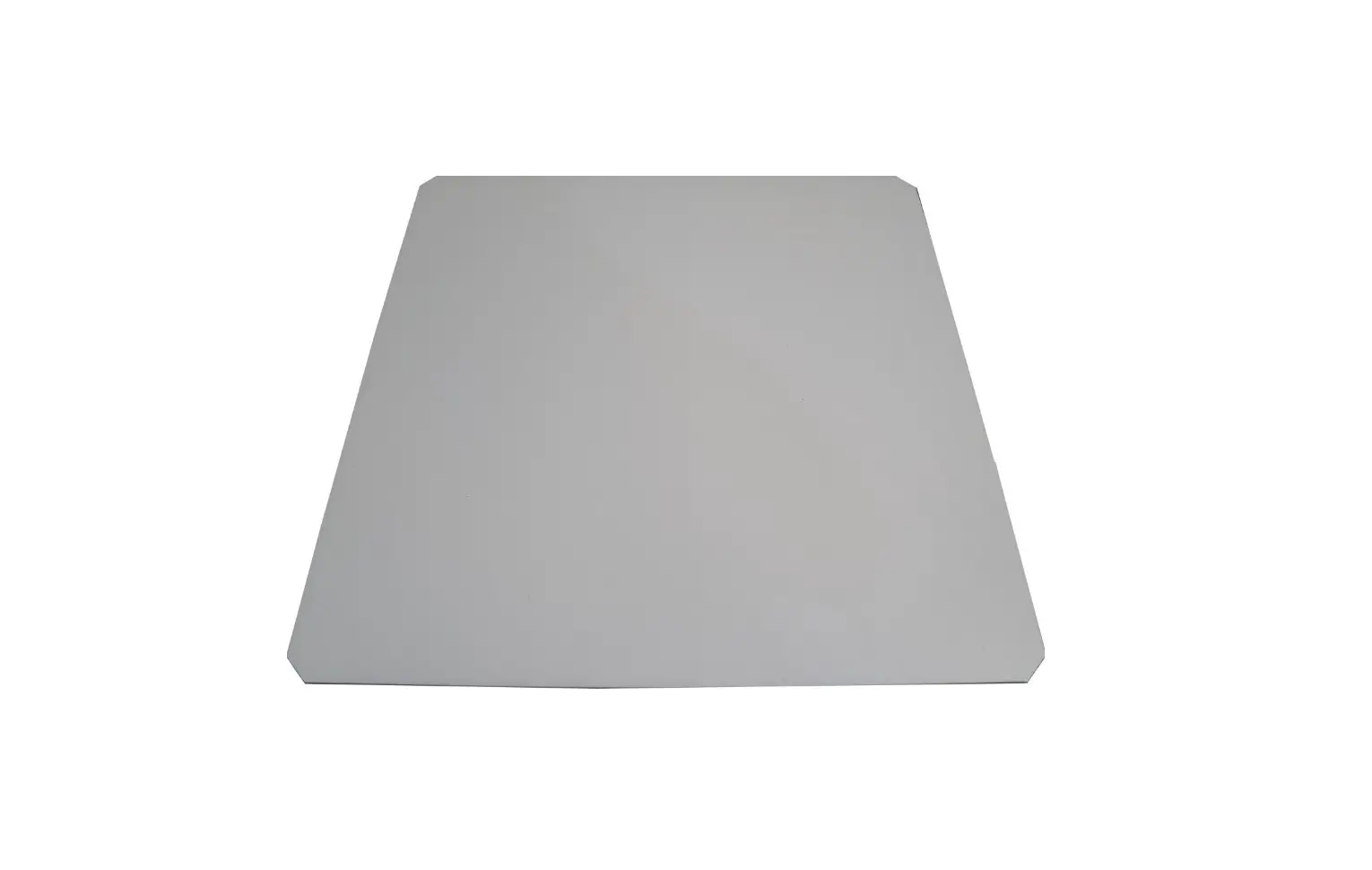

Marshall CPT1 Tufflex Tile Makes Ceiling Instruction Manual
The Tufflex Tile offers a super lightweight alternative to using plywood or MDF as a pattress in suspended ceiling installations. Easy to handle and strong, the Tufflex Tile is flame retardant and LSF removing a key component of the fire triangle.
- Super lightweight Correx tiles 595 x 595mm
- No need to cut or saw plywood/MDF
- Pre-chamfered edges for a quick fit
- Flame retardant and LSF
- Requires less PPE (as no need for cutting and sawing)
- No waste or dust
- Weight tested to 5kg

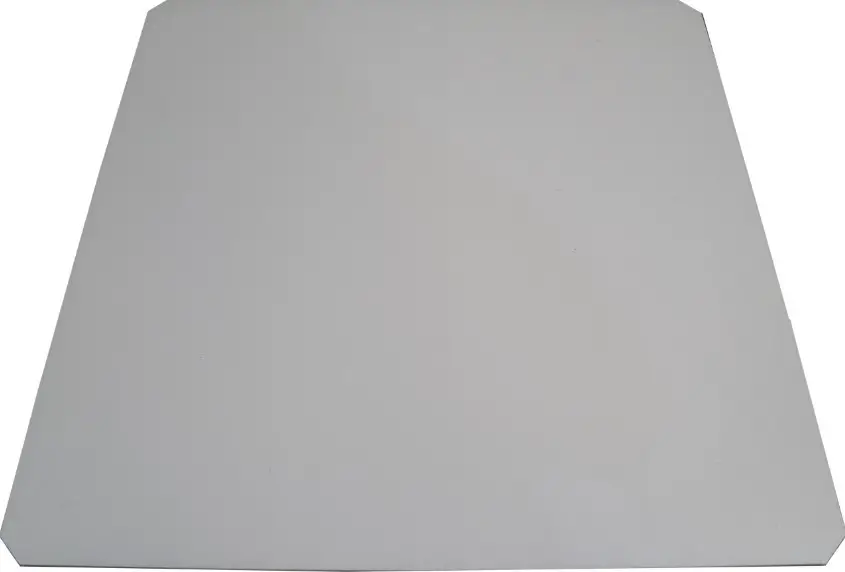

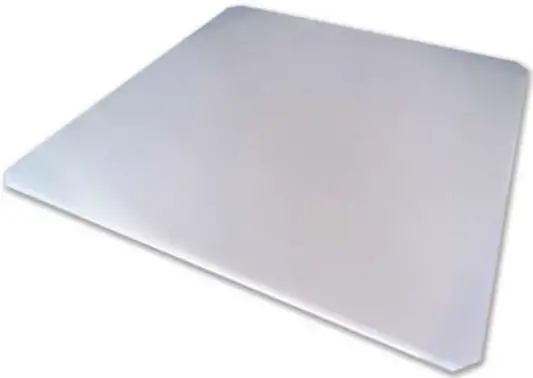

Tufflex Tile
| code | size | pack |
| CPT1 | 595 x 595 x 4mm | 25 |
Compliance and Standards
- DIN 4102 Class B1
- UL94 V2 (reduced to V2 because of droplets, otherwise V0 behaviour)
- ASTM D635 burning time less than 5 seconds
- BS 4662:2006+A1:2009 15.4.3.3 – Pass
- BS 2782 Method 508A – Pass
- UK Building Regs Part B
Regulations
BS 7671 18th edition wiring regulations (regulation 134.1.1) states that ‘the installation of electrical equipment shall take account of manufacturers’ instructions – manufacturers recommend that a pattress is required for fixing fittings in suspended ceiling installations.
Dry lining boxes
| Double back entry – loop in 34mm internal depth (white clamps) | ||
| code | fix. centre | pack |
| MDCRB2WH | 50.8/60.3mm | 10 |

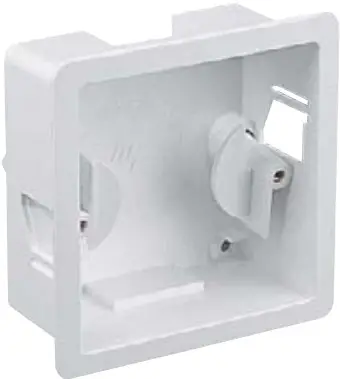

| 1 gang 34mm internal depth | ||
| code | adjustment | pack |
| MDLB1WH | 6-14mm | 20 |
