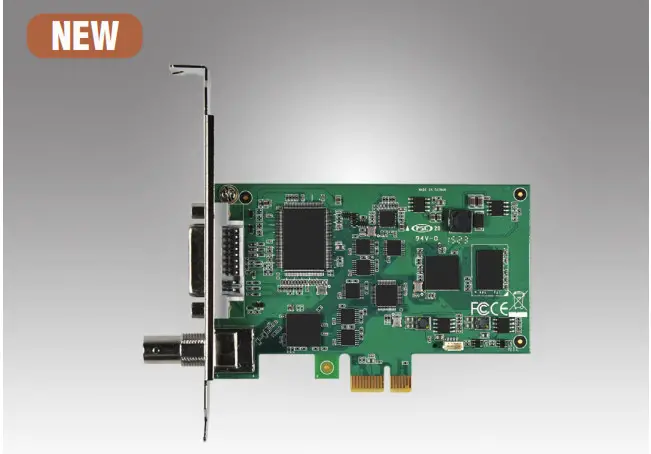

DVP-7611HE
1-ch Full HD H.264 PCIe
Video Capture Card with SDK
Features
- 1-channel SDI/HDMI/DVI-D/DVI-A/YPbPr video input with H.264 hardware compression and dual streaming
- 30/25 fps (NTSC/PAL) at up to 1080p resolution for recording
- PCIe x1 host interface
- Low Profile size
- Windows/Linux OS and SDK supported
Introduction
DVP-7611HE is a PCIe-bus, hardware compression video capture card with 1 channel of SDI/HDMI/DVI-D/DVI-A/YPbPr/S-Video/Composite and 1 audio input. DVP-7611HE supports H.264 compression format at up to Full HD 1080p for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7611HE is an ideal solution for various video capture applications or video surveillance.
Specifications
| Video | Video-Input Compression Video-Input Video Output | 1 x SDI/HDMI/DVI-D/DVI-A/YPbPr/S-Video/Composite H/W H.264 1920 x 1080 @ 60/50 fps 1920 x 1080 @ 30/25 fps |
| Audio | Audio Input Format | 1x SDI, 1x HDMI, 2 x RCA STEREO/16 bits/32000~48000 Hz |
| Physical Characteristics | Host Interface Operating Temperature Storing Temperature Dimensions Safety | PCIe x1 -20 ~ 70° C (-4 ~ 158° F) -40 ~ 85° C (-40 ~ 185° F) 145 x 69 mm (5.71″ x 2.72″), Low Profile size CE/FCC |
Versatile SDK Support (Windows / Linux)
Advantech provides a software development kit (SDK), a set of development tools that allows a software engineer to integrate video capture modules into different types of systems.
Functions include video recording, playback, and instant preview.
- Software Library
- SDK Manual
- Sample Program
Intelligent Video Platforms
All product specifications are subject to change without notice.

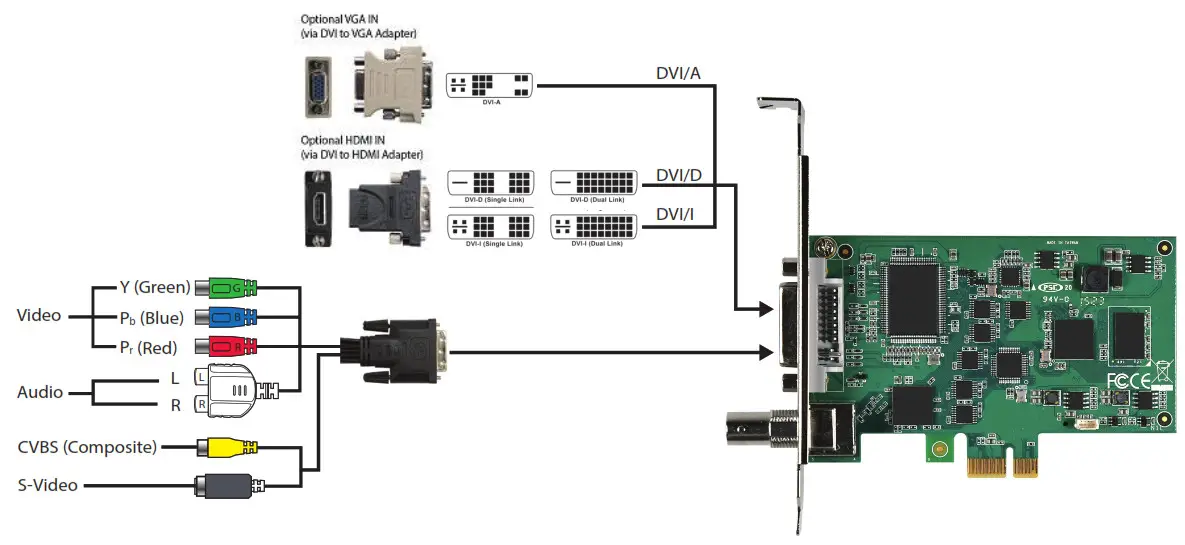

Connection Diagram
Ordering Information
| Part Number | Description |
| DVP-7611HE | 1-ch Full HD H.264 PCIe Video Capture Card with SDK |
Packing List
| Item | Amount |
| DVP-7611HE Capture Card | 1 (piece) |
| DVI to YPbPr / S-Video / AV cable | 1 (piece) |
Online Download: www.advantech.com/products
