Intended use

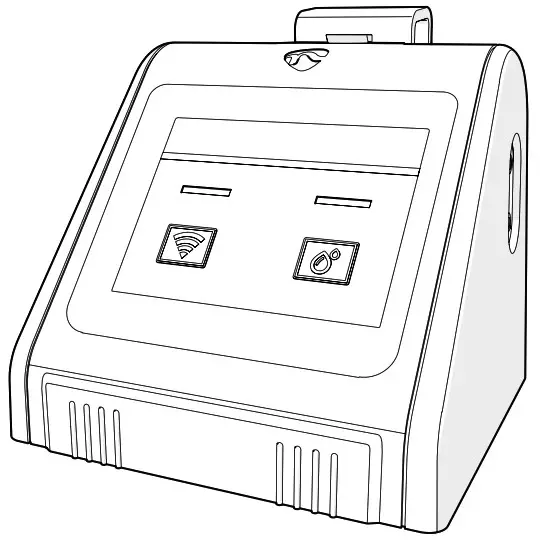

The Nedis WIFIWP10GY is a water control system that allows you to wirelessly schedule automatic irrigation via Wi-Fi connection.
The product can be controlled with the Nedis SmartLife app. This product is intended for indoor and outdoor use. The product is not intended for professional use. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product	Wi-Fi Smart Irrigation Pump
Article number	VVIFIWP1OGY
Dimensions (I x w x h)	813 x 87.5 x 775 mm
Weight	300g
Input voltage	5.0 VDC ;1.0 A
Required power	5 W
Battery type	4x 1.5 V AAA (not included)
Max. radio transmit power	17 dBm
Antenna gain	2.5 dBi
Frequency range	2.412 – 2.484 GHz
Operating temperature	3 °C – 50 °C
Operating humidity	0 % – 90 % (RH)
Working water flow	23 L/hr
Working water pressure	0.3 bar
Max. water pressure	≥200 kPa
Max. pumping height	3 m
Irrigation tube size	1/4″
Irrigation frequency	1 hour – 7 days
Irrigation duration	6 seconds – 30 minutes
Irrigation amount	Manual irrigation: open at any time Automatic irritation: accurate water output

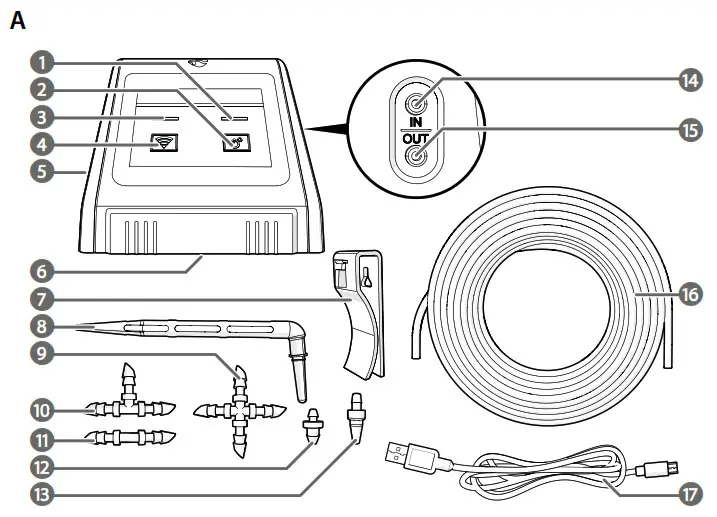

Main parts (image A)

1. Irrigation indicator LED	7. Mounting clip	13. Water filter
2. Manual irrigation button	8. Arrow drippers (10x)	14. Water inlet
3. Wi-Fi indicator LED	9. Cross connector (3x)	15. Water outlet
4. Wi-Fi button	10. Tee connector (10x)	16. Irrigation tube (10 m)
5. Micro USB charging port	11. Straight connector (3x)	17. Micro USB cable
6. Battery compartment	12. End plug (3x)

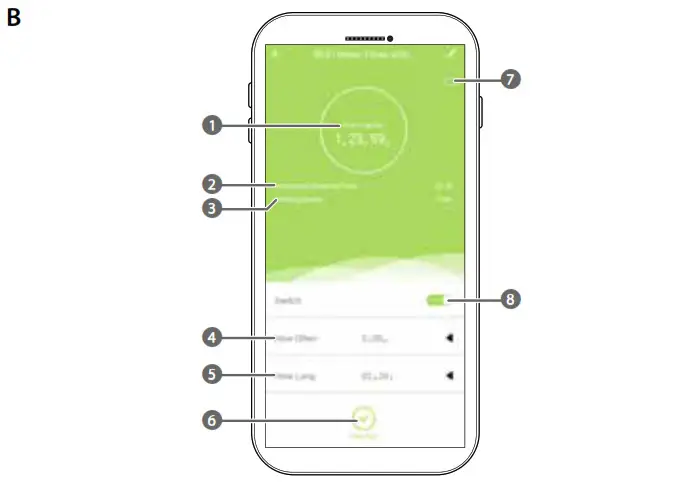

App overview (image B)

1. Remaining time until next irrigation	4. Irrigation frequency	7. Battery status
2. Remaining time until current irrigation ends	5. Irrigation duration	8. Switch to activate or deactivate manual irrigation
3. Working status	6. Enable or disable automatic irrigation

Safety instructions

WARNING

Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
Only use the product as described in this document.
Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
Close supervision is necessary when the product is used by or near children, animals or infirm persons. Do not allow children to play with it or touch it.
Keep the product out of reach from children.
Battery usage by children should be supervised.
Only use batteries that correspond with the specifications.
Do not use any cell or battery that is not designed for use with the product.
Remove the battery before the product is scrapped.
This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

Installing the Nedis SmartLife app

Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
Open the Nedis Smartlife app on your phone.
Create an account with your e-mail address and tap Continue.
You will receive a verification code on your e-mail address.
Enter the received verification code.
Create a password and tap Done.
Tap Add Home to create a SmartLife Home.
Set your location, choose the rooms you want to connect with and tap Done.

Adding the product to the Nedis SmartLife app

Plugging the micro USB cable A is required to connect the product to a Wi-Fi network.

Plug A into the micro USB charging port A.
Plug the other end of Ai into a suitable 5.0 VDC; 1.0 A USB power supply.
Do not use a USB power supply with a higher voltage.
The Wi-Fi indicator LED A blinks every 0.5 second to indicate the product is ready for pairing.
Press and hold the Wi-Fi button A to activate the Wi-Fi pairing. A blinks every 1.5 seconds to indicate the product is searching for a Wi-Fi network.
Tap + in the Nedis SmartLife app.
Select the device type you want to add from the list.
Follow the instructions in the Nedis SmartLife app.
Make sure you connect the product to a 2.4 GHz Wi-Fi network.
Rename the product after it has been found and added.
After confirming you can control the product with your smartphone.
To connect your SmartLife account to Amazon Alexa and/or Google Home, set it up using the “Smart Life” action or skill. For more details check the instruction on either Amazon or Google.

Placing the batteries (optional)

The product works either on batteries or with a micro USB cable and power adapter.
Disconnect the product from the power source before placing or removing batteries.
Use only size AAA batteries (not included) for this product.

Open the battery compartment A.
Place 4 batteries into A.
– Make sure to match the (+) and (-) polarity markings.
Close A.
Make sure A6 is completely closed to ensure no water can run into A. A blinks 0.5 second on and 3 seconds off to indicate the batteries are connected.

Installing the product (image C)

Position the product and a water reservoir. Choose between:
Option A: Place the product on a flat, stable surface. Place a water reservoir close to the product.
Option B: Click the mounting clip A on the back of the product. Use A to mount the product to or near a water reservoir.
Fill the water reservoir with water.
Press the irrigation tube A into the water inlet A.
Cut a piece off A. Make sure A reaches the bottom of the water reservoir.
Connect A to the water filter A.
Place A in the water reservoir.

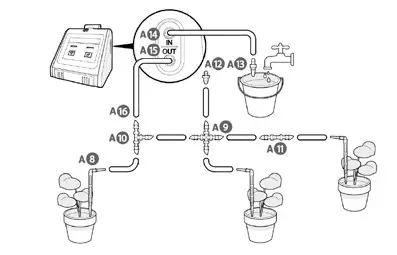

Create an irrigation network using A and the provided connectors A . See an installation example in image C.
Insert the arrow drippers A into the ends of A for every irrigation point.
off any remaining tube ends of A with end plugs A.
Connect the irrigation network to the water outlet A.

Using the product

Disconnect the product when freezing temperatures are expected, to avoid potential freeze damage.
Use the app to set and operate the product.
For more information about the working and possibilities of the app, consult the extended manual online.

Manual irrigation

Press the manual irrigation button A to irrigate the time set in the app. The irrigation indicator LED A lights up to indicate the product is irrigating.
Press A to manually stop the cycle.

Automatic irrigation

Automatic irrigation is only available in the app.
Plugging Ai is required to set or change the automatic irrigation settings.

Plug A into A.
Plug the other end of Ai into a suitable 5.0 VDC
; 1.0 A USB power supply.
Do not use a USB power supply with a higher voltage.
Set the desired irrigation frequency at How often B. Select a delay between 1 hour and 7 days.
Set the desired irrigation duration at B. Select a duration between 6 seconds and 30 minutes.
Tap Auto Run B to start the automatic irrigation schedule. After confirming the automatic irrigation settings, the Working Status B changes to Auto. The product starts the countdown to the first irrigation at Next Irrigation B. The product starts irrigating for the selected duration. The Remaining Watering Time B shows a countdown until the current irrigation ends. When the first irrigation has finished, the product will irrigate again after the selected delay.

Status indicator LED

Irrigation indicator LED A1	Blinks every 0.5 second.	Lack of water.
Irrigation indicator LED A1	Lights up.	Irrigating.
Wi-Fi indicator LED A3	Blinks every 0.5 second.	Ready for pairing.
	Blinks every 1.5 seconds.	Searching for a Wi-Fi network.
	Blinks every 3 seconds.	Batteries almost empty.
	Blinks 0.5 second on and 3 seconds off.	Batteries connected.
	Lights up.	Paired with a smartphone.
