FISHER PAYKEL ADDD60D Integrated Single DishDrawer Dishwasher
SAFETY & WARNINGS
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in electrical shock or death.
- Read and follow the safety and warnings before operating this appliance.
Cut Hazard
Failure to use caution could result in injury.
- Ensure a 2mm minimum ventilation gap below the door is maintained.
- Ensure all packaging is removed and disposed of responsibly.
- Ensure the Knock-To-Pause module is oriented correctly before attaching.

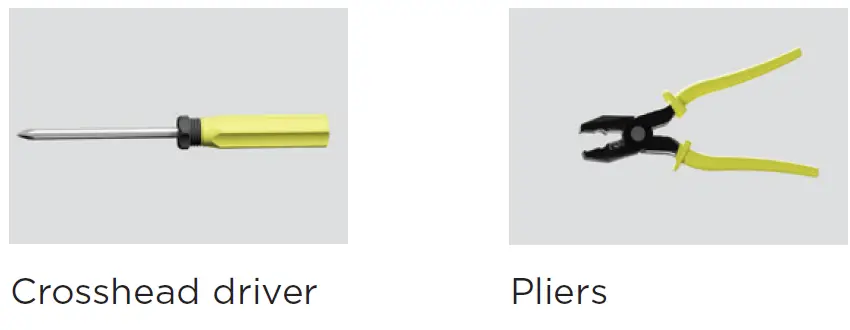

COMPONENTS REQUIRED
DOOR PANEL INSTALLATION

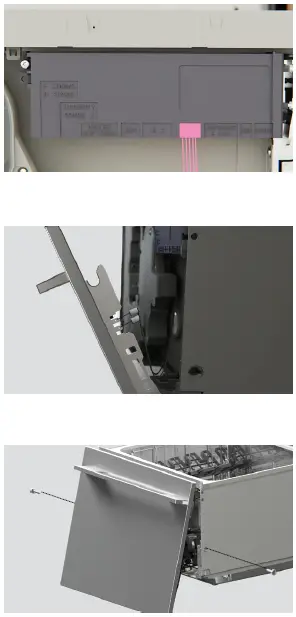

- Remove both side pins with pliers and carefully pull the panel bracket down and out slightly.

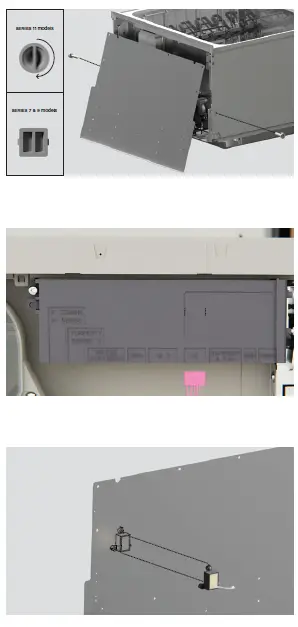

- Unplug knock-to-pause module from the controller and remove the earth wire from the bracket.
- Remove the Knock-to-Pause module from the back of the bracket.

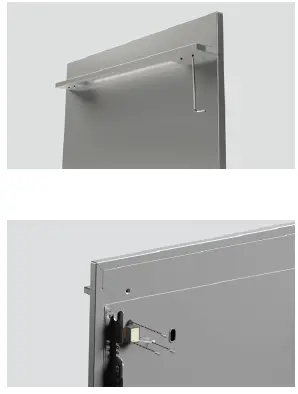

- Install the handle to the panel following the installation guidance available for your handle kit.
- Attach the Knock-to-Pause module to the panel as shown. Ensure the module is correctly oriented and is not in contact with the brackets before securing.
- Reconnect the Knock-to-Pause module to the UI 1 slot on the wash controller as shown.
- Reconnect the Earth wire to the panel bracket.
Warning: Failure to reconnect the Earth wire may result in electrical shock or death. - Carefully fit the panels onto the product. Re-insert both side pins to secure panels in place.
- Insert a crosshead driver into the hole above each side pin and rotate to adjust the panel alignment. There is a maximum travel distance of ± 1/16”(2mm). Repeat for both sides if required.
