Surpcos B08grf9jvh Swing A- Frame User Guide

USE AND CARE GUIDE
Swing A- FRAME

Important Safety Instructions

SAVE THESE INSTRUCTIONS

WARNING: This swing was as made for the explicit purpose of providing outdoor functions and is not to be used as a toy. This product is intended for normal outdoor use; however, the manufacturer recommends storing and/or covering this set when any formidable/severe weather is approaching.
WARNING: Do not use this product as support. Do not shake, lean or climb on the product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is NOT intended for commercial use and will void the warranty.

READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:

1. Close supervision is necessary when this product is used by or near children, or disabled persons, if applicable.
2. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
3. Please keep children out of the assembly area before assembly.


WARNING: Do not shake from side to side when using the product.
CAUTION: Do not locate the product near any heat source.
CAUTION: Do not place heavy objects on the swing.

MAINTENANCE PROCEDURE

Periodically check for tightness and tighten as necessary. Always check all metal parts for corrosion, paint peeling, and touch-up if necessary. Check all Tot Seats for cracks, breakage or wear and immediately put equipment out of service until any faulty parts found are repaired or replaced. Check “D” hooks at both ends and all connections points for wear. Check all moving parts, such as bushings and hangers for wear. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for public-use playground equipment.

WARRANTY

ONE YEAR FRAME LIMITED WARRANTY
WHAT IS COVERED
We warrant the frames to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover the warranty. We reserve the right to make substitutions with similar merchandise if the model in question is no longer in production.
Contact the Customer Service Team at [email protected] or visit www.surpcosstore.com

Pre-Assembly

Note:

1. More than one person may be required to assemble this product.

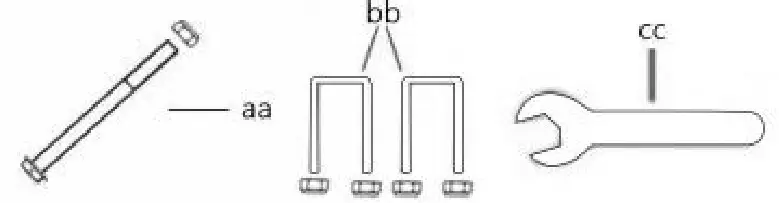

2. Hardware not shown to actual size.

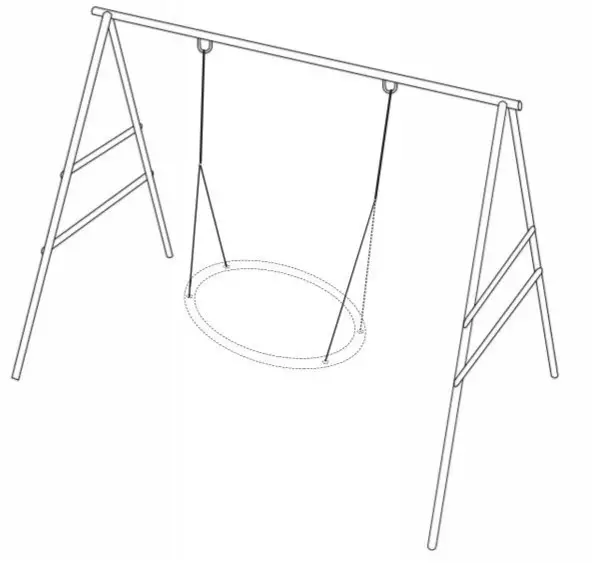

COMPONENTS

Assembly

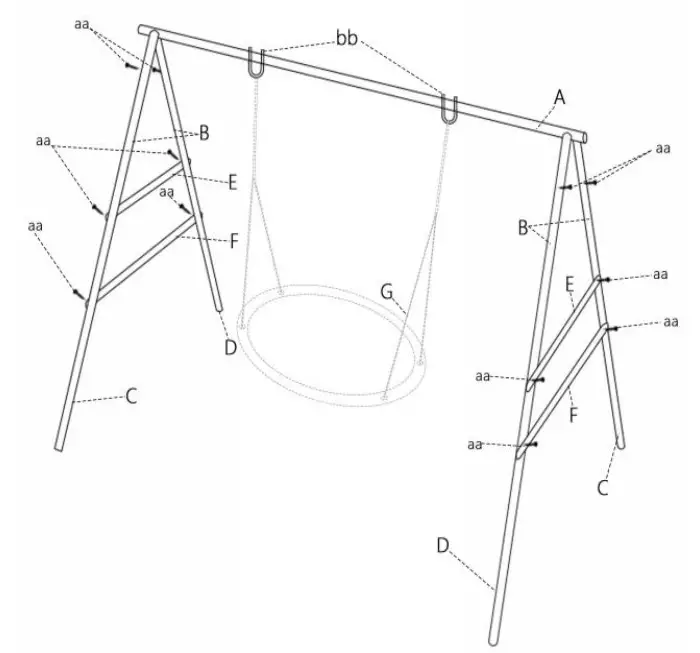

Assembling the swing frame

1. Attach four Swing legs upper (B) to the Swing top bar (A) using the Combination bolt and Lock Nut (aa).
2. Attach the two Right legs lower (C) to the Swing leg upper (B) using the Combination bolt and Lock Nut (aa). Repeat for Left leg lower(D).
3. Attach the two Short sidebars (E) to Swing leg upper (B) using the Combination bolt and Lock Nut (aa).
4. Attach the two Long sidebars (F) to the Right/Left legs lower (C/D) using the Combination bolt and Lock Nut (aa).
5. Attach the two Tree swings (Optional)(G) to the Swing top bar (A) using U combination bolt and Lock Nut (bb).
6. Tightening the bolts.

Questions, problems, missing parts? Before returning to the store, email Surpcos store Customer Service.
9 a.m. – 6 p.m., EST, Monday – Friday.
[email protected]
www.surpcosstore.com

THANK YOU
We appreciate the trust and confidence you had placed in Surpcos through the purchase of this swing frame. We strived to continually create quality products designed to enhance your life. Visit us online to see our full line of products available for your need. www.surpcosstore.com
Thank you for choosing Surpcos!
