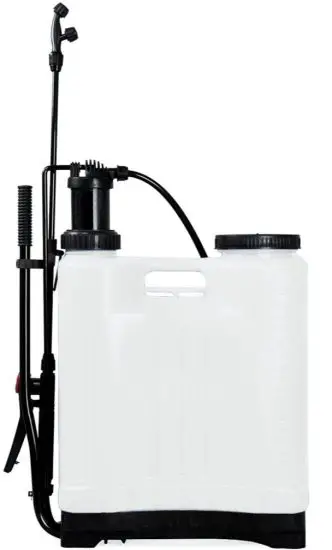

3518 12L 12 Litre Backpack Knapsack Pressure Crop Garden Weed Sprayer
User Manual
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold on this condition, which no representative of the company can waive or change.
- The sprayer is designed for the application of agricultural chemicals, disinfectants, cleaning agents, etc. Do not spray caustic or corrosive solutions like these will damage the sprayer.
- Wash the inside of the spray tank with clean water after usage.
- Always wear the correct personal protective equipment whilst using, cleaning, and servicing the sprayer.
- Lubricate the felt sealing washer at the top of the air chamber with light oil at regular intervals. This ensures smooth operation of the air pump and prevents leakage of spray liquid.
- Do not expose the sprayer to strong sunlight when storing as to prevent deterioration of the tank.
- Store the Knapsack Sprayer in a well-ventilated area, out of the reach of children and animals.
- Always direct the spray downwind of the operator. Spraying into the wind will result in operator contamination.
- Do not smoke whilst using the sprayer.
- If the product is damaged or has any defects, please contact [email protected]
DO NOT ATTEMPT TO FILL THE KNAPSACK SPRAYER
ABOVE THE CAPACITY LIMIT.
Assembly Instructions
Parts List:
If you are missing any of the below parts please contact [email protected]
Please be aware that you will be referring to this parts list throughout the assembly process.
| 1 | Rocker bar fixer |
| 2 | Rocker |
| 3 | Air compartment |
| 4 | Seal valve |
| 5 | Seal ball |
| 6 | 0-ring |
| 7 | Valve cap |
| 8 | Rocker bar sleeve |
| 9 | Split |
| 10 | Rod |
| 11 | Rocker rod |
| 12 | Pressure lid of the air compartment |
| 13 | Sealing washer |
| 14 | Air chamber |
| 15 | 0-ring |
| 16 | Handle |
| 17 | Rocker bar fastener |
| 18 | Bottom case |
| 19 | Buckle |
| 20 | Filter |
| 21 | Medical chest lid |
| 22 | Net of the hose connector |
| 23 | Host |
| 24 | Not of lanceconnector |
| 25 | Clue cap |
| 26 | Switch |
| 27 | 0-ring |
| 28 | Lance |
| 29 | 0-ring |
| 30 | Nozzle |
| 31 | Straps |
| 32 | Hooked hook |

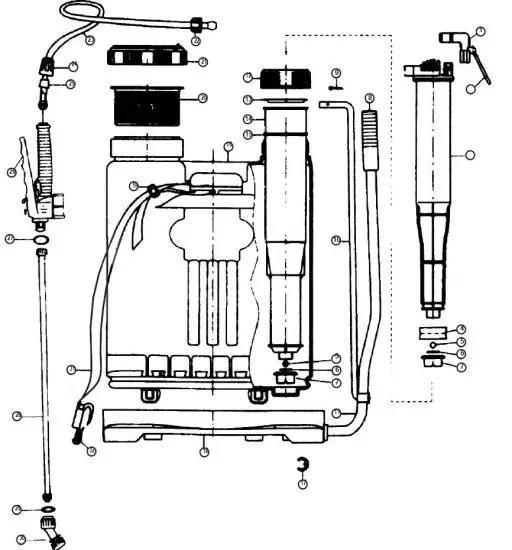

Assembly Diagram
HAVE A QUESTION ABOUT YOUR PURCHASE?
OUR DEDICATED CUSTOMER SERVICES TEAM ARE HAPPY TO HELP CONTACT THEM VIA:
TELEPHONE: 020 3600 2255
EMAIL: [email protected]
LIVE CHAT: www.oypla.com
PLEASE RETAIN A COPY OF THESE INSTRUCTIONS FOR FUTURE CONSULTATION
OYPLa.COM
An Official OYPLA Branded Product
Imported by Oypla.com LLP, Uxbridge, UB8 2FX
USER MANUAL Model No: 3518 / 3519 / 3553
