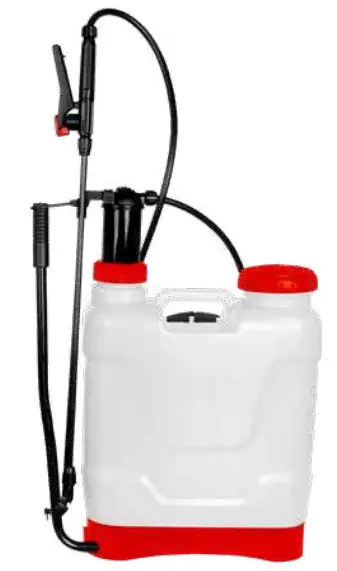

KNAPSACK SPRAYER

Before the first operation, please read the owner‘s manual carefully!
CONGRATULATIONS ON YOUR PURCHASE OF OUR HECHT PRODUCT.
This instruction manual is intended primarily to familiarise the operator with safety, installation, operation, maintenance, product storage and troubleshooting and it provides important information. So keep it well so that other users can find information in the future too. Due to the constant development and adaptation to the latest demanding EU standards, technical and optical changes can be made to the products without prior notice. Photos and drawings in this instruction manual may only be illustrative. Therefore, no legal claims related to this instruction manual, in particular any slight minor deviations from the information contained therein, can be applied if the product continues to meet all of the above mentioned certifications, standards and declarations, and works as described. In case of confusion, contact the importer or retailer.

SAFETY SYMBOLS

	Your machine must be used with care. Therefore, stickers have been placed on the machine, to remind you pictorially of main precautions to take during use. Their meaning is explained below.
	These stickers are considered as a part of the machine and can´t be in any case removed fromthe machine. WARNING: Keep the safety signs clear and visible on the equipment. Replace the safety signs if they are missing or illegible.
	Proper interpretation of these symbols will allow you to operate the product better and safer. Please study them and learn their meaning.
	Read the instruction manual.
	Wear protective clothes
	eep chemicals away from children always!
	Use eye protection.
	Keep machine in a safe distance from fire or other heats!Don´t keep it on sunshine.
	Use a respirator.
	Keep people and animals at a safe distance. People and animals must not come into contact with the spray!
	Wear protective gloves!
	Wear protective rubber boots
	Use head protection!
	Maximum capacity
	Weight
	Permissible operating pressure
	Product conforms to relevant EU standards.
IAN	Identification Article Number

SPECIFICATIONS

	HECHT 4166	HECHT 4122
Maximum capacity	16 l	12 l
Weight	3,1 kg	2,8 kg
Weight Minimum / maximum spray lance length with gun	71 cm	58 cm
Hose length	1,5 m
Hose diameter	5 – 5,5 mm
Permissible operating pressure	0,2 – 0,4 Mpa
Max. temperature of the spraying liquid	40°C
Bowl diameter	45 mm
Operation travel	60 – 80 mm
Operating conditions	+5°C – +40°C

Specifications are subject to change without notice.

SPRAY-HEAD FLOW RATE TABLE

Head type	Pressure	Flow rate
Single conical spray head	0,3 – 0,4 Mpa	0,7 – 0,85 l/min.
Double conical spray head	0,2 – 0,4 Mpa	1,3 – 1,6 l/min.
Single fan spray head	0,2 -0,3 Mpa	0,5 – 0,6 l/min.

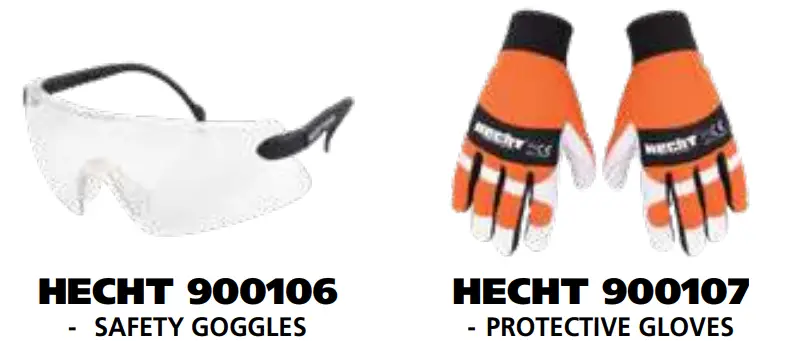

RECOMMENDED ACCESSORIES

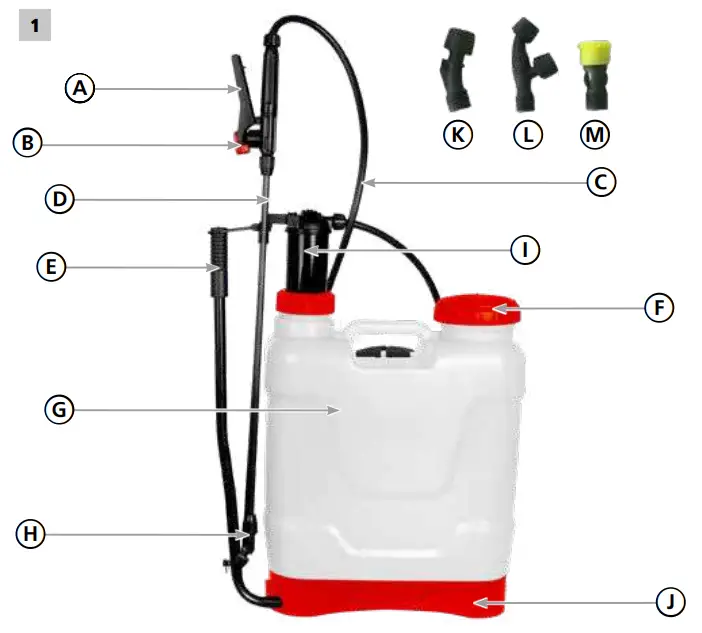

MACHINE DESCRIPTION

A	trigger
B	trigger lock
C	hose
D	spray rod
E	pumping handle
F	cap of the water tank
G	tank
H	spray head
I	pump piston
J	bottom – base
K	fan style spray head
L	conical spray head
M	4 hole adjustable spray head

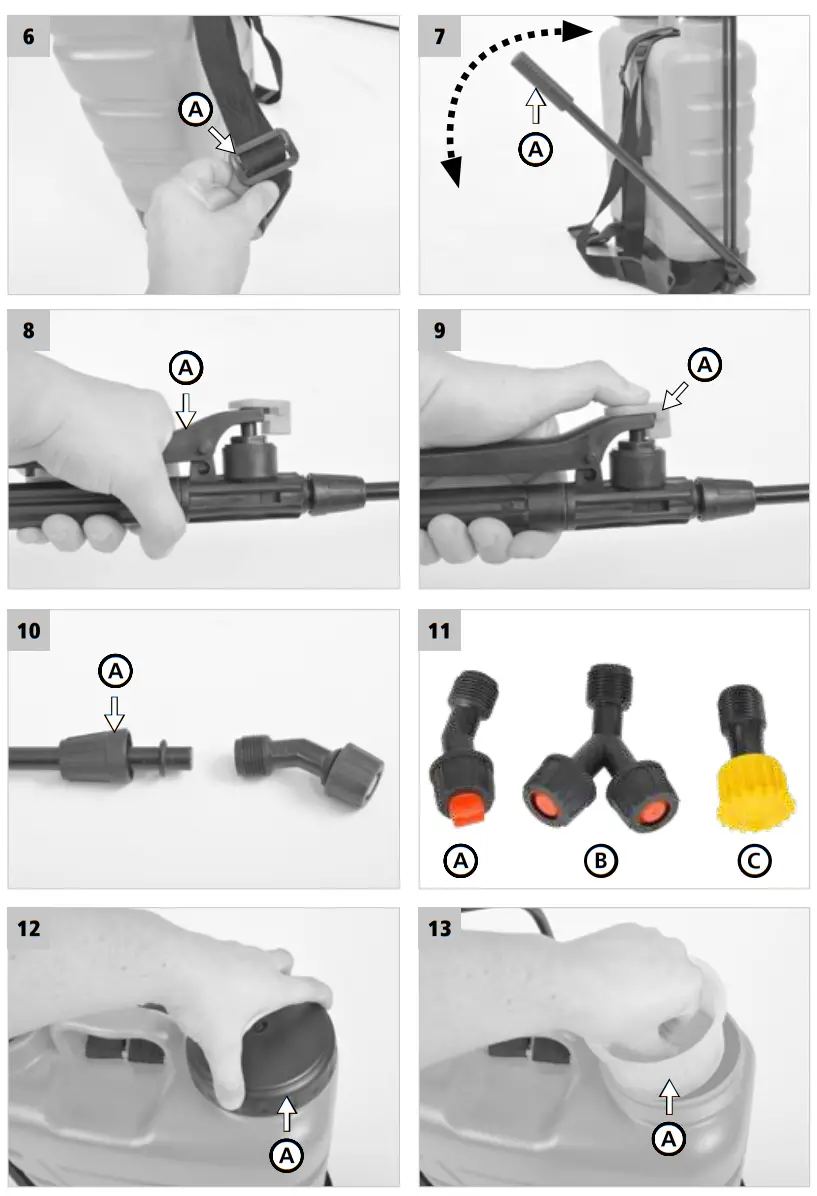

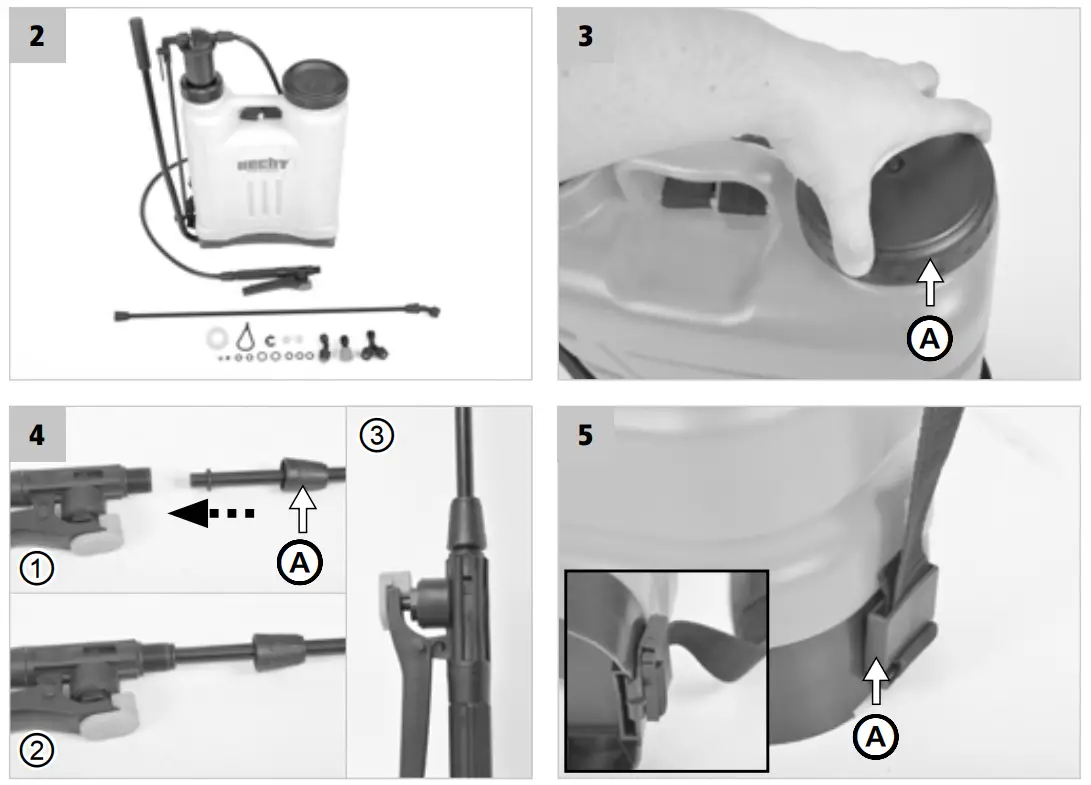

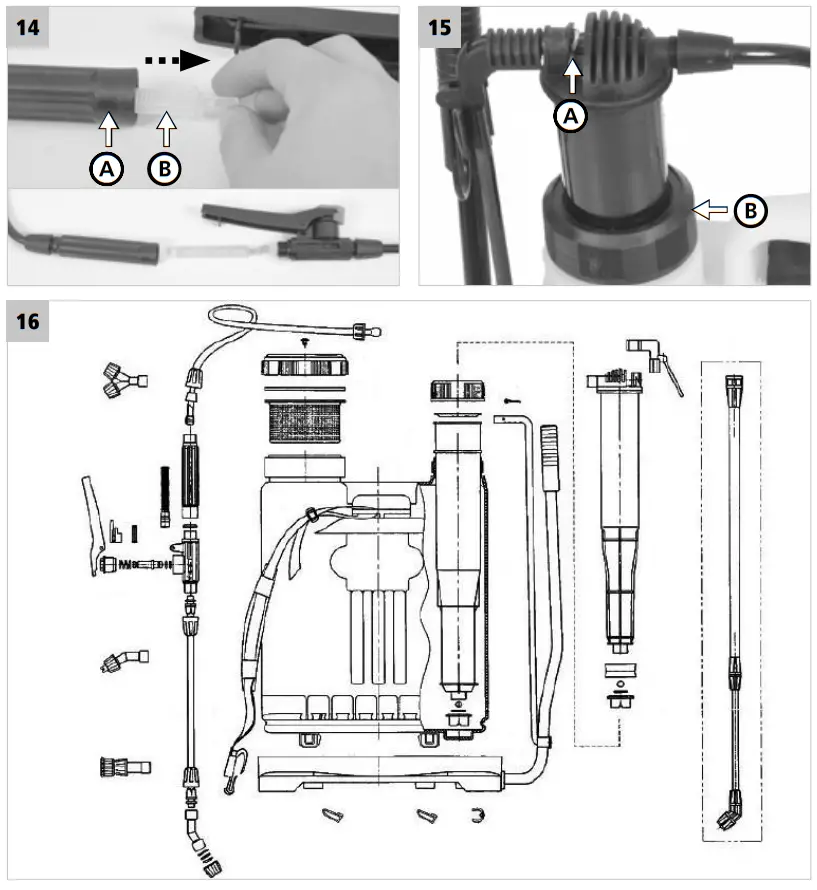

ILLUSTRATED GUIDE

CONFIRMATION OF FAMILIARITY WITH THE OPERATION OF THE DEVICE

The name of device
Model
Date of purchase *
Serial number of the machine *
Buyer (name, company name), address *
confirm that I received the device fully functional and complete with instructions and proof of purchase from an official authorized dealer HECHT MOTORS and accept the terms of this warranty.
* fills seller
Buyer´s signature

CENTRAL SERVICE

HECHT MOTORS s.r.o., U Mototechny 131, 251 62 Tehovec, Tel: +420 323 601 347, Fax: +420 323 661 348, www.hecht.cz, [email protected]
