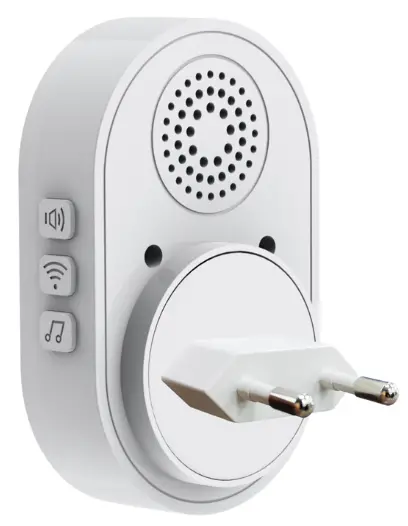

Doorsafe 433 MHZ WIFI GONG ALARM User Manual
WIFI & 433 MHZ CHIME + ALARM
PAIRING TRANSMITTER & SENSORS
There are 2 ways to pair the transmitter or an alarm sensor with the chime:
Without the app

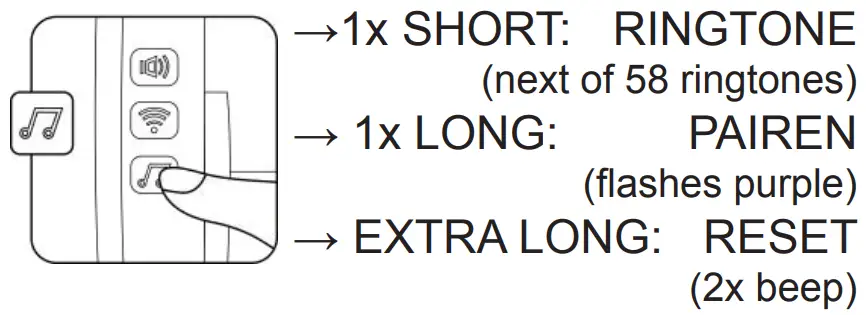

- Long press the bottom button with the musical note.
The LED ring will flash purple. - Now trigger the transmitter or the sensor 1 time. The LED ring flashes green 2 times.
Via the app
- Add chime to the app
- Open the app
- Select: ‘Accessory’
- Select: ‘+’
- Now trigger the transmitter or the sensor 1 time.The LED ring flashes green 2 times.
- Set the type per sensor
- Set the Zone mode
Zone modes:
- Delay: only active after the delay time
- Normal: directly active at ‘Away Arm’
- Home: not active with ‘Home Arm’
- 24 hours: always active (e.g. smokesensor)
- 24 hours silent: always active, silent alarm
ADD TO THE APP
Download the app
Smart Life
or
Tuya Smart
(=same app)
- In the app, select: ‘SENSORS’
- Select: ‘ALARM (WIFI)’
- Enter your own WiFi password

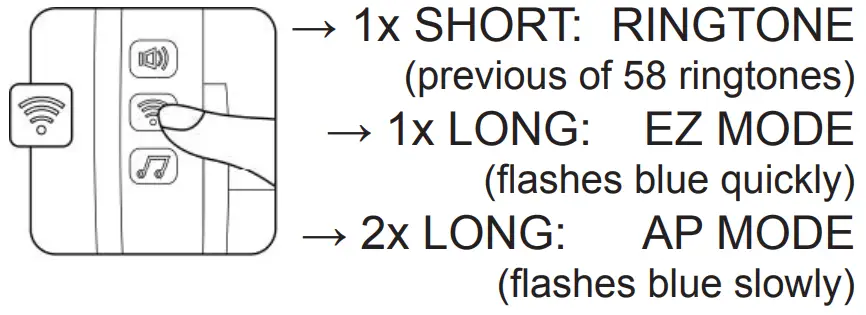

- Press 1 x long on the middle button on the chime with the WiFi symbol: the LED ring then quickly flashes blue
- Then press this button on the chime once more:
the LED ring slowly flashes blue - Select in the app: ‘NEXT’
- Select: ‘Blinking slowly – AP mode (left)’
- Let the smartphone connect to the WiFi network that emits the chime. This network starts with: ‘SMARTLIFE-XXXX’
- Now return to the app and the app will pair with the chime.
- If you wish, change product name.
INSTRUCTIONS & SPECIFICATIONS
- Connect the 2 wires coming from the transmitter to the doorbell.
- Switch on the transmitter by sliding the switch to ON.
- The transmitter works on a 3V CR2032 button cell battery. Loosen the 2 screws to be able to replace this battery.
- Plug the chime into a 110 – 220 Volt socket.
- The gong contains a 3.7V 300mAh Lithium battery that can keep the gong working for 5 hours in the event of a power failure.
- The chime can connect to a 2.4 Ghz Wi-Fi 802.11b/g/n network.
- Connect the transmitter and alarm sensors with a 433Mhz wireless signal to the chime.
- Up to 100 sensors and 10 remote controls can be connected to the chime
- The chime has 58 different ringtones.

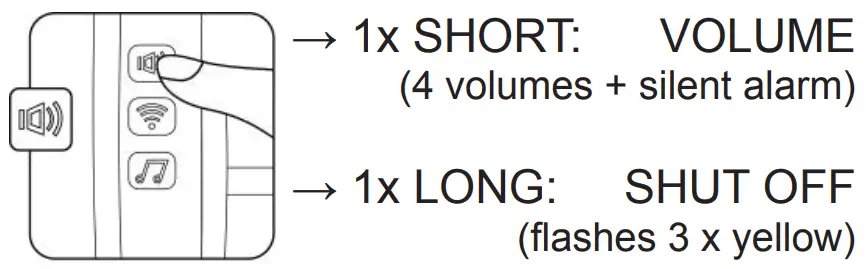

- The chime has 5 different volume including silent.
- The maximum volume is 85dBA
- Operating temperature: -10 ~ 55 C.
