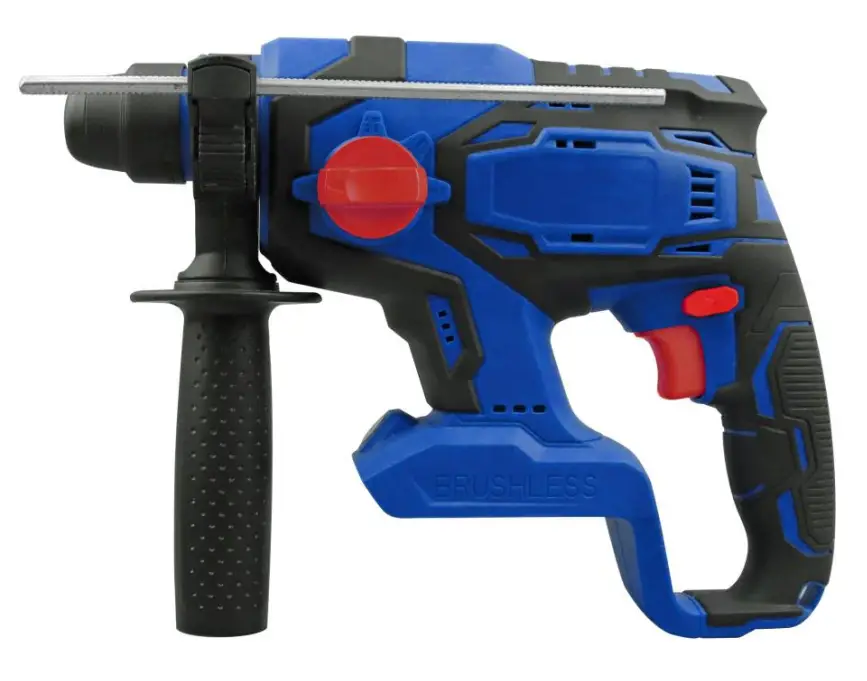

westfalia WABHBL18 18 V Battery Powered Rotary Hammer

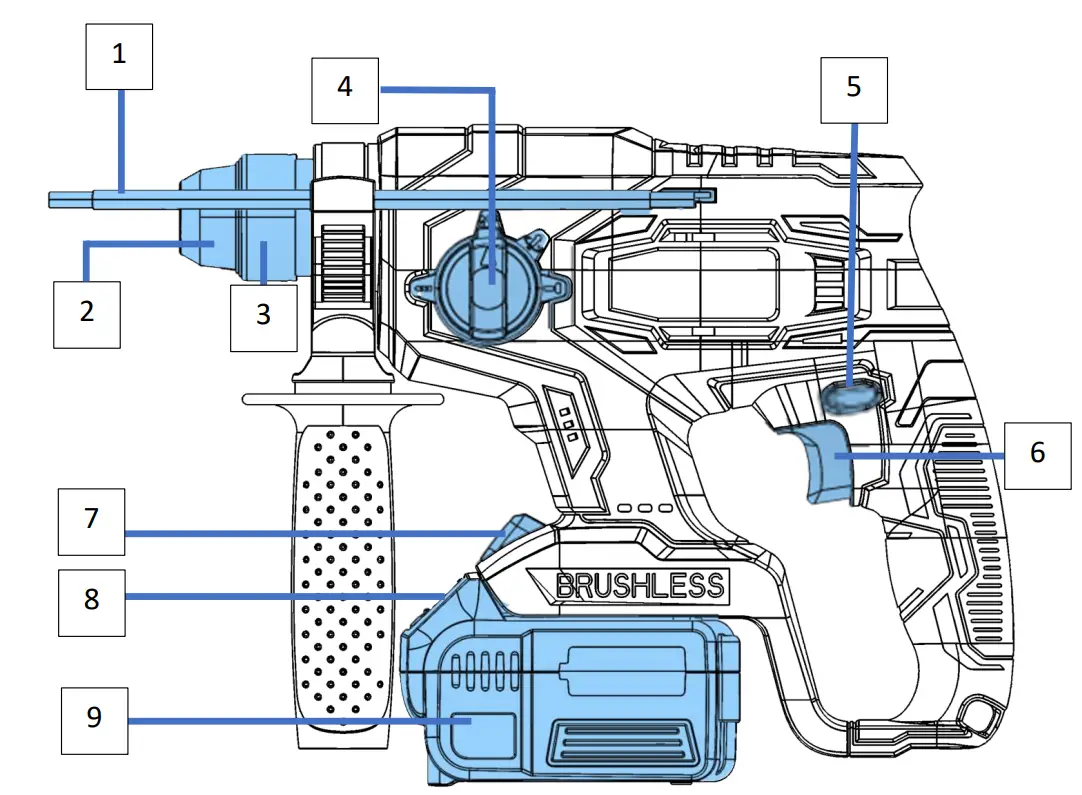

OVERVIEW
- Depth stop
- SOS+ tool holder
- Locking sleeve
- Function selector
- Forward/reverse switch
- ON/OFF trigger switch
- LED-working light
- Battery release button
- Battery*
not included in delivery
INSTALLATION
Dear Customers,
Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

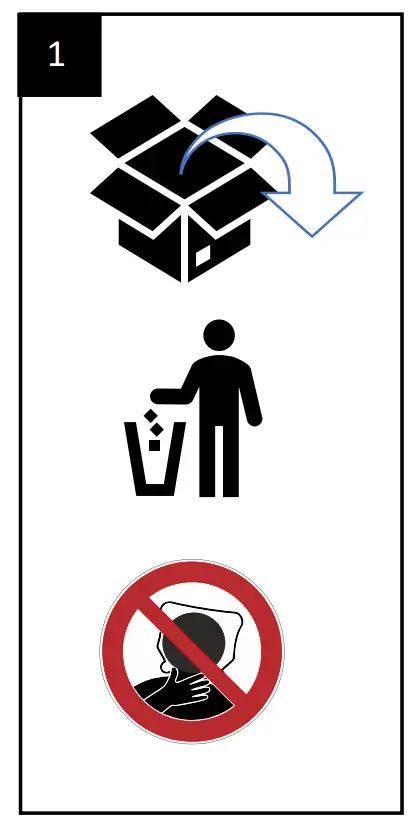

- Unbox device

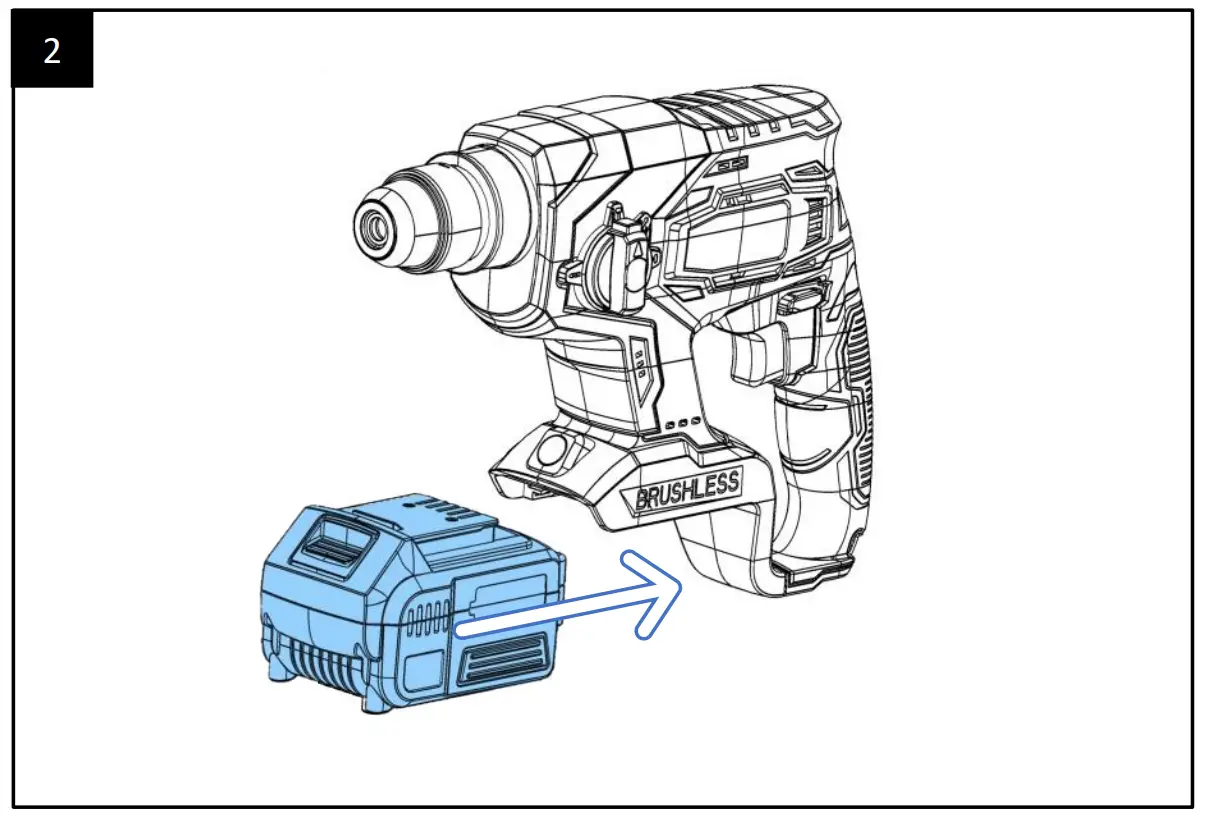

- Insert battery

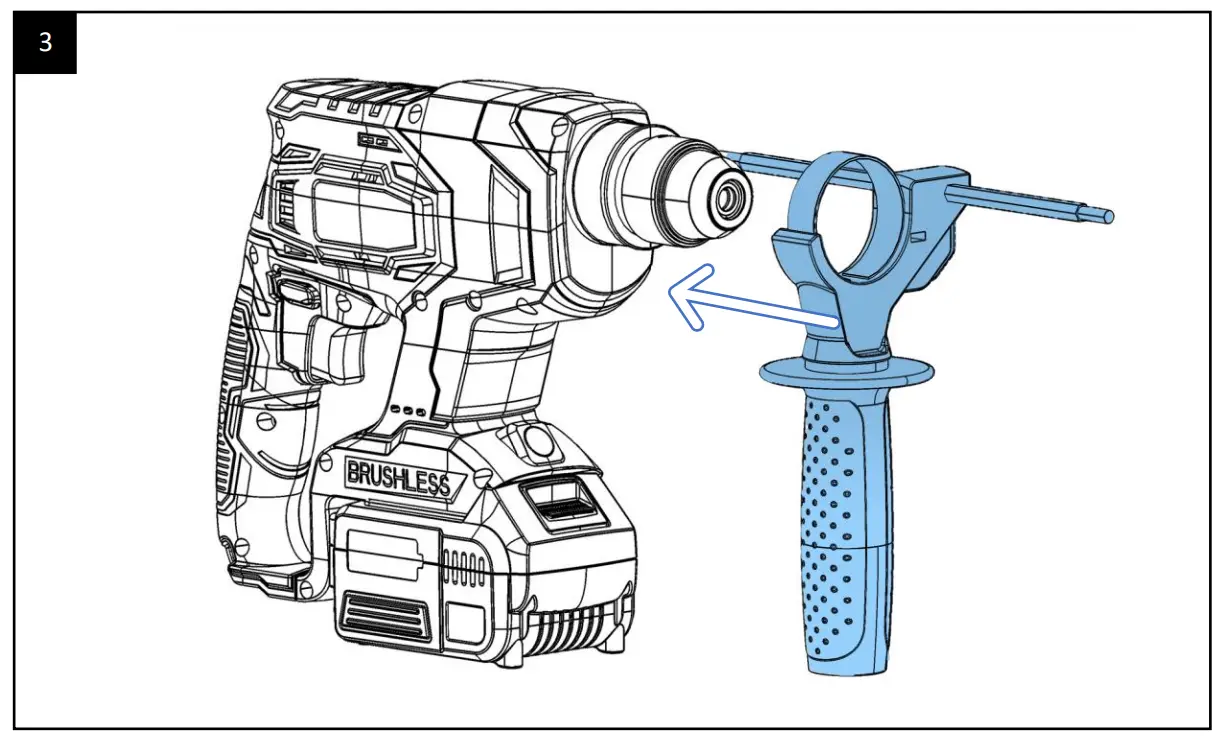

- Attach additional handle

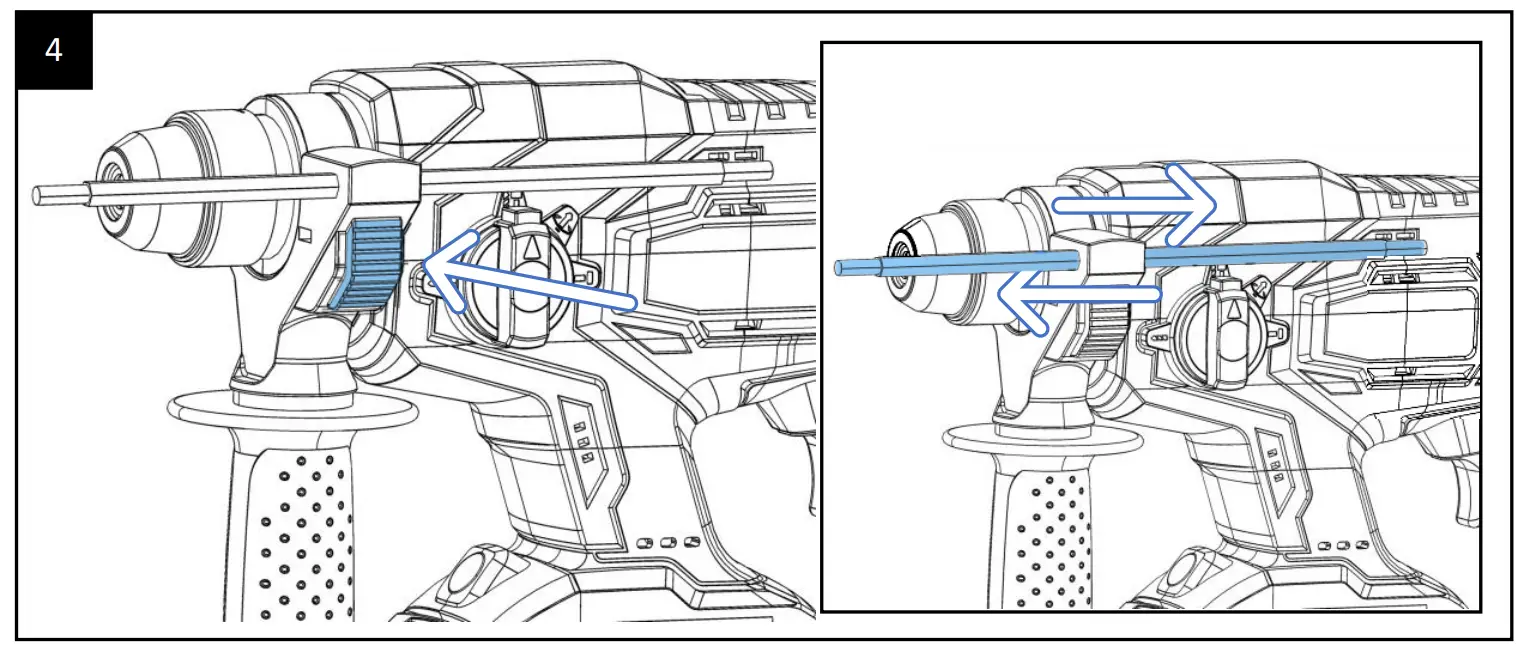

- Adjust depth stop

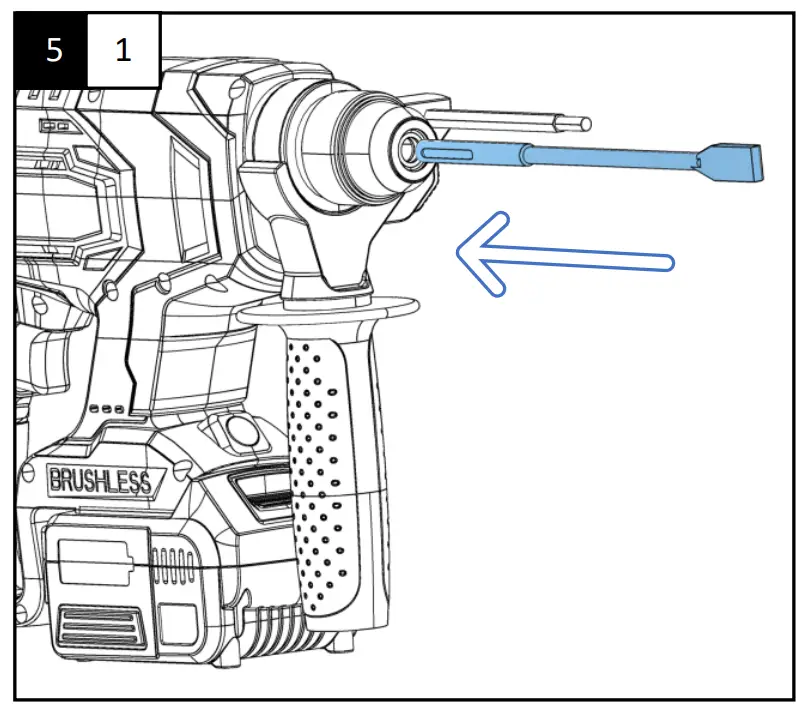

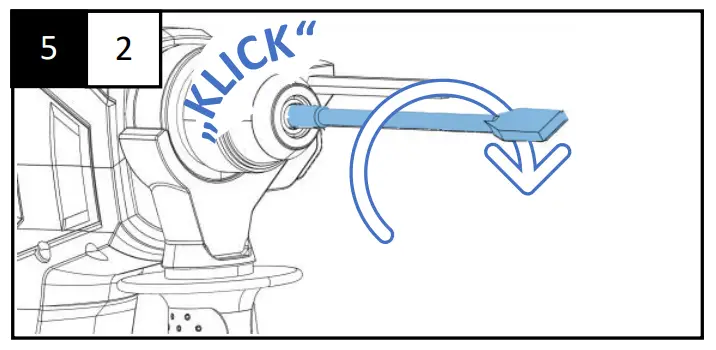

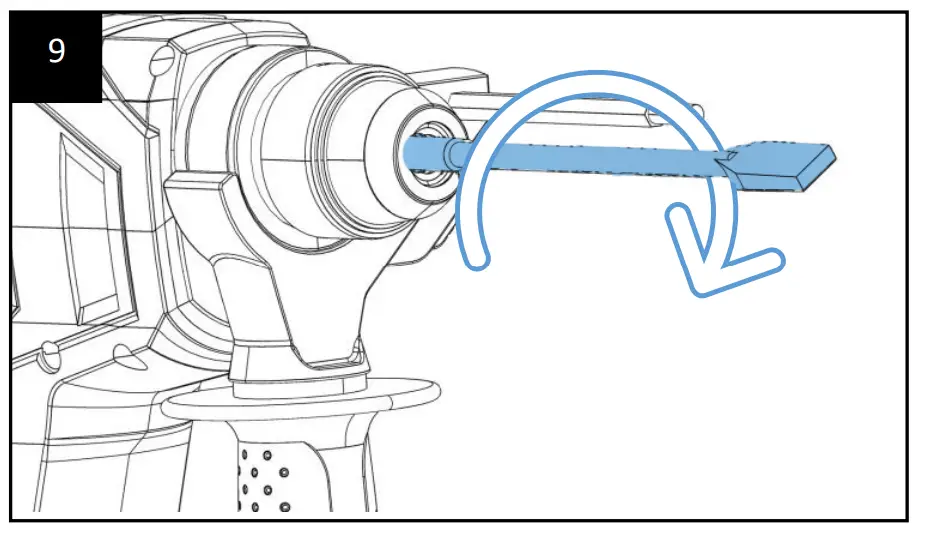

- Insert drill/chisel

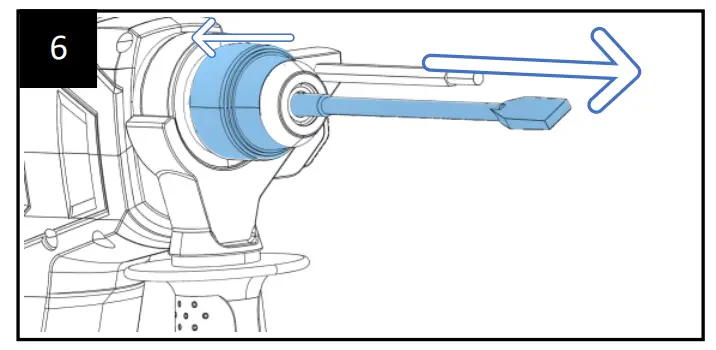

- Remove drill/chisel

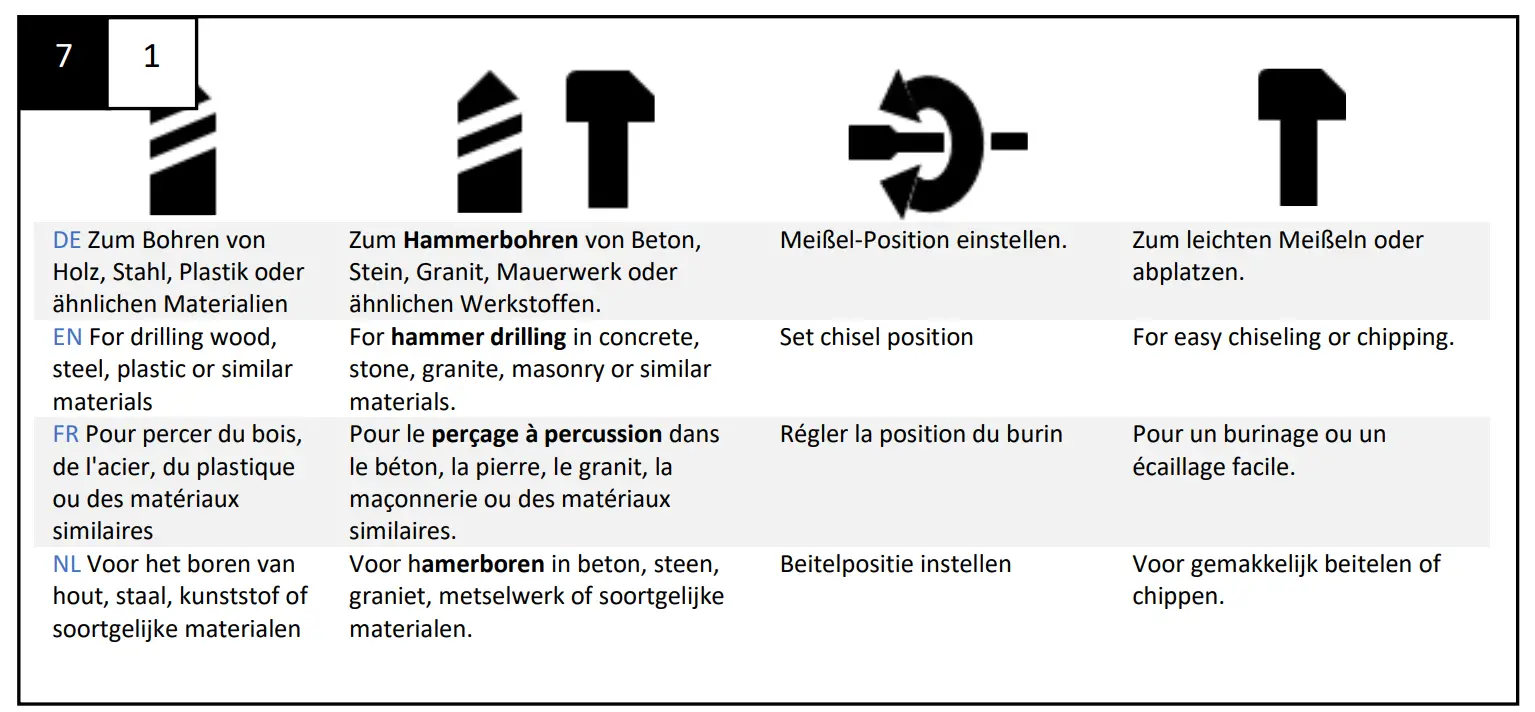

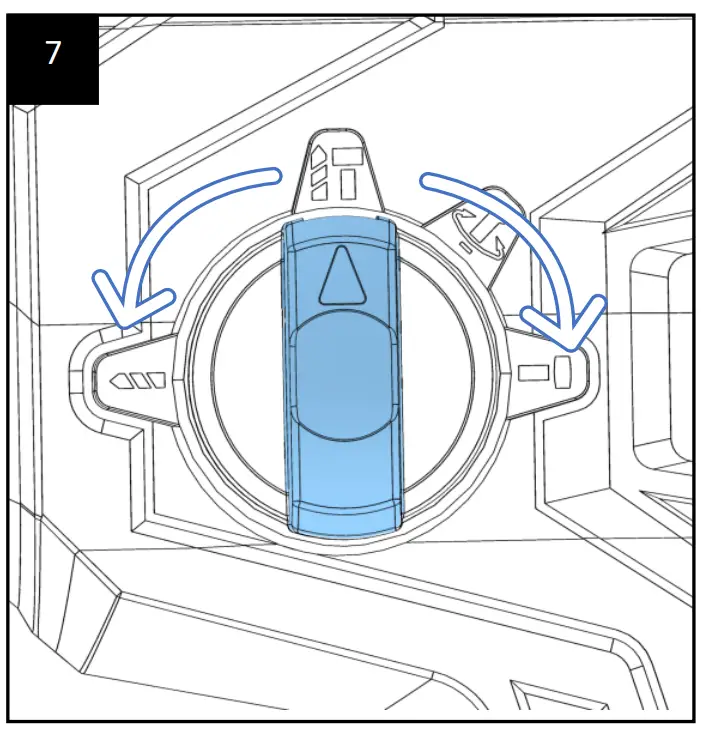

- Select function

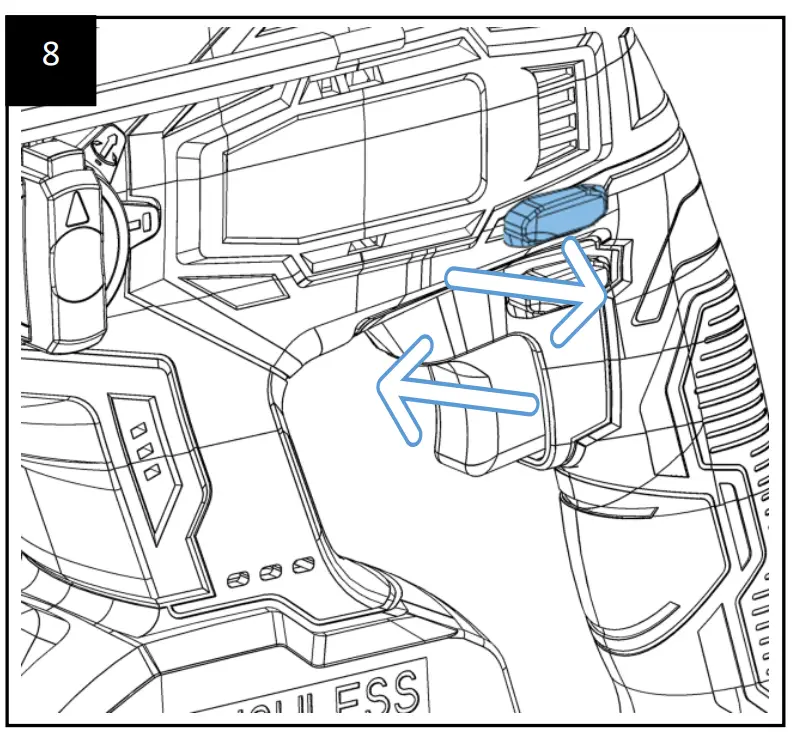

- Select forward/reverse rotation
- Adjust chisel position

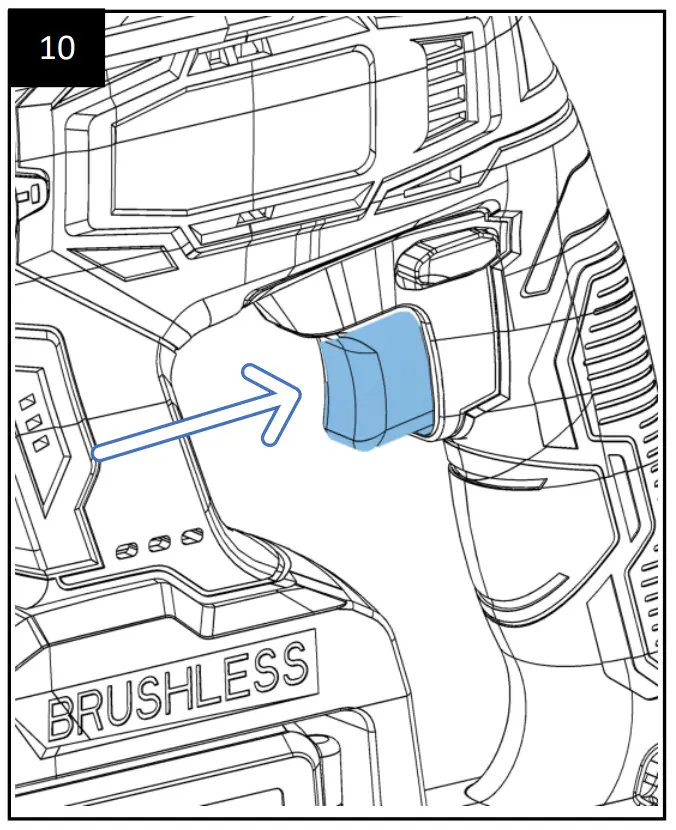

- Start device

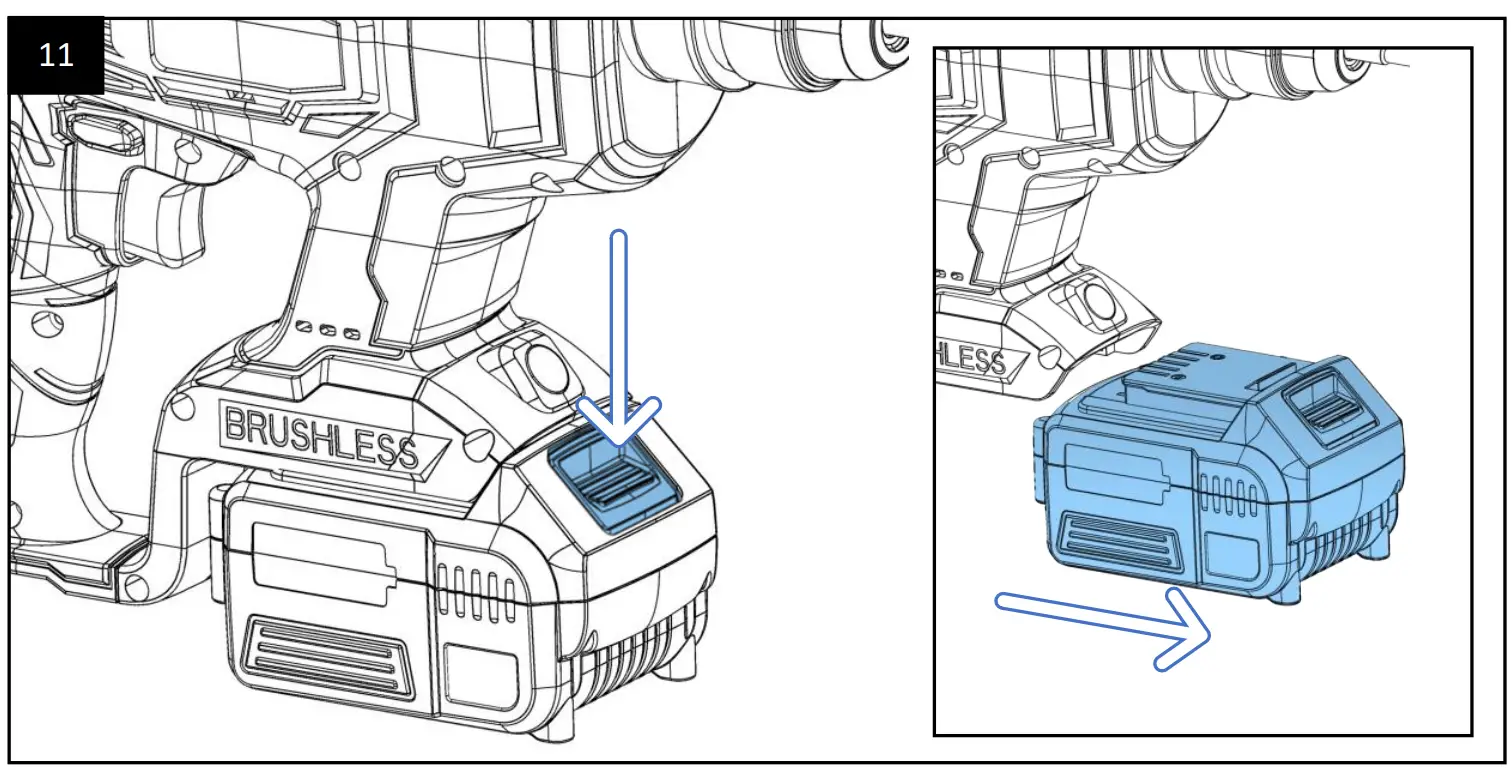

- Remove battery
TECHNICAL DATA
| No-load speed | 0 – 1400 min-1 | Impact rate | 0 – 4550 min-1 |
| Nominal voltage | 18 V | Single impact force | 1,8 J |
| Tool holder | SDS+ | Weight (without battery) | 1833 g |
| Dimensions | 275 x 200 x 90 mm | Battery*1 | 18 V LI-Ion |
| Stahl | 13 mm 24 mm 27 mm | stole concrete wood | 13 mm 24 mm 27 mm |
| a volé | 13 mm 24 mm 27 mm | Protection class | II |
| Sound pressure level | LpA: 96,8 dB(A) KpA: 3 dB(A) | Sound power leve | LwA: 107,8 dB(A) KwA: 3 dB(A) |
| Hand-arm vibration main handle | ah,HD: 4,72 m/s2 ah,CHeq: 10,76 m/s2 | Hand-arm vibration | ah,HD: 6,87 m/s2 ah,CHeq: 14,21 m/s2 |
is according to the basic requirements, which are defined in the European Directives and their
amendment
2006/42/EG Maschinen
2006/42/EC Machinery
60745-1:2009+A11:2010, EN 60745-2-6:2010
The technical documentations are on file at the QA department of the Westfalia Werkzeugcompany.
Hagen, 9
the of May, 2022
*2 ENGLISH The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method. The declared vibration total value may also be used in a preliminary assessment of exposure
The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise.
Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.
 | Batteries do not belong in the household garbage. For battery disposal please check with your local council. |  |
Dear Customer,
Please help avoid waste materials.
If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area
