Steinel 110085317 Nightmatic Nightmatic Plus User Manual

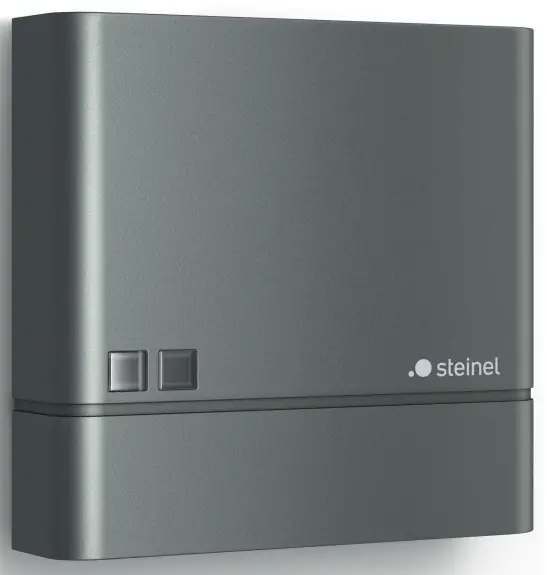

steinel 110085317 NightmatIC NightmatIC Plus

Complete user manual
Visit steinel.de/110085317.pdf or scan qr code given below

ABOUT COMPANY

• STEINEL Vertrieb GmbH
• Dieselstraße 80-84, 33442 Herzebrock-Clarholz, Germany
• www.steinel.de
• +49 5245-448-188
• [email protected]

Find your local service: steinel.de/contact

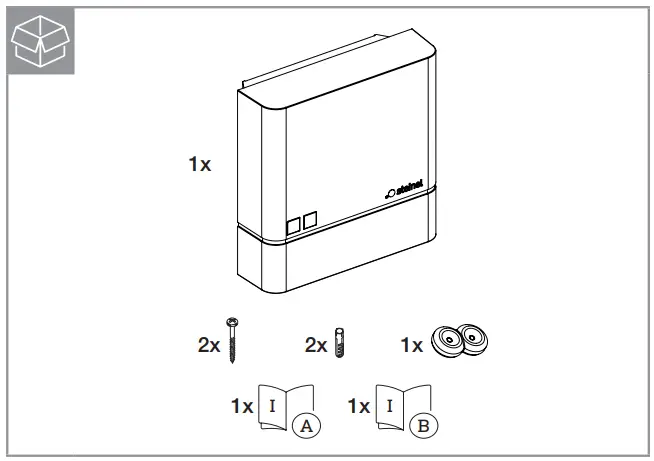

BOX CONTENT

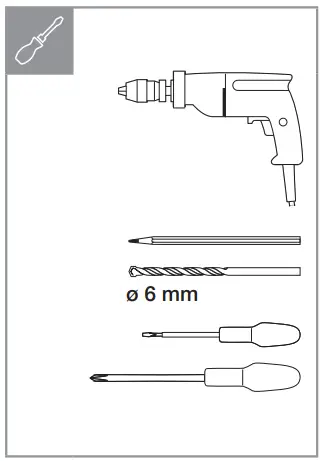

TOOLS NEEDED

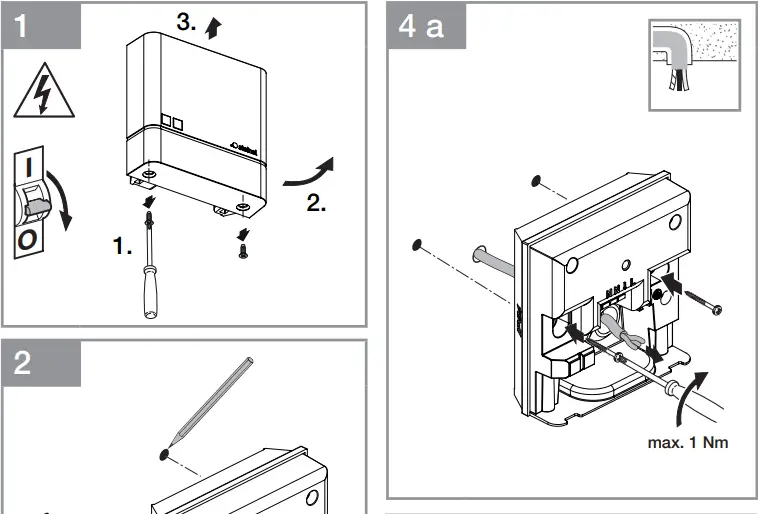

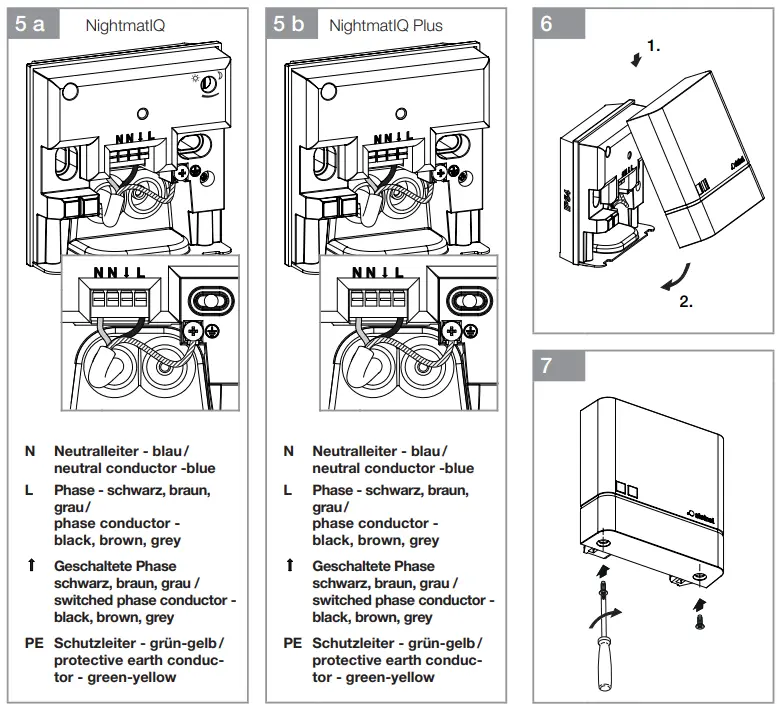

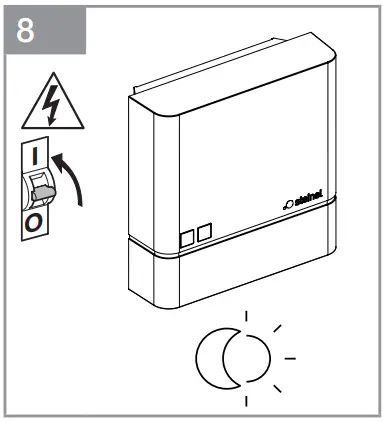

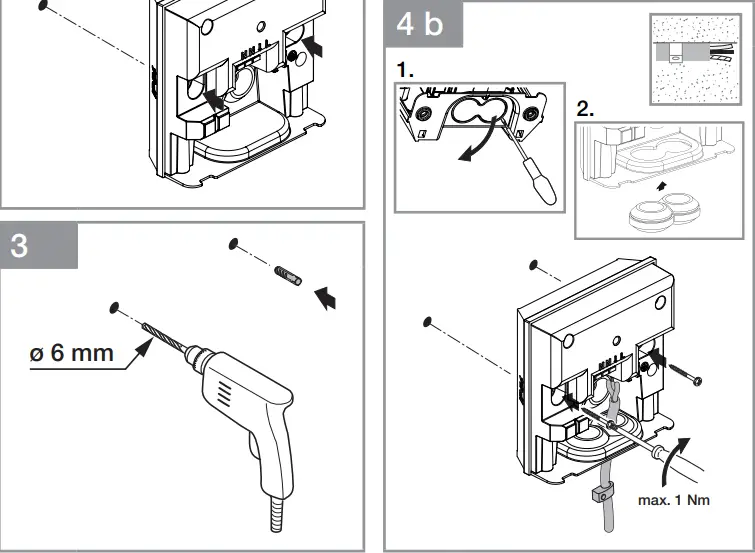

INSTALLATION INSTRUCTION

Steinel Connect App

Declaration of conformity:
Hereby, STEINEL Vertrieb GmbH declares that the radio equipment type IS 180 digi HD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

Technical Data

• Dimensions (H x W x D): 95 x 95 x 38 mm
• Power supply: 220-240 V, 50/60 Hz
• Power consumption stand by:
  • NightmatIQ: < 0,7 W
  • NightmatIQ Plus: < 0,5 W
• Twilight setting:
  • NightmatIQ: 1 – 75 Lux
  • NightmatIQ Plus: 1 – 1000 Lux
• Sensor system: Phototransistor
• Temperature range: -20 bis +40°C
• Frequency Bluetooth (only NightmatIQ Plus): 2,4 – 2,48 GHz
• Transmission power Bluetooth (only NightmatIQ Plus): 5 dBm/3mW
• IP rating: IP 54
• Incandescent / halogen lamp load: 1000W
• Low-voltage halogen lamps: 1000VA
• Fluorescent lamps, uncorrected: 500VA
• Fluorescent lamps, series-corrected: 500VA
• Fluorescent lamps parralel compensated: 500VA
• Fluorescent lamps EVG: 250W
•  LED < 2W: 100W
• 2W < LED < 8W: 125W
• LED >8W: 250W
• Capacitive load: 88µF
