Instruction Manual
MIFOR-70 System

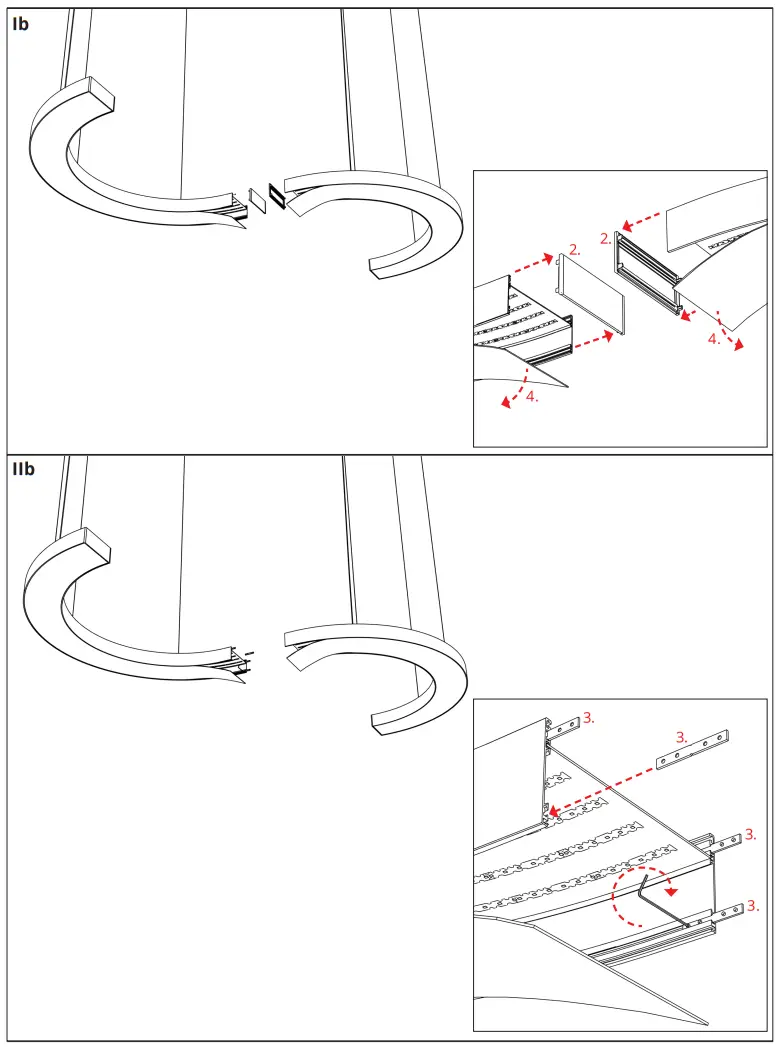

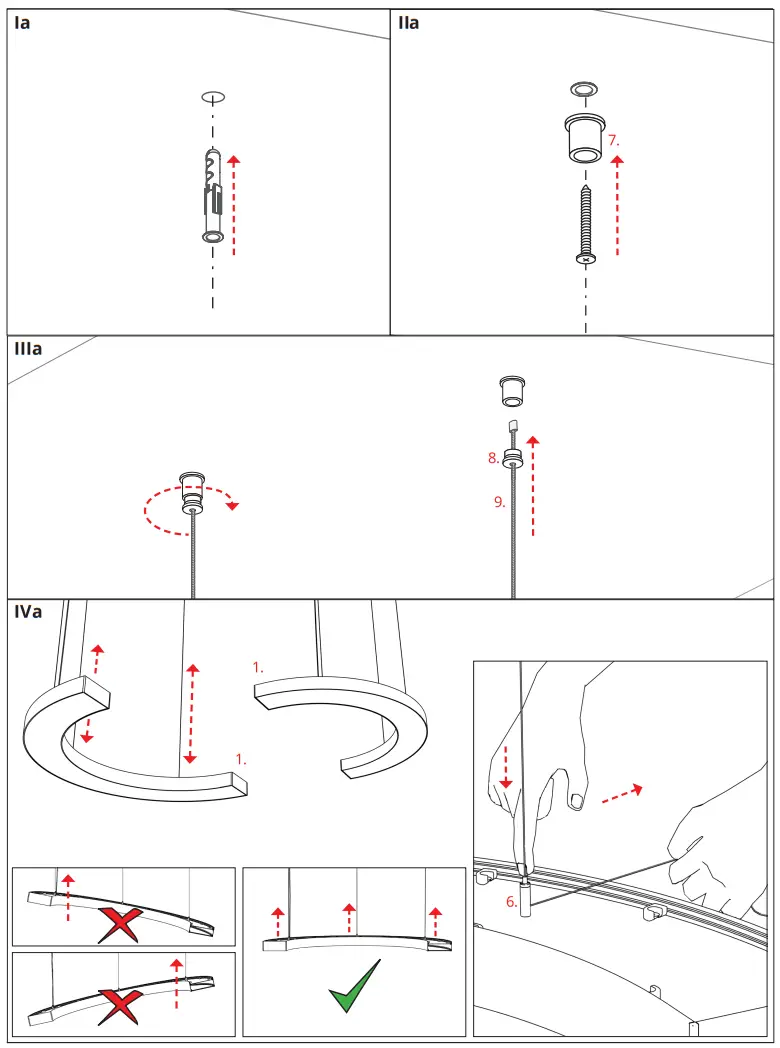

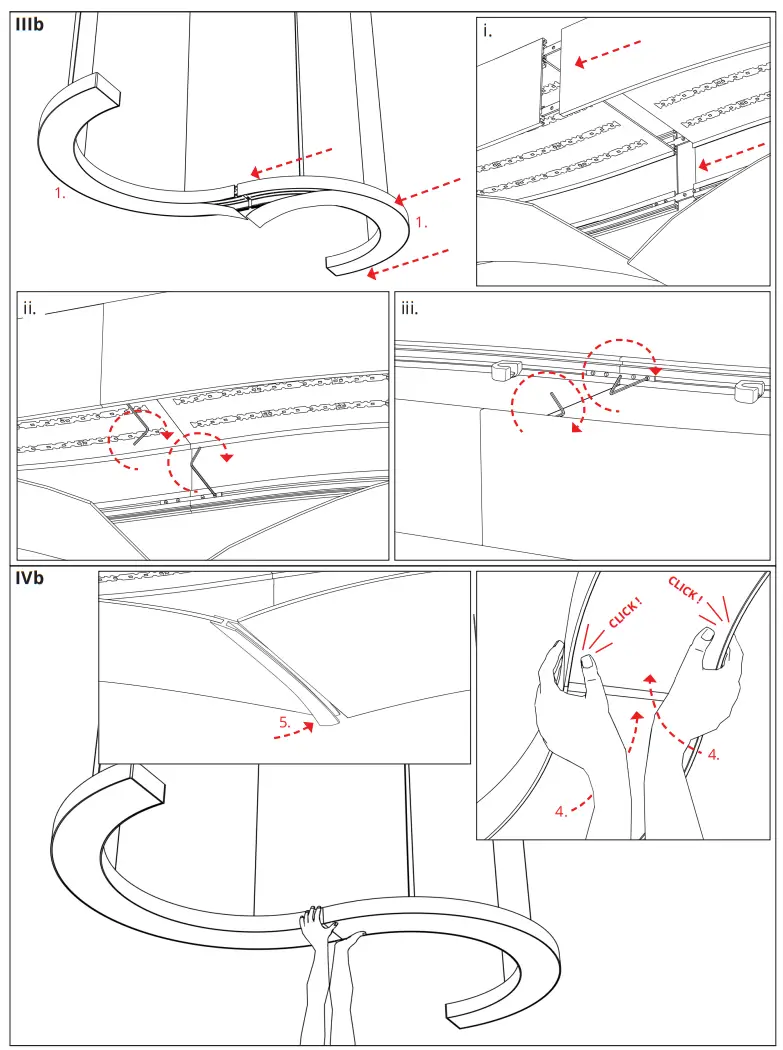

FOR-70 instruction for suspending and connecting modules

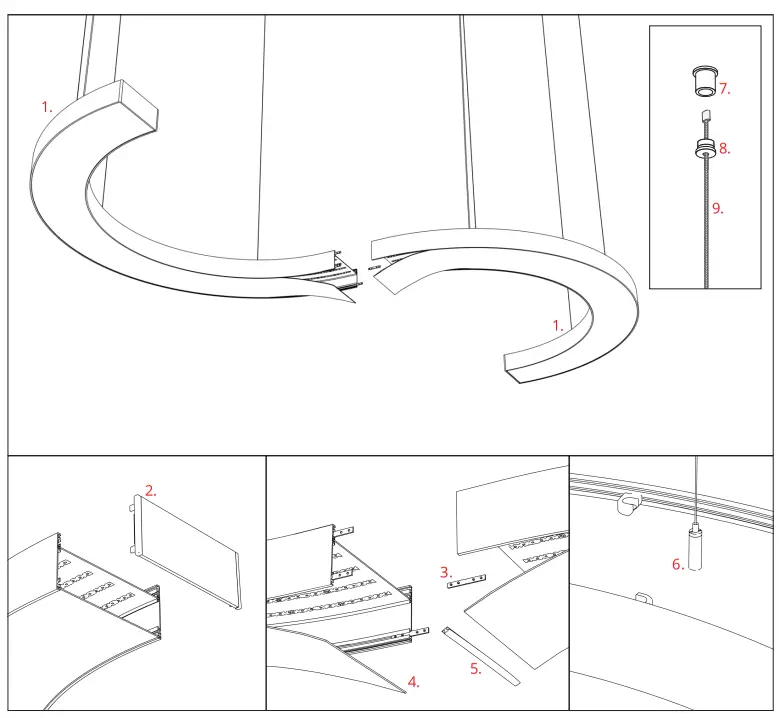

- Shape module in the MIFOR-70 system
- Blanking wall
- Connector
- Diffuser
- Diffuser connector
- Fastener
- Ceiling bracket
- Nut
- Wire with clip
NOTE! All LED tapes must be connected to a 12 V or 24 V power supply.
IMPORTANT:
Not all possible mounting procedures are presented here.
More mounting procedures and related accessories can be found at www.KlusDesign.eu.
Drawings in these instructions are simplified and only approximate the actual shapes.
