HILTI MIQC-90-HT Set MIQ System
Product Information
- Product Name: MIQ
- Model Number: 3
- Torque: 84 Nm (62 ft-lb)
- Thread Size: 19 M12-F

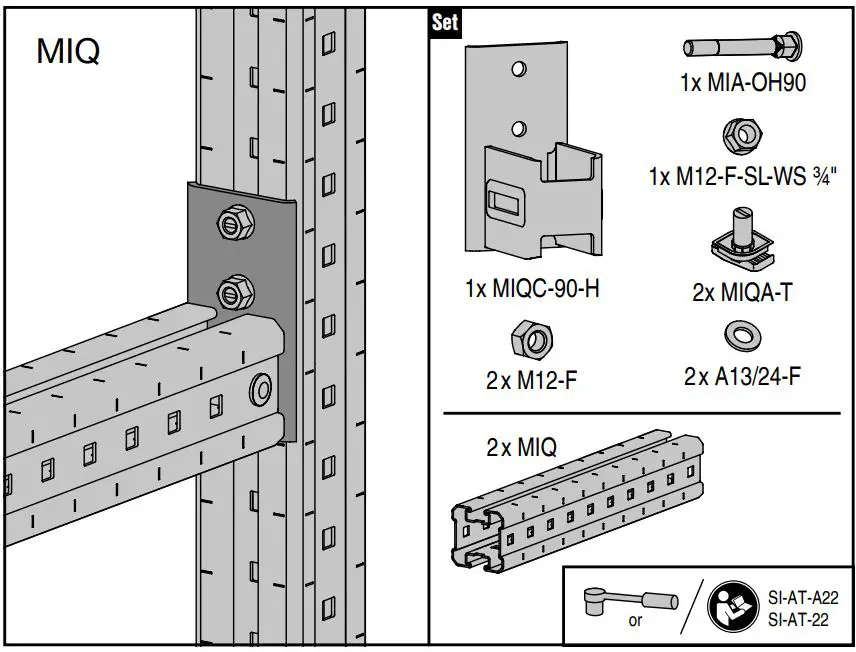

- Components in Set: 1x MIA-OH90, 1x MIQC-90-H, 2x M12-F, 2x MIQ, 2x MIQA-T, 2x A13/24-F
- Compatible with: SI-AT-A22 or SI-AT-22
- Product Code: 2125264 A4-12.2022
Product Usage Instructions
- Ensure that the product is compatible with either SI-AT-A22 or SI-AT-22.
- Before using the MIQ, make sure to assemble the components included in the set: 1x MIA-OH90, 1x MIQC-90-H, 2x M12-F, 2x MIQ, 2x MIQA-T, and 2x A13/24-F.
- Once assembled, locate the appropriate thread size (19 M12-F) for your application.

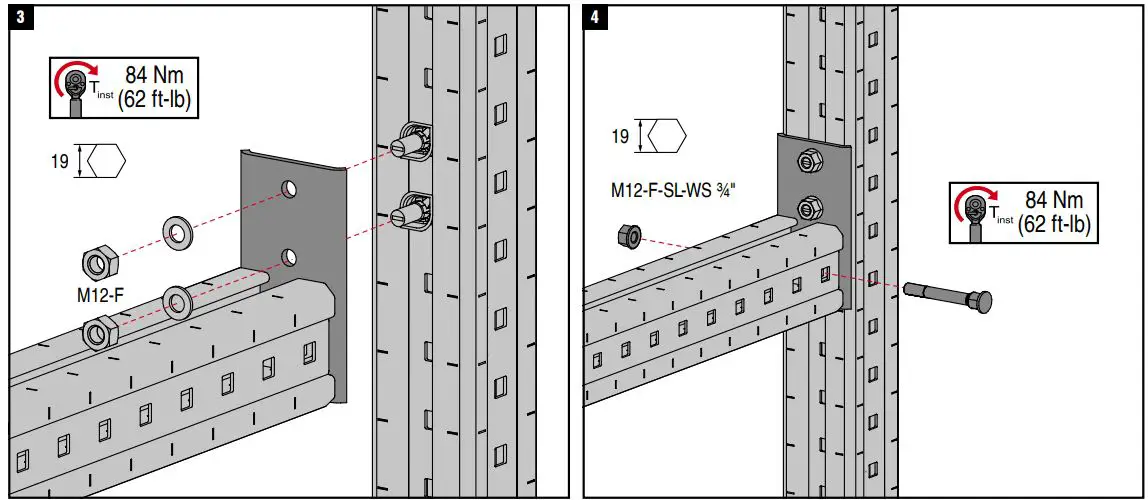

- Tighten the MIQ using a torque of 84 Nm (62 ft-lb). Use a torque wrench for accurate torque measurement.
- If required, adjust the MIQ to a different thread size (25 mm) using the MIQC-90-HT set.
Please refer to the user manual for further details and safety instructions.
What In The Box

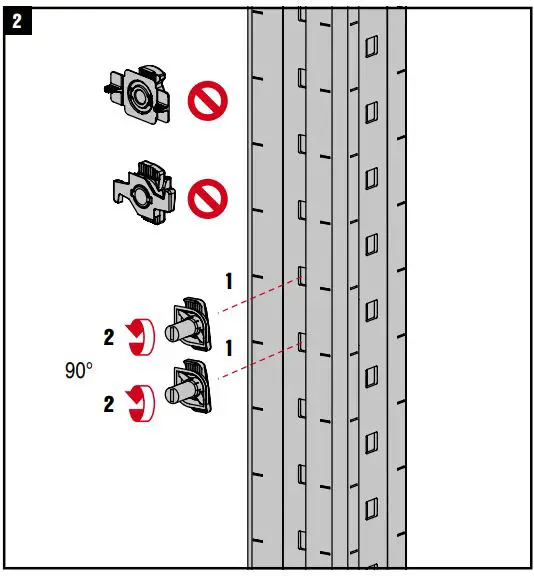

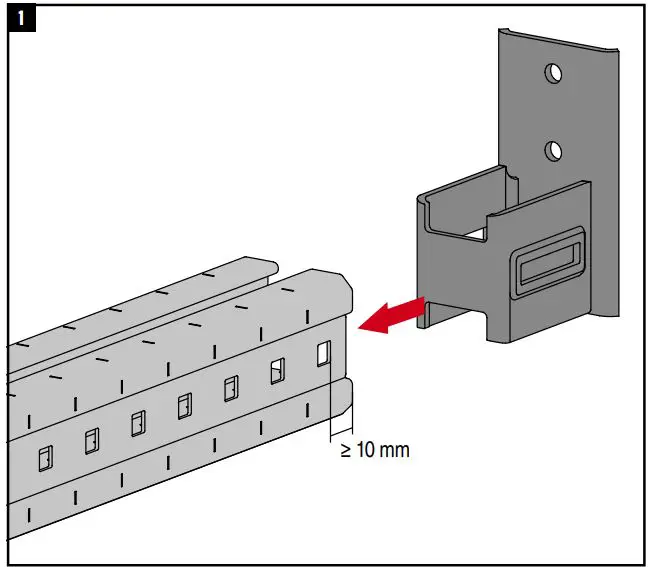

Installation Instructions

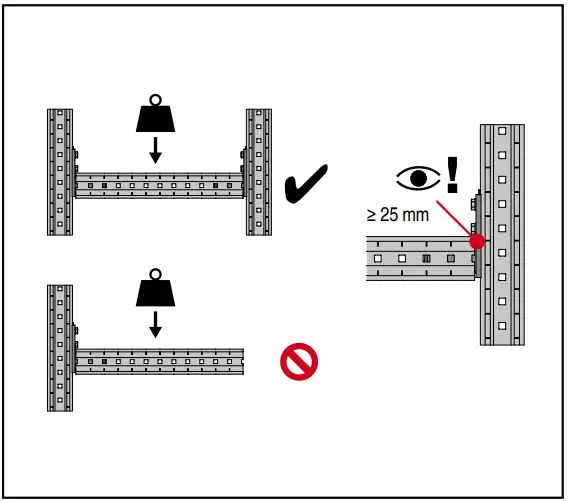

Precautions
