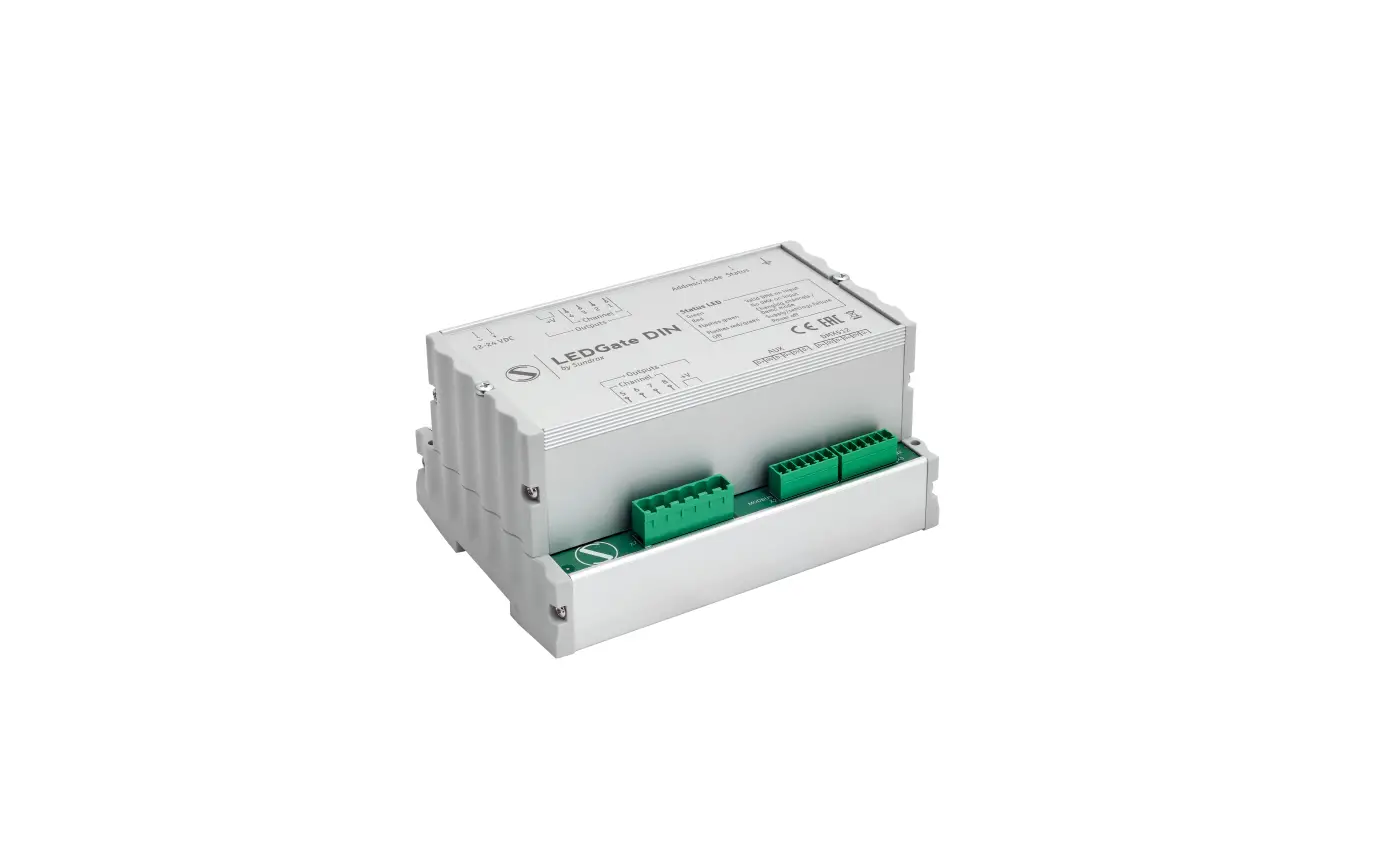

SUNDRAX LGD-1-D4LED LEDGate DIN Compact LED Driver
Specifications
| Specifications | |
| LED outputs | 4 or 8 |
| DMX512 interfaces | 1 |
| Additional port | RS-485 |
| Connectors | 2 EDGVC, 15 EDGVC |
| Control interface | DMX512 |
| Supported protocols | DMX512, RDM |
| DMX data refresh rate | 44 Hz |
| Power supply | 12/24 VDC |
| Max current per output | 10 A |
| Total current on outputs | 40 A |
| Max. power consumption | 1000 W |
| Operating Temperature | -40…+70°C |
| IP Rating | IP 20 |
| Dimensions, mm | 142 x 105 x 75 |
Safe operation
To ensure the safe and reliable operation of the devices, please observe. the following requirements. Use the device only for its intended purpose. Do not use devices that show signs of malfunctioning. Avoid strong physical impacts on the device. Protect devices and cables from contact with corrosive liquids. Whenever a fault is detected in the device, please contact the manufacturer.
General information

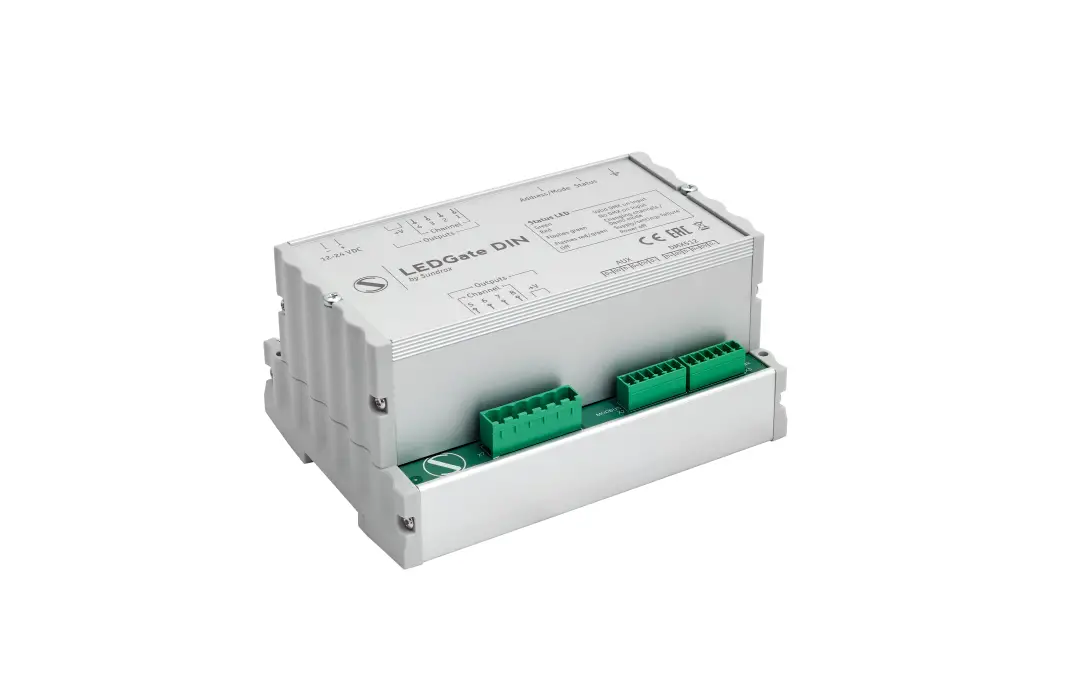

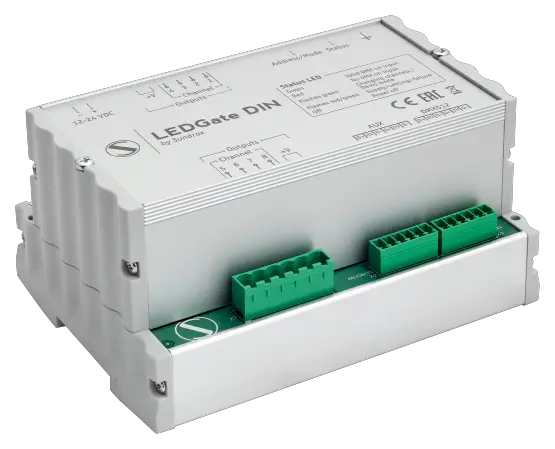

LEDGate DIN is a compact LED driver with DMX512/RS-485 input. Powered from a 12/24 VDC source, LEDGate is capable to control and dim 4 or 8 output lines for direct connection with LED equipment: aura light, driverless LED luminaires, etc, with independent short-circuit protection on each channel. Depending on the selected mode, each output channel can be controlled by 1(8-bit logarithmic) or 2(16-bit linear) DMX addresses. In 8-bit mode, each device uses 8 DMX addresses while in 16-bit mode each device uses 16 DMX addresses, where first address for each channel corresponds to high byte of intensity and the second address- to low byte of intensity. Thanks to innovative embedded algorithms, LEDGate provides a smooth, stepless regulation in full range of intensity.
Advantages
- Smooth light regulation
- 8-bit and 16-bit DMX control
- Independent short-circuit protection on each channel
- Direct connection with LED equipment
Installation
Before mounting and powering up, it is necessary to verify protective earthing and cable connections.
- Ensure the device has no damage due to transportation
- Mount devise on DIN rail
- Connect the power cable, input DMX line and LED stripes
- Set device address using DIP-switcher. The range of valid addresses starts with 001, (default value) and ends on 505. Starting with this address, device will be controlled from an external remote
RDM
The device supports DMX address assignment and 8/16 bit mode changing via RDM. To select RDM address assignment mode, set all DIP-switcher sections to OFF. In other cases the actual DMX address will be indicated in RDM parameters anyway. 8-bit and 16-bit modes can be selected via RDM by choosing the corresponding “device personality”.

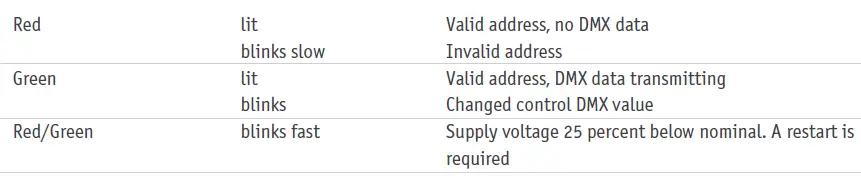

Indication

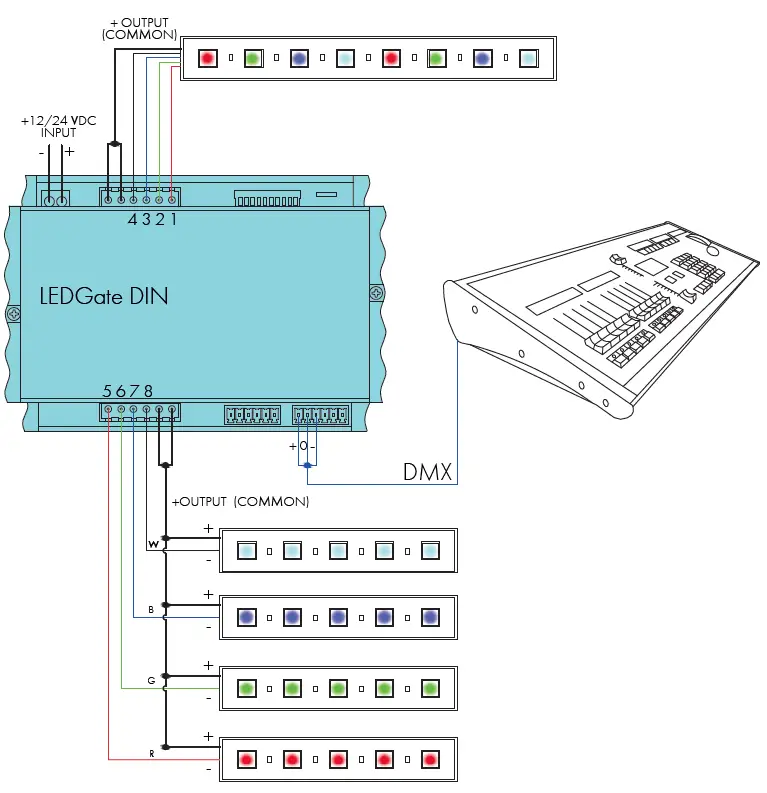

Connection scheme
Technical maintenance
Maintenance, search and troubleshooting should be performed by service personnel. The device should be free from dirt, dents, and connecting cables and wires must be intact and securely fastened.
Notes
Please send all your warranty-related questions to [email protected] All Sundrax products are covered by a 36-month warranty.
Sundrax Electronics
- 6008, First Central 200 2 Lakeside Drive, Park Royal, London NW10 7FQ United Kingdom
Phone: + 44 (0) 208 991 33 19
Email: [email protected]
Website: www.sundrax.com.
Sundrax Electronics - Professional Lighting Management
