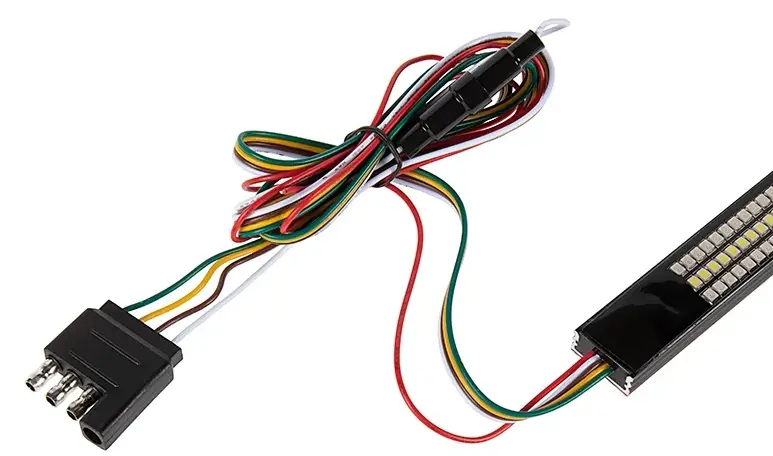

superbright LEDs TGL60S LED Tailgate Light Bar
Important: Read all instructions prior to installation
Safety and Notes
- To reduce risk of electric shock, ensure that battery is disconnected before performing any installation procedures.
- Avoid looking directly into lamp when illuminated.
- Modifications to the light or improper installation—not consistent with guidelines of this document—will void warranty.
- Newer models (such as 2015+ Ford F-150s, 2017+ Ford Super Duty trucks, and 2019+ GM trucks) will require a PWM adapter to function properly. PWM adapter is not included, but can be purchased separately (part number TGL60S-A).
Installation Instructions
- Measure the lip under your vehicle tailgate to ensure there is enough clearance to mount light bar.
- Clean mounting surface with ≥90% isopropyl alcohol prior to installation (not included).
- Apply 3M Adhesion Promoter (not included, 06396 at superbrightleds.com) to surface.
- Mark area with a non-permanent media to create alignment marks.
- Remove adhesive backing film and attach light bar to surface.
- Run power wire with flat 4-pin connector behind your bumper and connect to vehicles flat 4-pin connection. Secure any slack in the wire so it does not hang below bumper.
- Locate power wire for reverse lights on vehicle harness and attach reverse wire from light bar with splice tap (not included, IDC-2218 at superbrightleds.com)
Dimensional Diagram

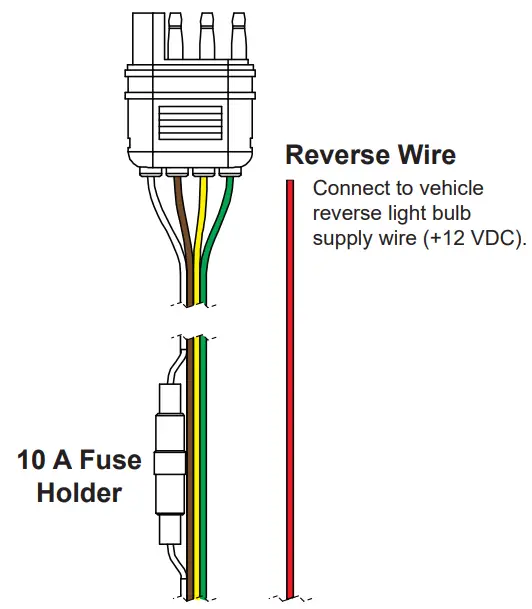

Wiring Diagram
- Rev Date: V1 12/10/2018
- 4400 Earth City Expy, St. Louis, MO 63045
- 866-590-3533
- superbrightleds.com
