JD630ST/DT
GE® 30″ Drop-In Electric Range

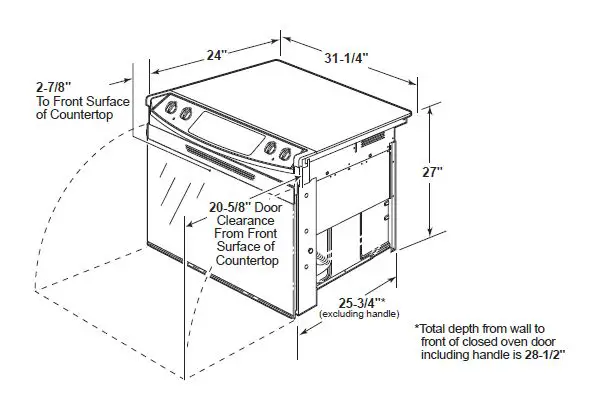

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

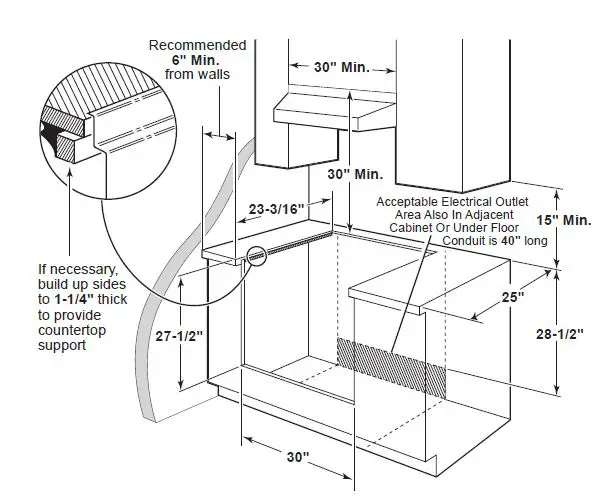

JUNCTION BOX LOCATION: Electric drop-ins are not approved for installation with a plug and receptacle. This range is supplied with a flexible conduit and must be hard wired to a junction box. See shaded area in drawing for location of junction box. Refer to installation instructions for more information.
IMPORTANT: 30″ DROP-IN RANGES ARE DESIGNED TO HANG FROM THE COUNTERTOP. IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION ALTERNATIVES, REFER TO INSTALLATION
INSTRUCTIONS
NOTE: This appliance has been approved for 0″ spacing to adjacent surfaces above the cooktop. However, a 6″ minimum spacing to surfaces less than 15″ above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION
Before installing, consult installation instructions for current dimensional data and additional requirements.
† NOTE: Check local codes for required breaker size.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center®
Service at 800.626.2000.
JD630ST/DT
GE® 30″ Drop-In Electric Range

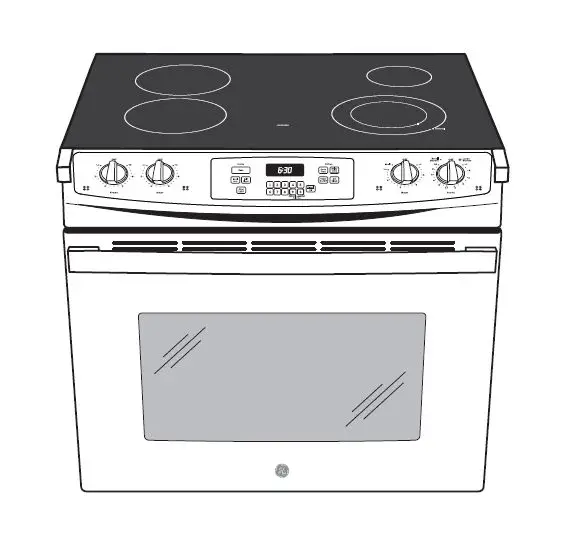

FEATURES AND BENEFITS
6″/9″ Power Boil element – Produces rapid, powerful heat Self-clean oven – Cleans the oven cavity without the need for scrubbing Ceramic glass cooktop – Smooth cooktop easily wipes clean Black gloss oven interior – Enjoy a clean and sleek appearance
- Dual element bake – Upper and lower elements produce even heat and great results
- Electronic oven controls – Electronic touch pads are easy
- to operate
- Sabbath Mode
- Model JD630STSS – Stainless
- Model JD630DTWW – White on white
- Model JD630DTBB – Black on black
