JD630SF
GE Appliances 30″ Drop-In Electric Range

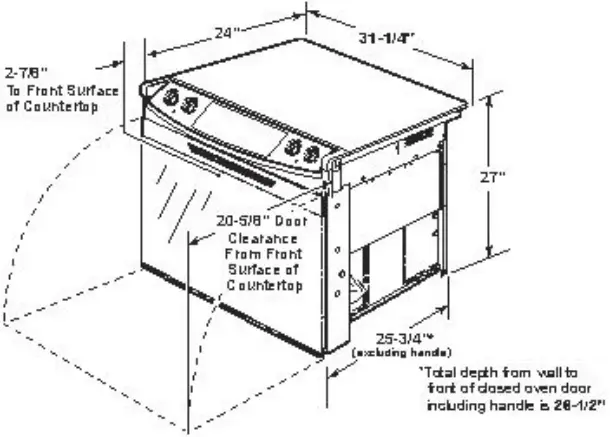

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

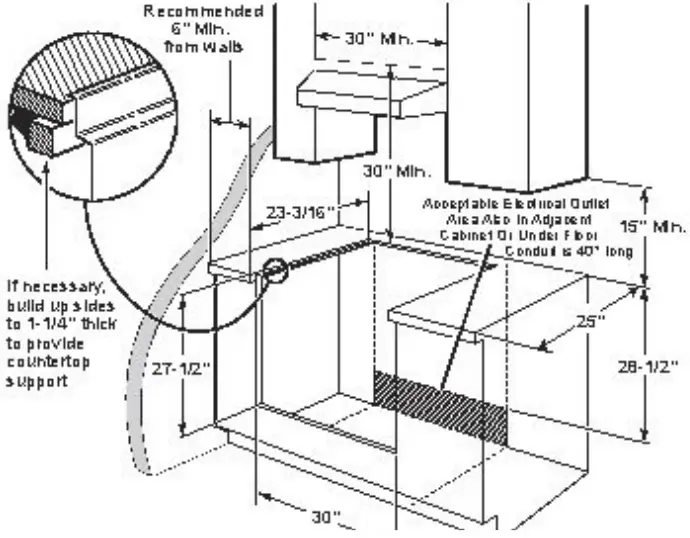

JUNCTION BOX LOCATION: Electric drop-ins are not approved for installation with a plug and receptacle. This range is supplied with a flexible conduit and must be hard wired to a junction box. See shaded area in drawing for location of junction box. Refer to installation instructions for more information.
IMPORTANT: 30″ DROP-IN RANGES ARE DESIGNED TO HANG FROM THE COUNTERTOP. IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION ALTERNATIVES, REFER TO INSTALLATION INSTRUCTIONS.
NOTE: This appliance has been approved for 0″ spacing to adjacent surfaces above the cooktop. However, a 6″ minimum spacing to surfaces less than 15″ above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
OPTIONAL KITS FOR DROP-IN ELECTRIC RANGES: (Available At Additional Cost)

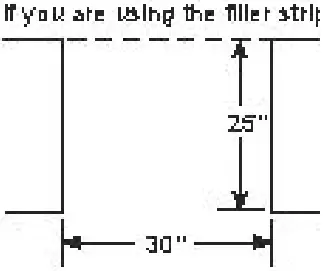

REAR FILLER STRIP:
WB07T10680 – Black Filler Strip Assembly
INSTALLATION INFORMATION: Before installing, consult installation instructions for current dimensional data and additional requirements.
† NOTE: Check local codes for required breaker size.
| KW RATING | |
| 240V | 11.9 |
| 208V | 8.9 |
| BREAKER SIZE | |
| 240V | 40 Amps† |
| 208V | 40 Amps† |
DROP-IN ELECTRIC RANGE

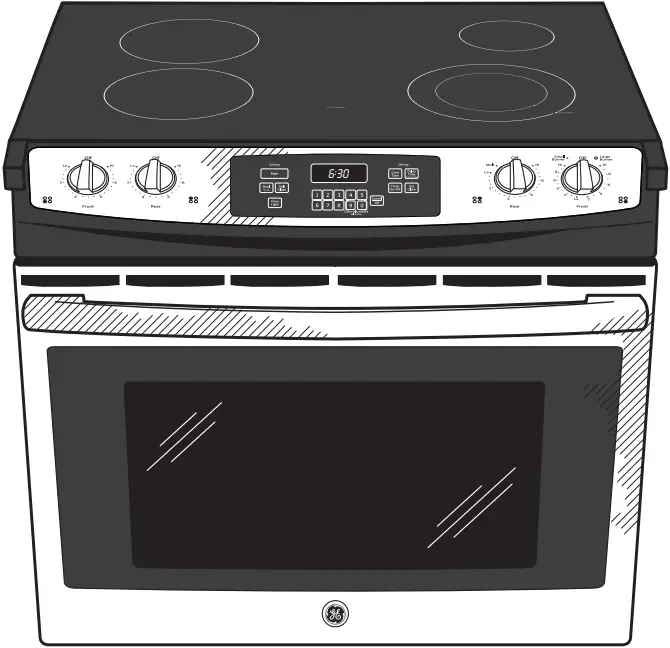

Above illustration intended for dimensional reference only. Refer to photograph for actual product appearance.
Dimension and installation information are shown in inches.
All GE Appliances ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.
Listed by Underwriters Laboratories
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
FEATURES AND BENEFITS
6″/9″ Power Boil element – Produces rapid, powerful heat
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Ceramic glass cooktop – Smooth cooktop easily wipes clean
Black gloss oven interior – Enjoy a clean and sleek appearance
Dual element bake – Upper and lower elements produce even heat and great results
Electronic oven controls – Electronic touch pads are easy to operate
Sabbath Mode
Model JD630SFSS – Stainless steel
Specification Revised 1/22
