GE Appliances JB645DK Series 30 Inch Freestanding Electric Range

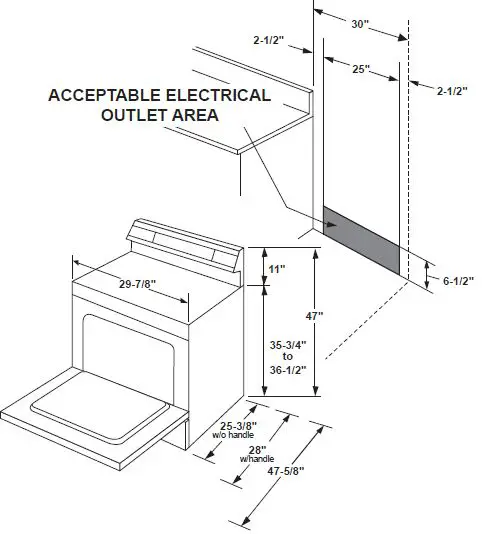

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS:
Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.
NOTE:
This appliance has been approved for 0″ spacing to adjacent surfaces above the cooktop. However, a 6” minimum spacing to surfaces less than 15″ above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION:
Before installing, consult installation instructions for current dimensional data and additional requirements.
| KW RATING | |
| 240V | 12.1 |
| 208V | 9.1 |
| BREAKER SIZE | |
| 240V | 40 Amps† |
| 208V | 40 Amps† |
NOTE: Check local codes for required breaker size.
FEATURES AND BENEFITS
- Two 9″/6″ Power Boil elements – Two powerful elements boil water 25% faster than standard GE elements and adjust to fit cookware
- Self-clean oven – Cleans the oven cavity without the need for scrubbing
- Dual-element Bake – Upper and lower elements produce even heat and great results
- Ceramic glass cooktop – Smooth cooktop easily wipes clean
- Removable full-width storage drawer – Store cookware or kitchen accessories 5.3 cu. ft. oven capacity – Enough room to cook an entire meal at once Sabbath Mode
- Model JB645DKBB – Black on black
- Model JB645DKWW – White on white
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
