IN8080
ULTI Bars – X2

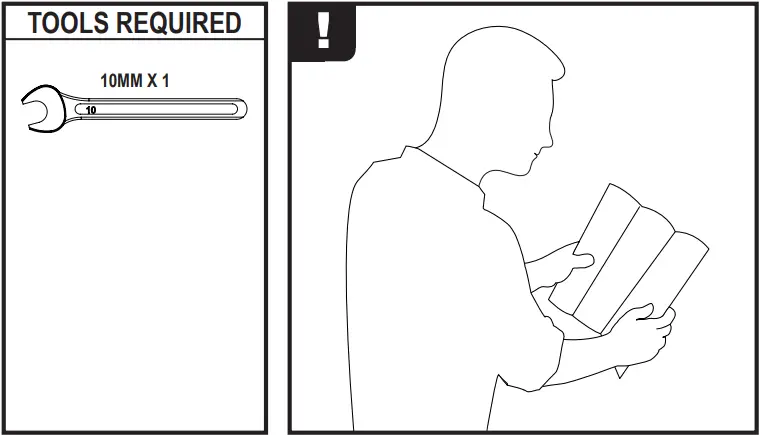

Fitting Instructions – Read instructions carefully before fitting and follow them for correct use
VG211-2 Nissan Primastar x2 ULTI Van Roof Bars

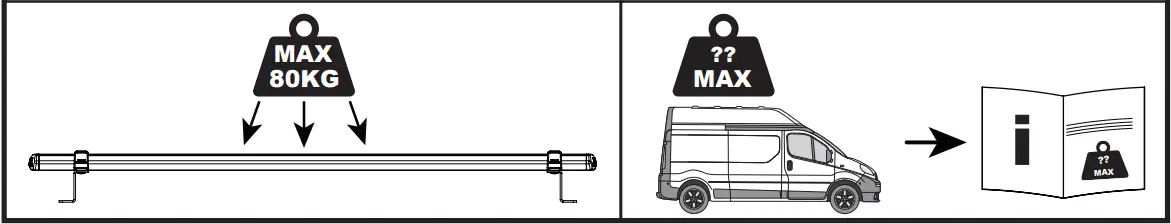

Tested to 80kg per bar. The maximum load is in accordance with the vehicle manufacturer’s load-bearing capacity (refer to the vehicle handbook). Do not exceed this limit.

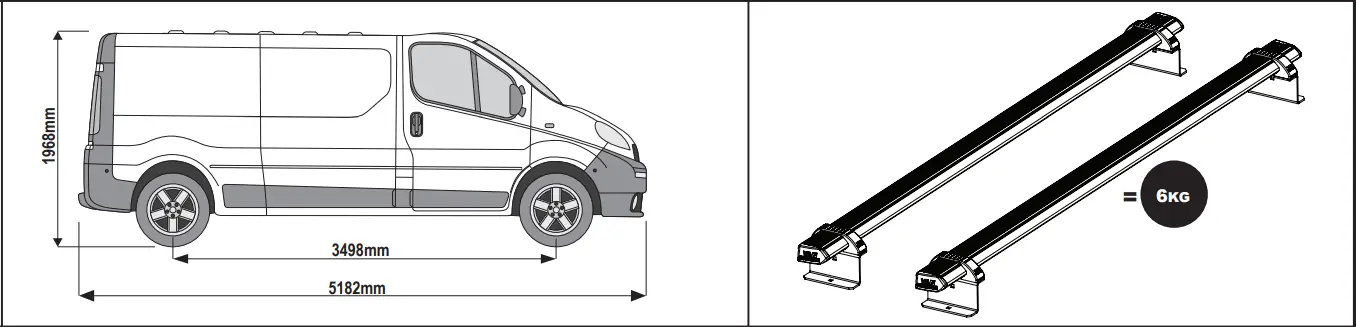

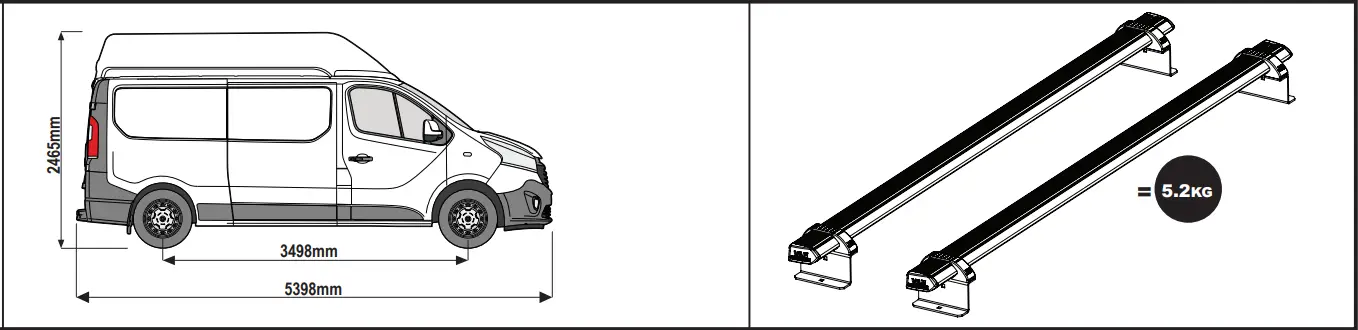

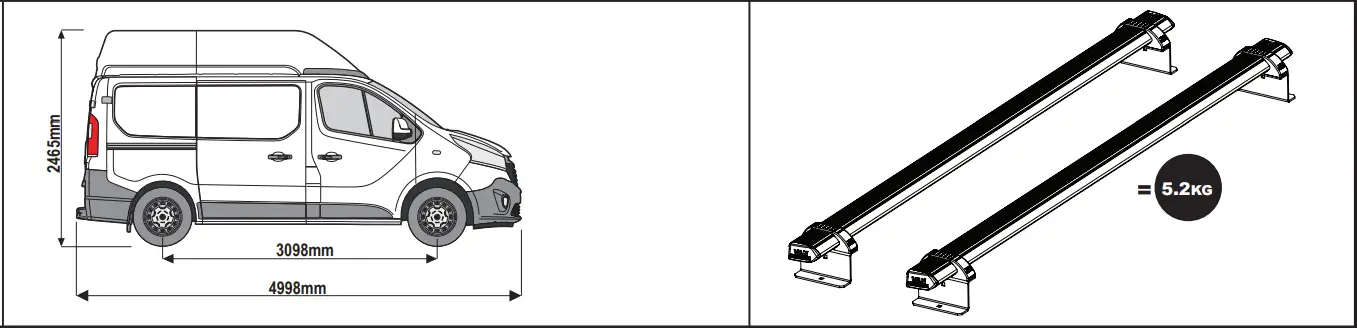

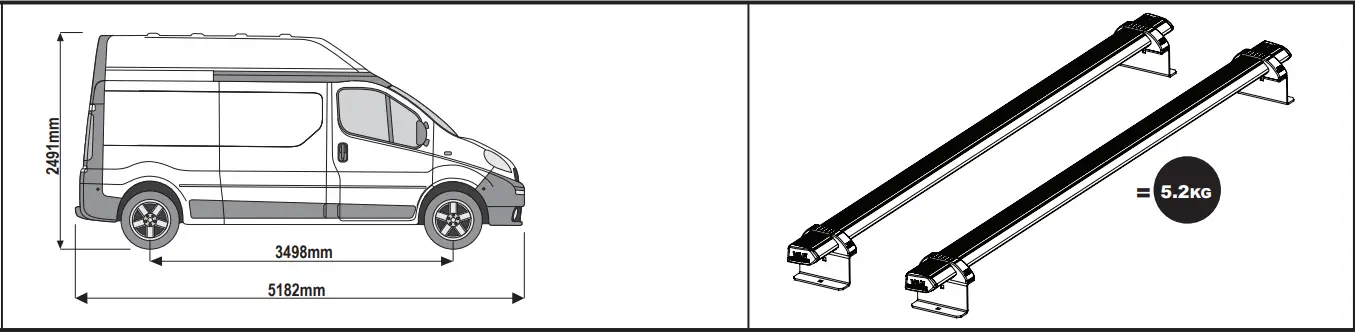

THIS PRODUCT SUITS THE FOLLOWING VEHICLE
VG211-2
Vehicle:
Vauxhall Vivaro: 2001 – 2014
Renault Trafic: 2001 – 2014
Nissan Primastar: 2001 – 2014
Wheel Base: SWB (L1)
Roof Height: High (H2)
Rear Doors: Twin

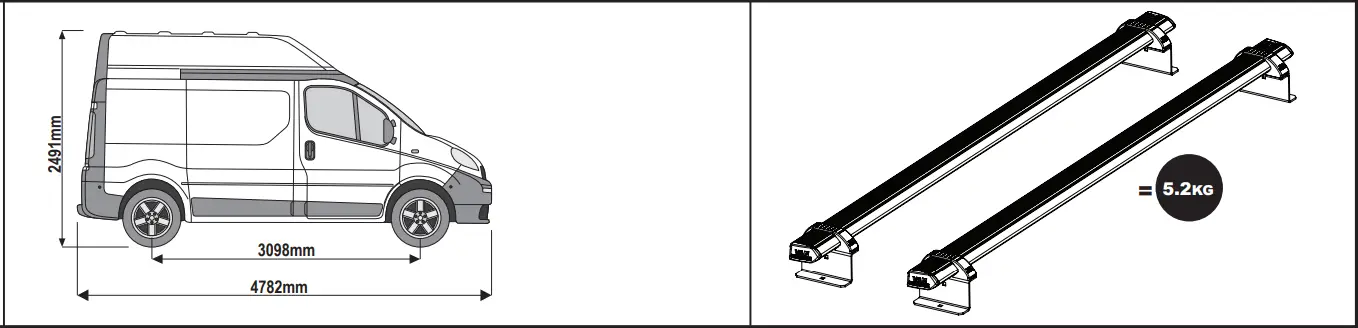

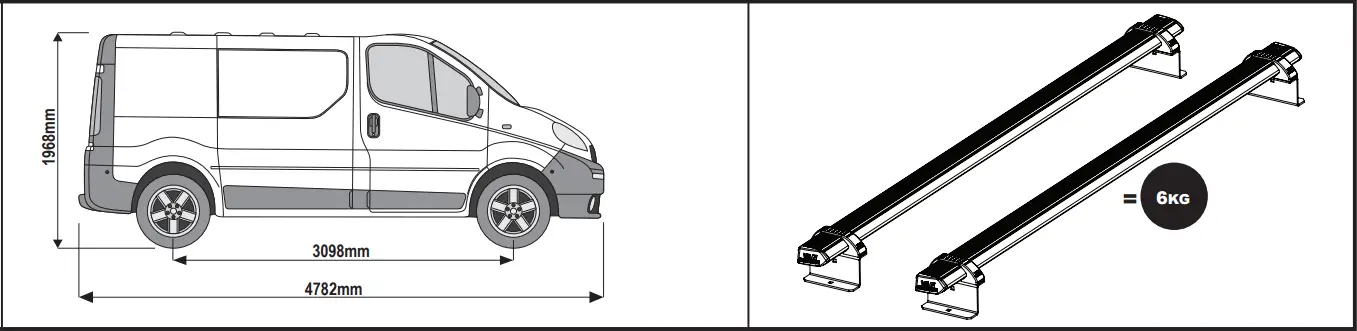

VG255-2
Vehicle:
Vauxhall Vivaro: 2001 – 2014
Renault Trafic: 2001 – 2014
Nissan Primastar: 2001 – 2014
Wheel Base: SWB (L1)
Roof Height: Low (H1)
Rear Doors: Twin / Tailgate

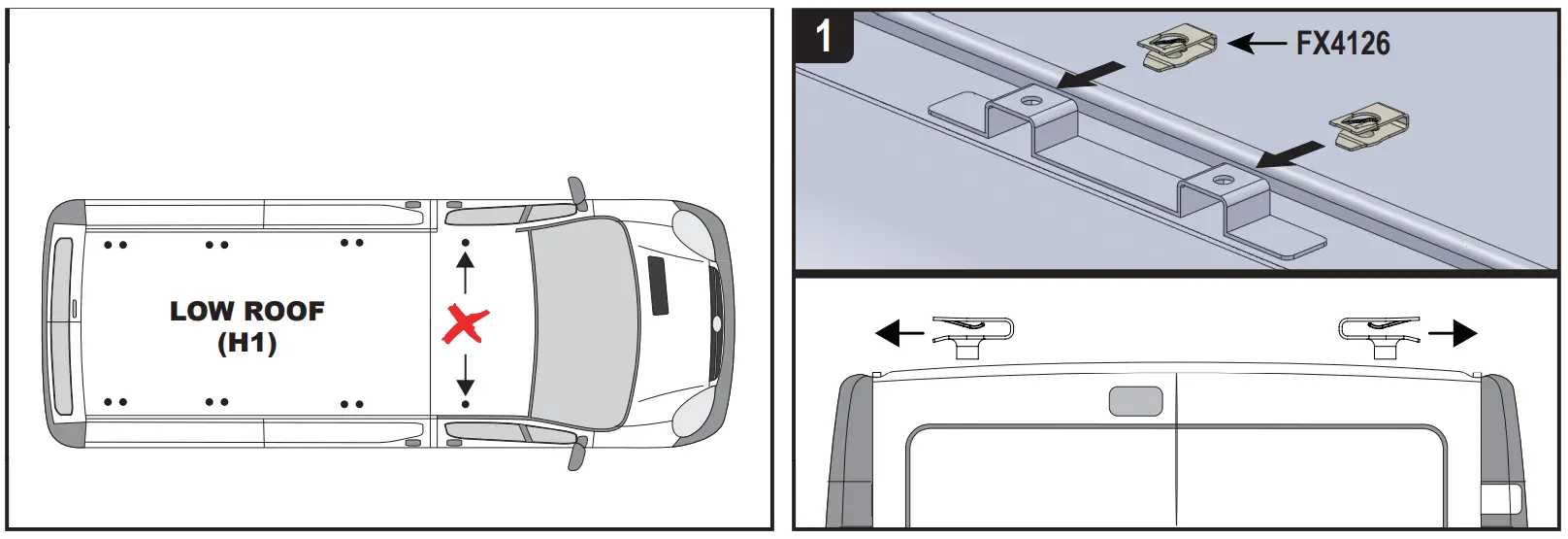

? Please note that the front fixing point is not used when fitting this product to a low roof (H1) model. If fitting this product to a high roof (H2) model any fixing point can be used.
- Regularly inspect all fixings and parts. Any damaged or worn parts should be immediately removed from the vehicle and replaced.
- Take care when loading and unloading goods onto and off the roof of the vehicle.
- Van Guard Accessories LTD and/ or its distributors do not accept liability for:
– Any products that have been fitted incorrectly.
– Any products which have been fitted to the incorrect vehicle.
– Any products that have been modified in any way or are being used for any purpose that they are unintended for. - It is important that the end user receives this document and that instructions are retained for future use.
This FITTING INSTRUCTION is the property of VANGUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied or communicated in any way to third parties without written permission from VANGUARD ACCESSORIES LTD.
IN8080_G (CN:00114)
Van Guard Accessories Ltd
Fair Oak Close, Exeter Airport Business Park,
Exeter, Devon, EX5 2UL
www.van-guard.co.uk
