Studio Maisonnette Cloud Wall Shelf

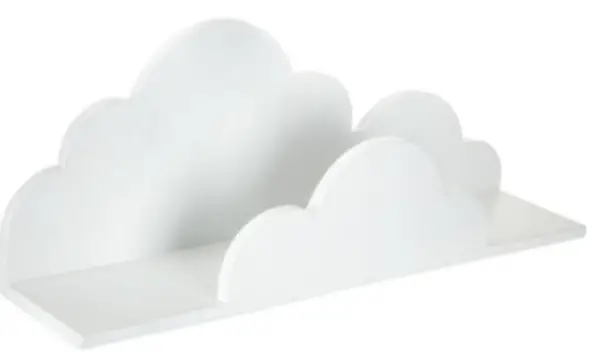

Studio-Maisonnette-Cloud-Wall-Shelf-product

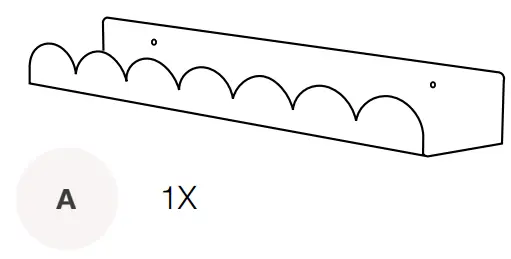

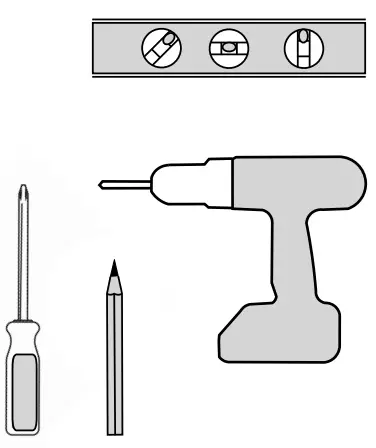

Cloud wall shelfStudio-Maisonnette-Cloud-Wall-Shelf-fig 1Studio-Maisonnette-Cloud-Wall-Shelf-fig 2

StepsStudio-Maisonnette-Cloud-Wall-Shelf-fig 3

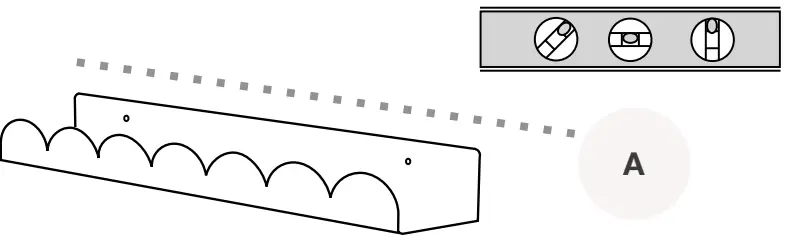

Level the shelf.Studio-Maisonnette-Cloud-Wall-Shelf-fig 4

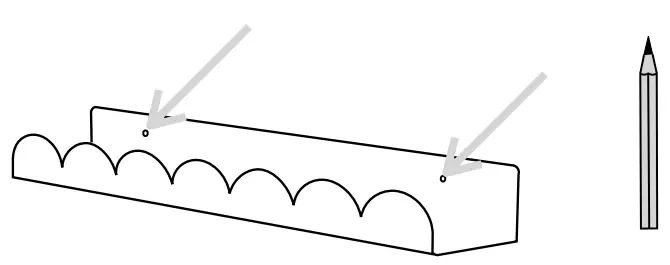

Mark the holes (2) with a pencil.Studio-Maisonnette-Cloud-Wall-Shelf-fig 5

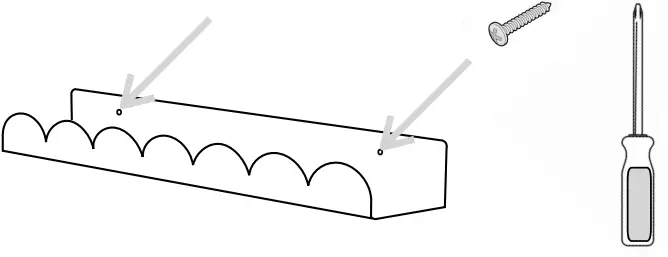

Use 25 lb rated wall anchors adapted to your wall and install them according to the manufacturer’s instructions. Use #8 pan screws.Studio-Maisonnette-Cloud-Wall-Shelf-fig 6

Install the screws.
NOTE: Maximum load on the shelf 11 lb (5kg).
