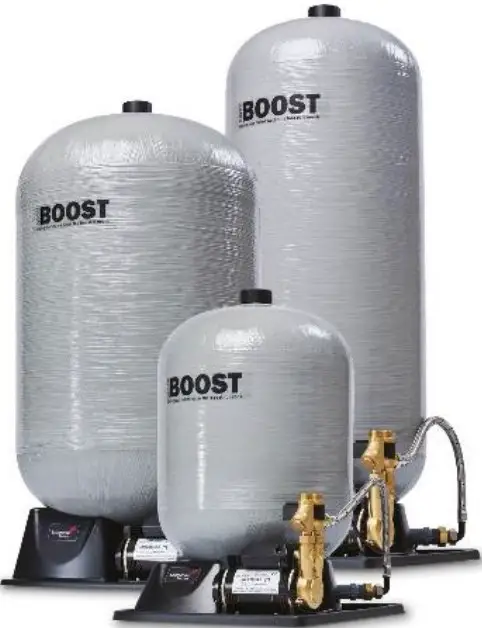

Salamander Pumps ACC-120-TNK AccuBoost Unpumped Accumulator Set Instructions
Overview
Accumulator designed for mains cold water
- Lightweight, composite material
- Supplied as one unit
- Link multiple tanks for extra capacity
- One person lift ACC-060 & ACC-120
- 3 Year warranty
- Pre-charge pressure to be 1.5bar lower than mains standing pressure
- ‘Water-on-bag’ design vessel
- Ideal for combination boilers and unvented systems

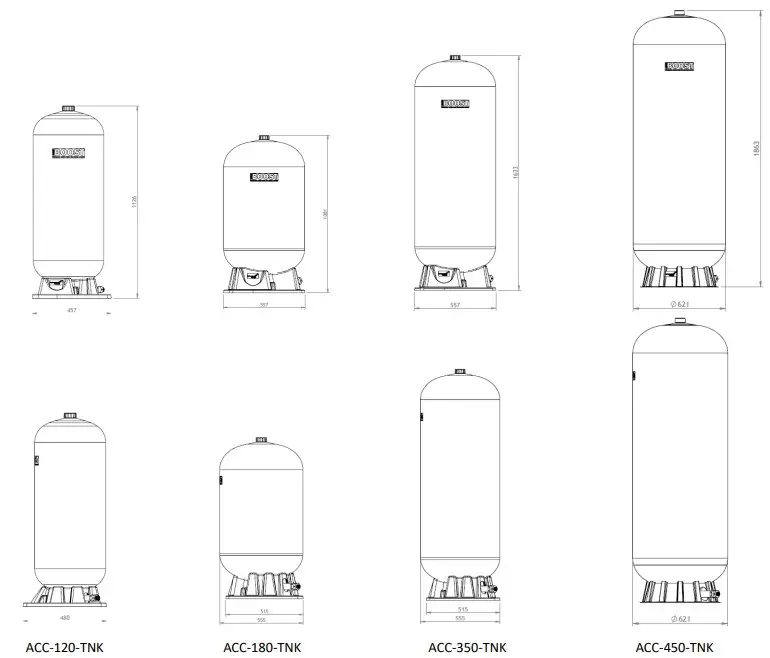

Dimensions
Technical Specification
| AccuBoost (Un-Pumped) Model | ACC-120-TNK | ACC-180-TNK | ACC-300-TNK | ACC-450-TNK | |
| Guarantee | 3 Years | ||||
| Specification | Maximum Operating Pressure | 8.6 Bar | |||
| Operating Temperature Range | 4oc to 49oc | ||||
| Vessel Size (Litres) | 112 | 178 | 301 | 453 | |
| Maximum Water Vessel Water Storage Capacity | 56 | 89 | 150.5 | 226.5 | |
| Vessel Pre-Charge Pressure | 1.5 Bar below mains standing pressure | ||||
| Dimensions | Height (mm) | 1126 | 1081 | 1633 | 1863 |
| Width (mm) | 457 | 557 | 557 | 621 | |
| Depth (mm) | 480 | 555 | 555 | 621 | |
| Weights | Empty Weight (kg) | 12.8 | 20.3 | 35.5 | 47 |
| Filled Weight (kg) | 68.8 | 109.3 | 186 | 273.5 | |
| Maximum Weight (kg) | 124.8 | 198.3 | 336.5 | 500 | |
| Pump | n/a | n/a | |||
| Motor | n/a | n/a | |||
| Electrical | n/a | n/a | |||
| Connections | Threaded | ¾” male BSP | |||
| Performance | Maximum Flow Rate – not including mains flow | 4 l/min | 6 l/min | 18 l/min | 24 l/min |
| Flow rates from an unpumped accumulator are difficult to state given they are system dependant – For the purpose of the above table, there is an assumption that the natural mains water flow rate is l/min, standing pressure of 3.0Bar and a vessel pre-charge of 1.5Bar | |||||
