021132 1200W 45L Dust Collector

Important
Read the user instructions carefully before use. Save them for future reference. (Translation of the original in structions)
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com

SAFETY INSTRUCTIONS

Follow these instructions to minimize the risk of fire, electric shock and personal injury.

Operators must be well instructed in the use of these machines.
This machine is not suitable for collecting up toxic dust.
This machine is only intended for collecting up dry sawdust.
This machine is only intended to be used and stored indoors.
Extension cords must have a minimum wire cross-sectional area of 1.0 square millimeters.
It is recommended to use a 16 fuse for this product.
The connection and repair of electrical equipment must only be carried out by an electrician.

SYMBOLS

	Read the instructions.
	This product has a safety class II rating. This means it is fitted with extra or double insulation.
	Wear ear protection.
	Wear a dust filter mask.
	For indoor use only.
	Approved in accordance with the relevant directives.
	Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

Rated voltage	230 V- 50 Hz
Output	1200W
Airflow	130 m²/h
Volume	45l
Hose length	2 m
Sound pressure level, LpA	84.2 dB(A), K = 2 dB
Sound power level, LwA	979 dB(A), K = 2 dB
Vibration level	1.46 m/s², K = 1.5 m/s²
Size	H63.5Φ 39 cm

Always wear ear protection!
The declared values for vibration and noise, which have been measured according to a standardized test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.
The measurement values have been determined in accordance with EN 60335-2-69 2012.

DESCRIPTION

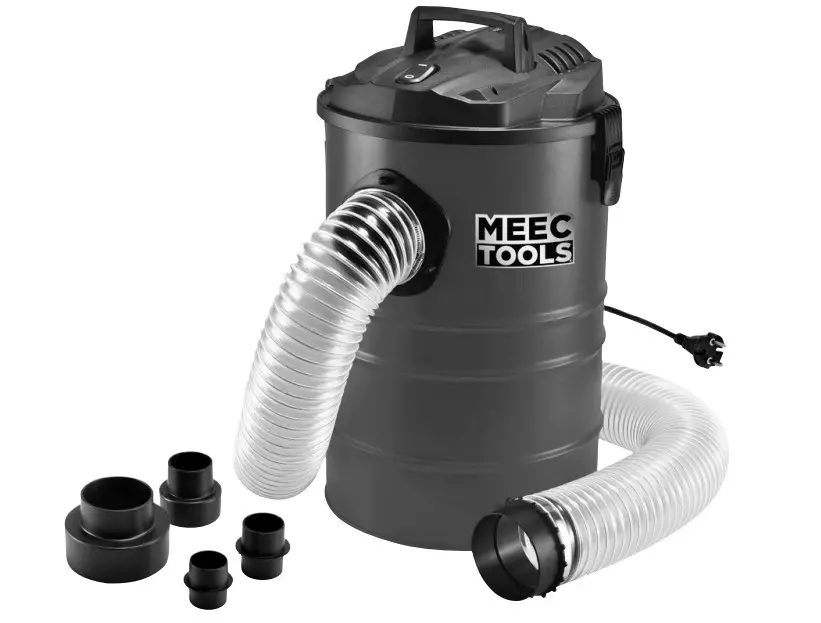

Dust extractor for extraction of dust and chips, with a handle on top and compatible with most workshop machines. Hose, adapter set (to connect to different machines), paper bag and washable HEPA filter included.

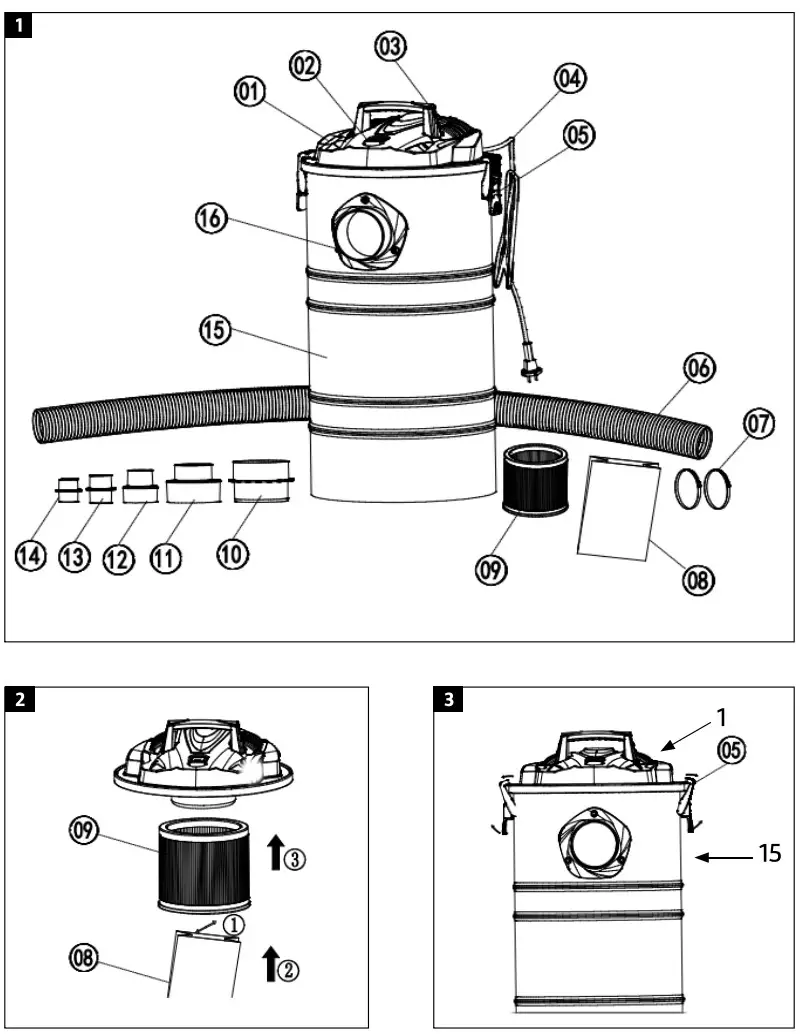

1. Motor unit
2. Power switch
3. Handle
4. Power cord
5. Lock hook
6. Suction hose

7 Hose clip
8. Filter bag
9. Filter cartridge
10. Hose connection g 100 mm
11-14. Adapters
15. Container
16. Intake connection

FIG. 1

ASSEMBLY

WARNING!
Do not start the product until it is fully assembled.
Do not allow children to play with the product or the packaging material — risk of suffocation!

Put the filter cartridge (9) in the filter bag (8)
Put the filter cartridge with the filter bag in place on the motor unit.
Press in the extruding parts in the filter cartridge (8) FICi. 2
Put the motor unit (7) on the container (15)
Lock in place with the lock hooks (5) FICi. 3

FIT THE SUCTION HOSE

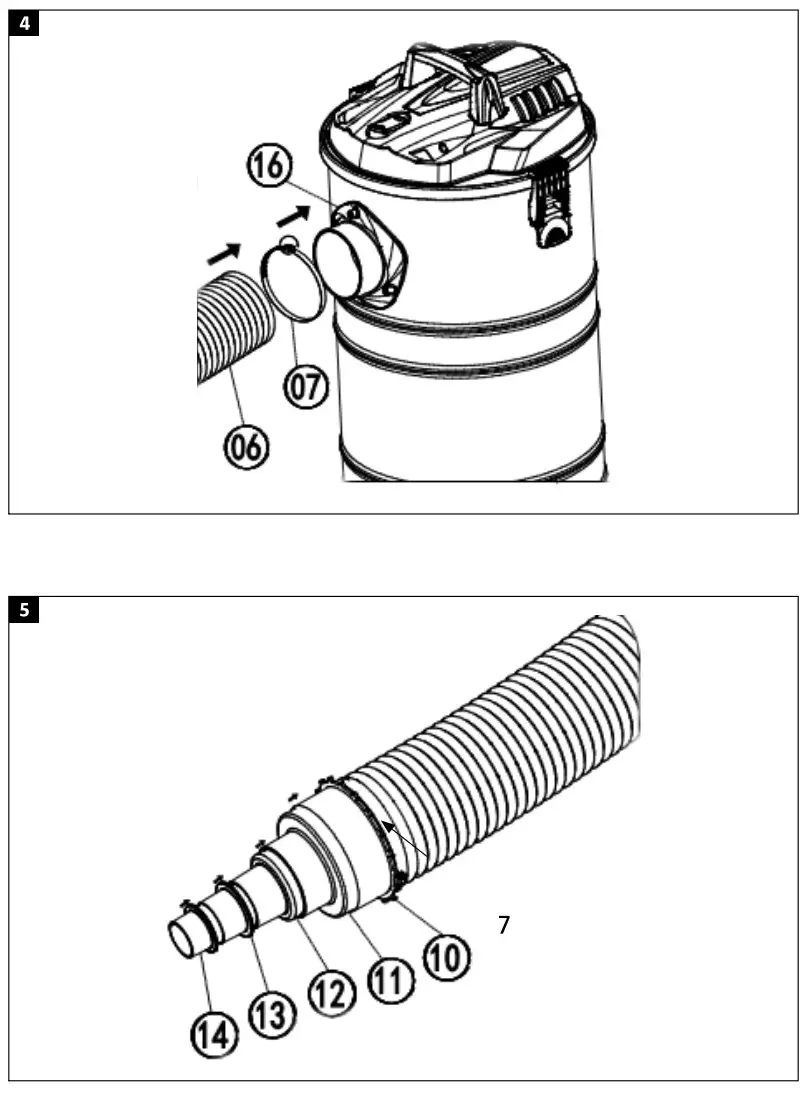

Connect the suction hose (6) with a hose clip (7) to the intake (16) on the container. FIG. 4
Fasten the hose coupling on the other end of the hose with a hose clip (7), hose connection (70) and adapter if necessary (11-14). FIG. 5

USE

STARTING/STOPPING

To start the product put the power switch (2) in position I.
Put the power switch (2) in position Oto switch off the product.

MAINTENANCE

CLEANING
IMPORTANT:
Pull out the plug before cleaning.

Clean the product after use and check the filter for damage.
Wipe any dust off the product with a cloth.
Clean the product with a cloth moistened with water and a mild detergent. Do not use strong detergents or solvent, they can damage the plastic parts. Make sure that no water gets into the product.

STORAGE

Store the product and all accessories in a clean, dry and frost-free place, protected from direct sunlight and out of the reach of children. The best storage temperature is 5 to 30°C.
Store the product if possible in the original pack.
Cover the product to protect it from dust and dirt.
