ME-CR2 Air Duster Vacuum Cleaner
User Manual
ME-CR2 Air Duster Vacuum Cleaner
Please read this user manual carefully before using,and put it on a safe place for future reference.

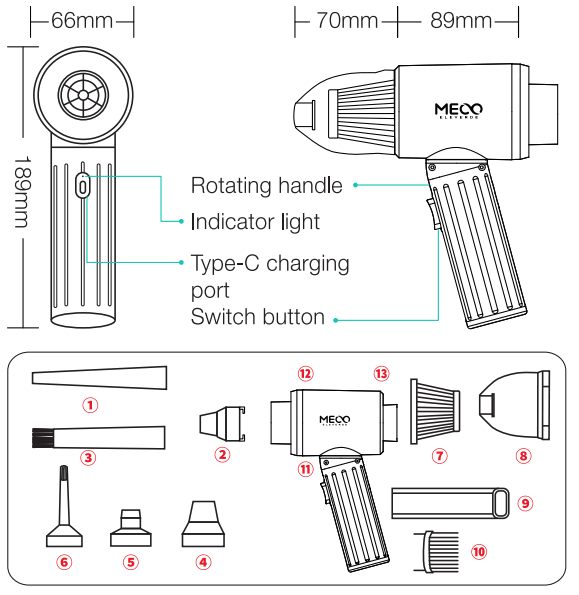

Schematic
| Blow nozzle | Vacuum cup |
| Connection component | Vacuum nozzle |
| Brush blow nozzle | Brush vacuum nozzle |
| Air bed blow nozzle | Rotatable handle |
| Air bed exhaust nozzle | Air duster head |
| Swimming ring blow nozzle | Vacuum cleaner head |
| Washable filter |
Parameters
| Input | 5V  3A 9V 1.65A |
| Maximum Power | 90W |
| Wind Pressure | 1.6PSI |
| Wind Speed | 25m/s |
| Vacuum Degree | 1st Gear:8Kpa 2nd Gear:l0Kpa 3rd Gear:l2Kpa |
| Lithium Battery Capacity | 7500mAh(2500mAh*3PCS) |
| Motor Speed | 1st gear:50,000RPM 2nd gear:70,000RPM 3rd gear:90,000RPM |
| Working Time | 1st gear:30mins 2nd gear:20mins 3rd gear:l5mins |
| Charging Time | 2.5 hours |
Package contents
| Accessories | Quantity |
| Air duster & vacuum cleaner | 1 |
| Type C charging cable | 1 |
| User manual | 1 |
| Blow nozzle | 1 |
| Connection component | 1 |
| Brush blow nozzle | 1 |
| Vacuum nozzle | 1 |
| Brush vacuum nozzle | 1 |
| Air bed blow nozzle | 1 |
| Air bed exhaust nozzle | 1 |
| Swimming ring blow nozzle | 1 |
| Washable filter | 1 |
| Vacuum cup | 1 |
| Flannel bag | 1 |
LED Iight instruction and opertion
First, please take the air duster out of the box. Then, please use up the battery for the first time. Finally, please charge it separately to ensure the battery life.
Switch
Press and hold for 1 second to turn it on or off. Tap the button to switch the gear wind speeds.
Red light
0.3s flashing, means low power. If the light isn’t flashing, it means charging. If the red light tums to green light, it means the battery charged.
Green light
0.3s flashing, means the 3rd gear wind speed. 0.7s flashing, means the 2nd gear wind speed.
1.5s flashing, means the 1st gear wind speed. If the light is on, it means the battery is full. The machine doesn’t work during charging.

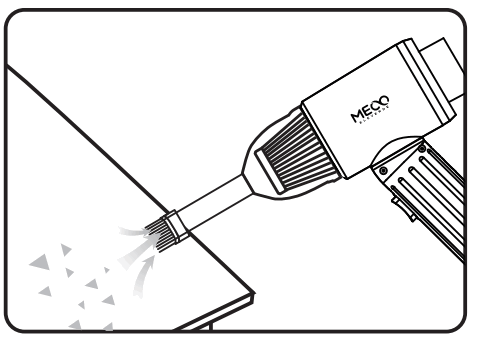

How to use vacuum cleaner

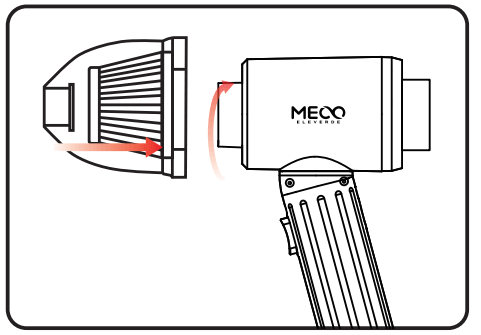

- Install the filter into the duster suction cup.
- Fasten.the vacuum cover and rotate clockwise unit it clicks into place.

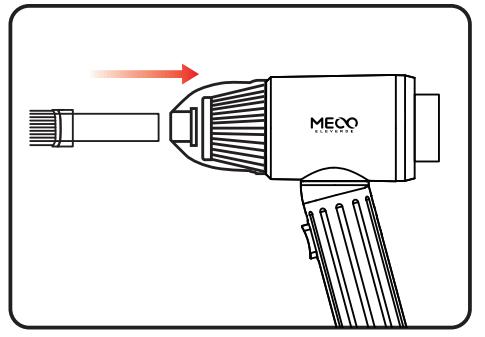

- Attach the vacuum nozzle into vacuum cover.
- Press the swtich to start vacuuming.

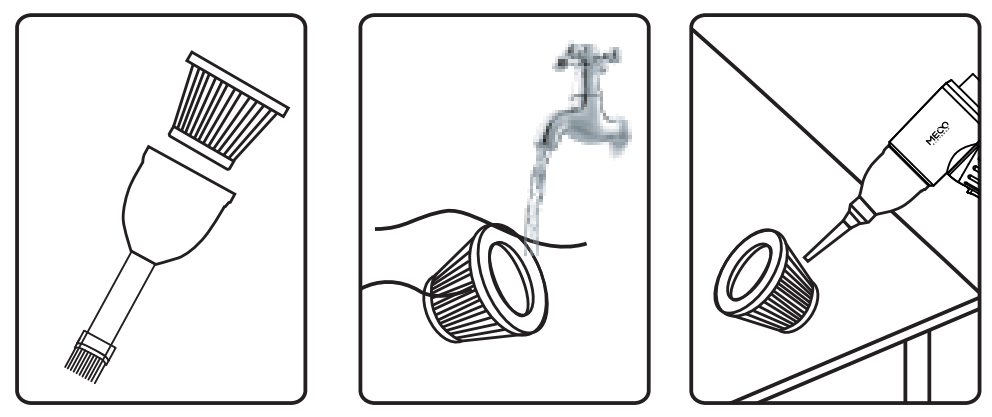

Clean the filter
 | ||
| 1. Take the filter out of the vacuum cup. | 2. Clean the filter by water. | 3. Dry the filter by air duster. |
How to use air duster

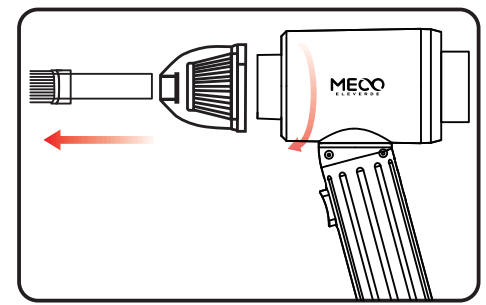

- Rotate and remove vacuum cup.

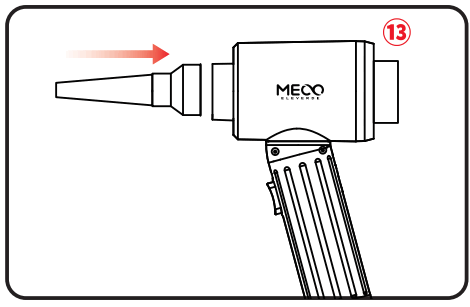

- Install the blow nozzle on the head of air duster.

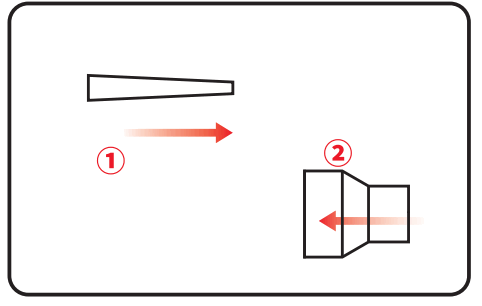

- Put the blow nozzle on the connection component.

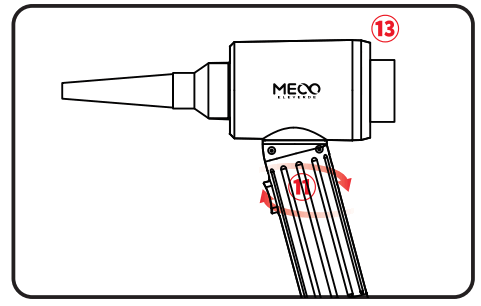

- Rotate 180 degrees clockwise to switch to the dust blowing.

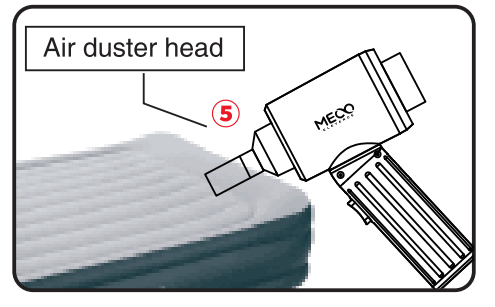

The inflatable part is equipped with an inflator nozzle, which can inflate the air bed.

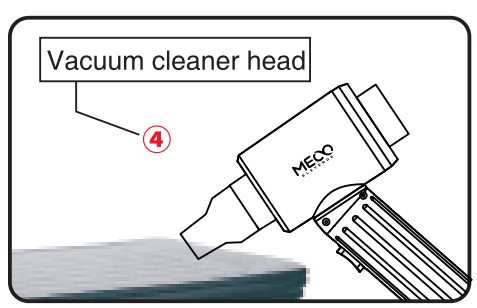

The vacuum cleaner head is installed on the suction end to vacuum the air bed.

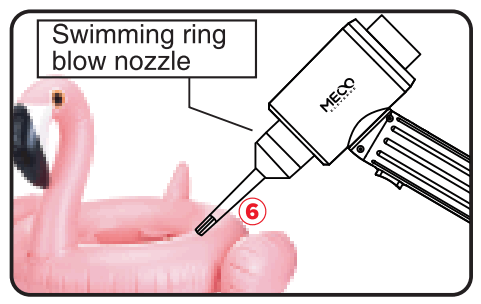

The inflatable part is equipped with and inflatable nozzle, which can inflate the swimming ring & yoga ball.

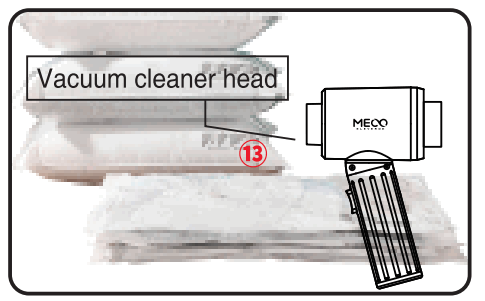

The vacuuming part can vacuum the vacuum bag.
Warranty policy
In order to provide better service & shopping experience for you. Please purchase the goods through legal channels. We will provide 12-month warranty. The warranty don’t include man-made damage,disassemble burning,water ingress, breakage etc.
