RealScan-D
Portable Dual Finger Live Scanner

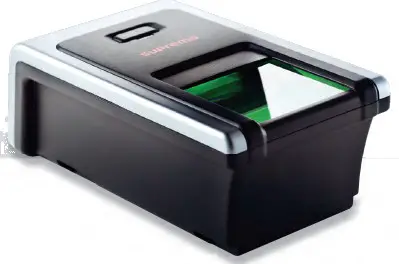

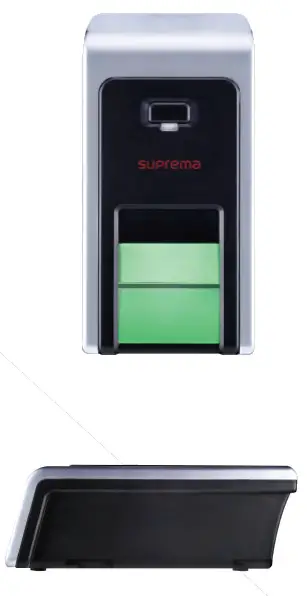

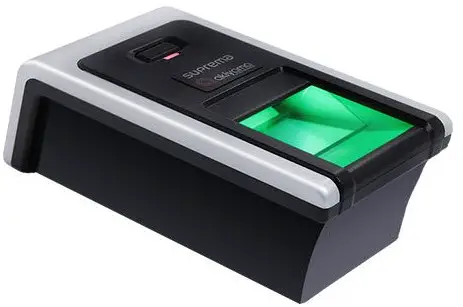

RealScan-D Portable Dual Finger Live Scanner
RealScan-D is a portable dual fingerprint live scanner blending superb optical technology with loads of latest features. With its sleek and ergonomic design, RealScan-D offers maximum performance under harsh environments and guarantees precise image
capturing for wet and dry fingers.
RealScan-D
Portable Dual Finger Live Scanner
Applications
- Criminal identification
- Civil identification
- Airport and border check
- Employee background check
- National ID cards
- e-Passport and Visa
Hardware Features
- Extra-wide active image area(�.�” x �.�”) for easy capture of two fingerprints
- Strong performance for wet fingers by advanced optical technology
- FBI certification for civil ID and AFIS application
- FIPS ��� certification
- High quality image capturing for wet and dry fingers
- Built-in buttons for on-device operation
- USB �.� interface for data transfer and power supply
- Easy-to-mount footprint design for desks and kiosks
- No external moving parts
Specifications
| Fingerprint Types | Single rolls / Single flats / Dual finger flats |
| Resolution | 500 dpi, 256 gray |
| Platen Size (W x L) | 1.9″ x 1.9″ (48 x 48 mm) |
| Image Size (W x L) | 1.8″ x 1.8″ (46 x 46 mm) |
| Image Quality Standards | FBI IAFIS Appendix F spec. |
| Ingress Protection | Splash Proof |
| Mean Time Between Failure (MBTF) | 25,000 hours |
| Time of Image capture of fingerprint at 500 ppi | 2 seconds |
| Operating Temperature | -10°C – 50°C |
| Operating Humidity | From 10 to 90%, non-condensing |
| Dimension (W x L x H) | 3.1″ x 6.7″ x 2.5″ (84 x 171 x 63 mm) |
| Weight | 0.54 kg (1.19Ibs) |
| Interface | USB 2.0 (data 84 power) |
| Operating Systems | Windows XP, Vista, 7, 8, 8.1, 10 32/64bit Ubuntu, Debian, Fedora, Cent OS 32/64bit Android 5.0 and above |
| Certificate | CE, FCC, KC, UL, WHQL |
FCC Compliance Statement(Part 15.19 (3))
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Interference Statement(Part 15.105) Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Suprema ID Inc. #305-308, 3F, Building A, Tera Tower 2, 201 Songpa-daero, Songpa-gu, Seoul, Republic of Korea
T +82 31 710 5629
E [email protected]
www.suprema-id.com
02020 Suprema ID Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema ID Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies. Product appearance, build status and/or specifications are subject to change without notice. [SUPPEMAID-DHL-PSD-EN-PEV071
