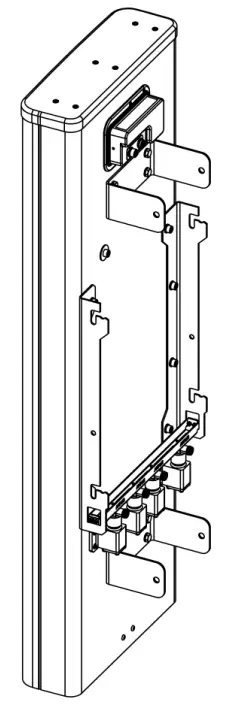

CCI CV-01 Remote Radio Interconnect
DISCLAIMER:
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this document. Antenna systems should be inspected once a year by qualified personnel to verify proper installation, maintenance, and condition of equipment. Communication Components Antennas Inc. disclaims any liability or responsibility for the results of improper or unsafe installation.

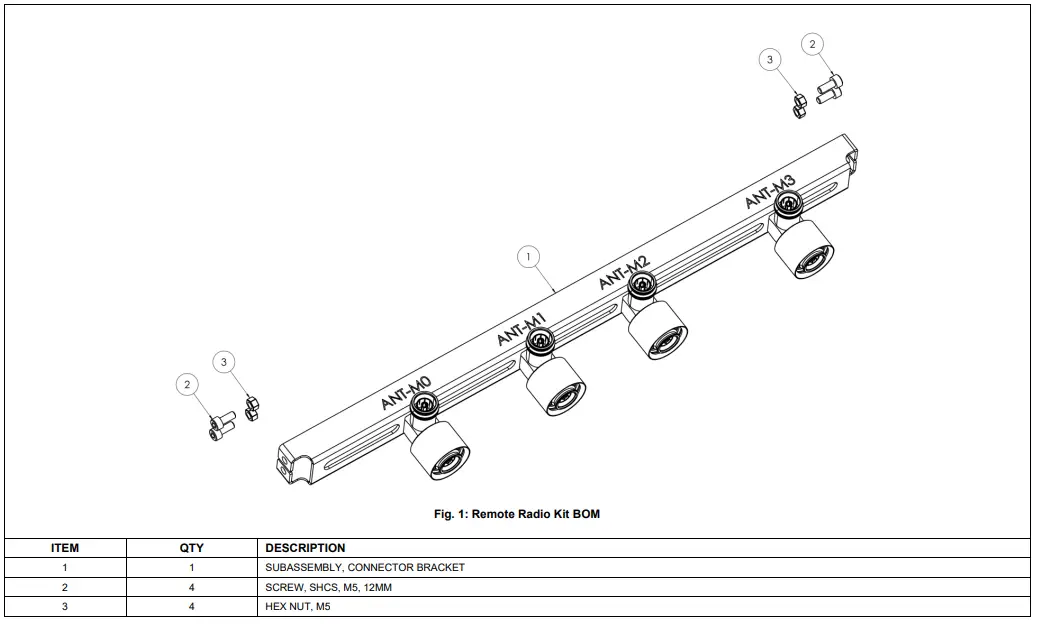

Remote Radio Kit BOM
Installation
| Step | Task |

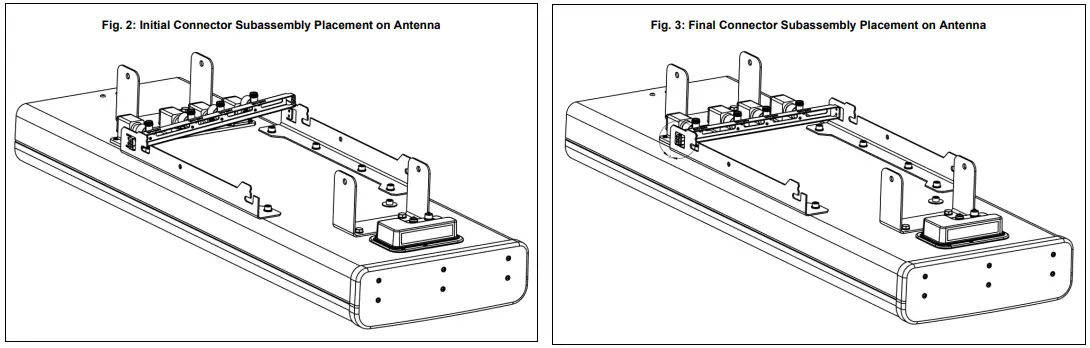

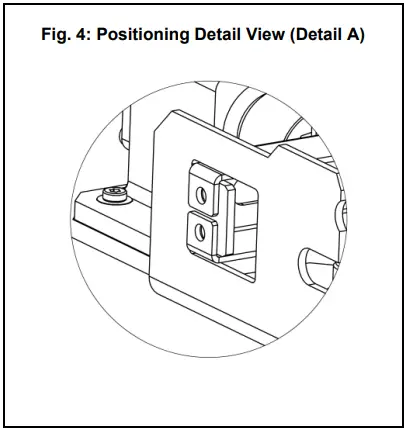

| 1 | Tilt connector subassembly (Item 1) to engage 1 side, seen in Figure 2. Shift connector bracket towards the engaged side. Remove tilt by making connector subassembly parallel to antenna. Shift bracket back to center, in between side rails. All 4 tabs of the connector subassembly should now be able to slide outside of the tabs on the rails seen in figure 4. Press bracket towards connector housing which is seen in Figure 3. |
| Step | Task |

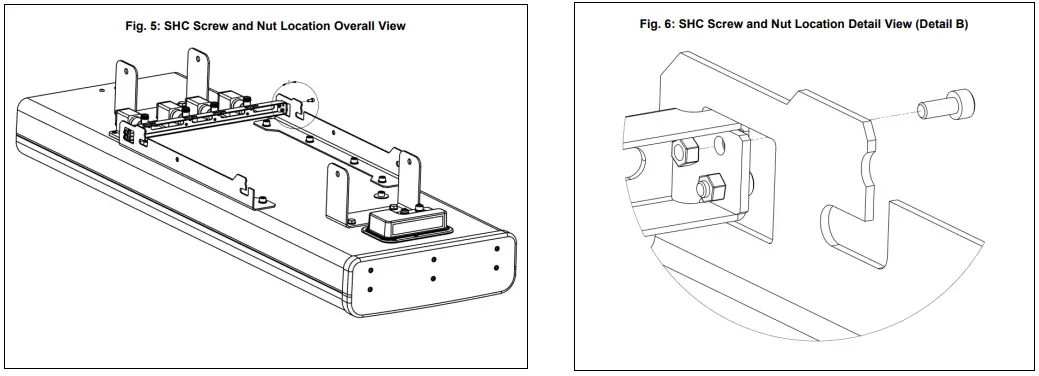

| 2 | While pressing on the bracket engage all 4 SHC screws (Item 2) when the bracket holes line up. Add hex nut (Item 3) on opposite side and torque to 5.0 ± 0.5 N·m (44.5 ± 4.5 in-lbs) seen in Figure 5 & Figure 6. |
| Step | Task |

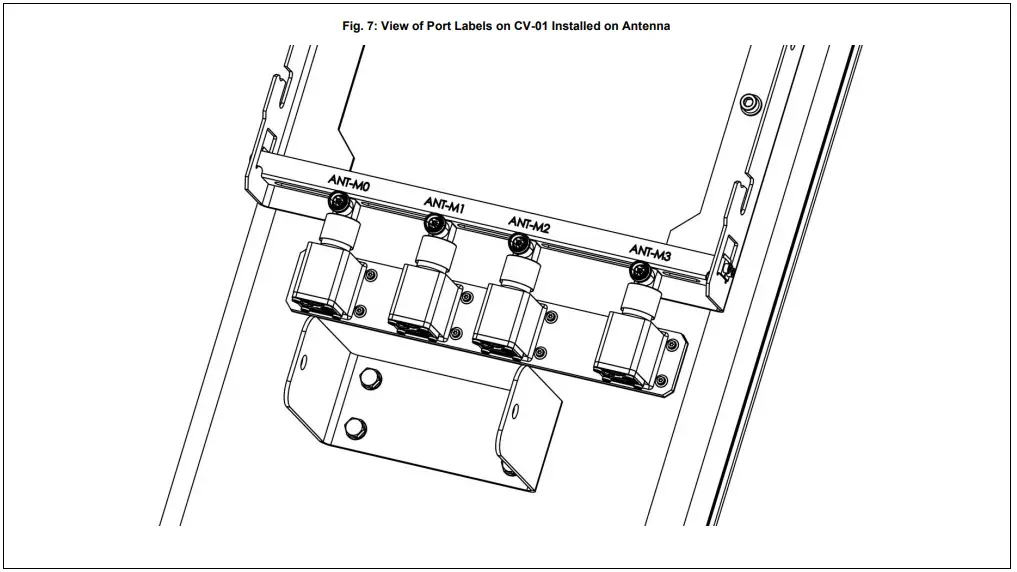

| 3 | See Fig. 7 for a view of the port labels on CV-01 installed on the antenna. |
| Note | To remove the CV-01, the process is the reverse of the installation steps. |
