Assembly Instructions
Item Number: 66095
Product Name: 34 Inch Metal Firepit W/ Ring/Screen/Poker
WARNINGS:
- This fire bowl is intended for outdoor use only. Do not use wooden decks.
- This fire bowl is intended to burn wood logs only. Do not burn coal, leaves, or other combustible materials in the fire bowl.
- Not for use by children. Keep children and pets away from the fire bowl.
- The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
- Never leave the burning fire bowl unattended, and always extinguish the fire completely before leaving the fire bowl.
- Do not use near flammable or combustible objects or materials.
- When the fire bowl is in use, the handle on the mesh screen can reach extreme temperatures that can cause serious injury to an unprotected hand. Use a poker or an appropriate heat-resistant glove or pad when handling.
- Check local fire regulations and municipal by-laws for safe use.

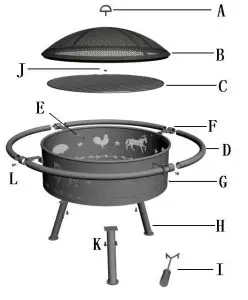

FIREPIT PARTS LIST
| No. | PARTS | Qty |
| A | Lift handle | 1 |
| B | Screen | 1 |
| C | Cooking grill | 1 |
| D | Decorative ring | 4 |
| E | Grill support | 4 |
| F | Ring connector | 4 |
| G | Fire bowl | 1 |
| H | Leg | 3 |
| I | Poker | 1 |
HARDWARE LIST
| No. | Hardware | Qty |
| J | M6 Nut | 9 |
| K | M6*10 bolt | 6 |
| L | M6*14 bolt | 4 |
| M | M6*18 bolt | 4 |
Step By Step Assembly Instructions:
Step 1: Choose a level location for assembly. Remove all parts from the packaging check the parts list for missing parts.

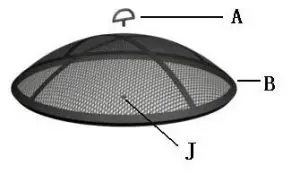

Step 2: Connect Lift handle (A) with Screen (B) by using nuts (J)

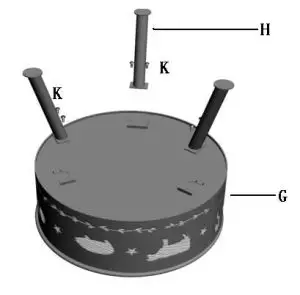

Step 3: Connect Fire bowl (G) with 3 Legs (H) by using bolts (K).

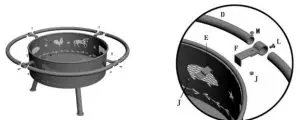

Step 4: Connect the Grill supporter (E) and Ring connector (F) with bolt (L) and nut (J). Join the 2 Decorative rings (D) together into the Ring connector by using bolt(M)and nut(J).
Step 5: Place Cooking grill (C) on top of Fire bowl (G), cover with Screen (B), and use Poker (I) for safety and convenience.
Now your fire pit is ready for use!
