Overstock ARM CHAIR BBT5267 Instruction Manual
MODEL: BBT5267 ARM CHAIR
Read this instruction carefully. See hardware and furniture part list for guidance. Be sure all parts are complete, before you assemble. Place all wooden furniture parts on a clean and flat soft surface to prevent from being scratched. Follow the figure to start assembling.
CAUTIONS
- Do not FULLY – TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
- Do not OVER – TIGHTEN the nut or bolt to avoid causing damages to the thread.
- Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed
- Screwdriver (not provider).
PART LIST
| ITEM | DESCRIPTION | QTY |
| A | CHAIR BACK | 1 PC |
| B | CUSHION SEAT FRAME | 1 PC |
| C | ARM (L) | 1 PC |
| D | ARM (R) | 1 PC |
HARDWARE LIST
| ITEM | DESCRIPTION | QTY |
| 1 | JCBC Bolt M6 x 40mm | 6pcs |
| 2 | JCBC Bolt M6 x 70mm | 2pcs |
| 3 | JCBC Bolt M6 x 80mm | 2pcs |
| 4 | Wood SCREW M4 x 38mm | 2pcs |
| 5 | M6 SPRING WASHER | 10pcs |
| 6 | M6 FLAT WASHER | 10pcs |
| 7 | M4 ALLEN KEY (BALL SHAPE) | 1pc |

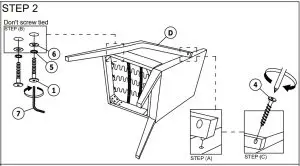

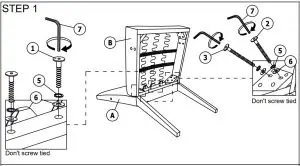

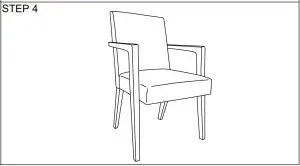

Assembly Insturctions

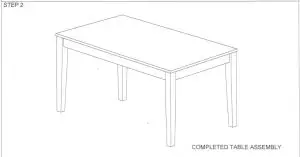

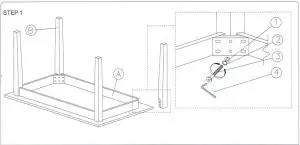

MODEL : 7008T
Read this instruction carefully, remove all wrapping material, staples and straps from the carton. See hardware and furniture part list. For guidance. Be sure youshave all wooden furniture parts on a clean and soft surface to prevent from being scratched. Follow the figure to start assembling.
Caution
- Do not FULLY —TIGHTEN the nut or bolt until all nut or nut bolt is ready to assembled.
- Do not OVER- TIGHTEN the nut or nut bolt to avoid causing damages to the thread.
- Keep all hardware part out of reach of children.
Parts List
| No. | DESCRIPTION | QTY |
| A | TABLE TOP | 1 |
| B | TABLE LEG | 4 |
Hardware list
| No. | DESCRIPTION | QTY |
| 1 | FLAT WASHER 6/19″ 0 | 8 |
| 2 | SPRING WASHER 6/13″ 0 | 8 |
| 3 | JCBC SCREW M6 X 70MM V | 8 |
| 4 | M4 ALLEN KEY I– | 1 |
