Swit Pc-p461s-a-b Portable 4 Inch Battery Fast Charger User Manual

PC-P461 S/A/B
Portable 4-ch Battery Fast Charger
Ver:B
USER MANUAL
SWIT Electronics Co.,Ltd.

Thank you for choosing SWIT products. Please read the instructions before using them, and keep them for future reference.

Warning

Keep in mind the following precautions to avoid fire or electric shock!

• Never expose the battery charger to rain or moisture.
• Never attempt to open the battery charger, please contact the local agent if have problems.
• Never use metal or other conductors to touch the inside of the battery charger.
• Never short-circuit the battery charger terminal.
• Please make sure the voltage range is fit for the battery charger.

Caution

• Only limited to charging the specified battery(ies), it may cause danger if charge other battery(ies) due to incompatibility problem.
• Keep the terminals clean and ensure a reliable connection.
• It is a normal phenomenon that the battery charger may become warm in use.
• Do not cover the cooling vent.
• Please do not put the battery charger in an unstable place, it may fall and cause serious damage.
• Do not use another brand of AC power cable to avoid damage.

Features

• Intelligent identification of fast-charging battery, support 4-ch 6A fast charge simultaneously.
• PC-P461 S automatically identifies SWIT 14.4V and 28.8V batteries to switch charging voltages.
• Real-time monitoring of the current state, intelligent regulation of charging current.
• 3.5-inch full-view highlight screen for real-time monitoring of battery and charging information in various light environments.
• 4-ch super big independent LED, Clear indication of the battery charging status.
• Full range of temperature, voltage, and current protection functions.

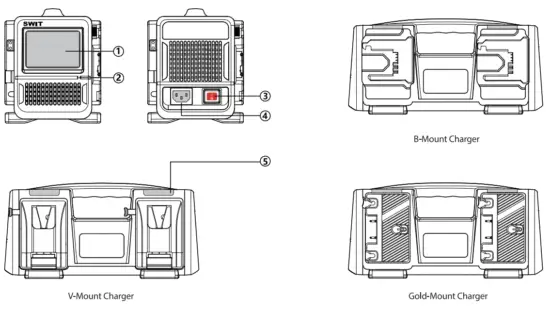

Appearance

1. LCD Screen
2. Power indicator
3. Power switch
4. Power socket
5. Charging status indicator

Charging and Display Function

• Charging status indicator: 0%-80% Red light always on 81%-99% Green light flash 100% Green light always on Error: Red light flash
• LCD Screen:

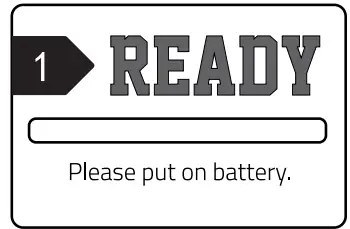

1. Standby

2. Charging
   1. After mounting the battery, the charger prepares to charge.
   2. Show the capacity and cycle times for 5s, then enter in the charging interface13).
   3. Show the percentage of battery capacity, battery voltage, and charging current.
   4. Charging complete.
   5. Battery abnormal situation handling interface, waiting for about 30s to exit this interface.
3. Relationship between charging current and battery temperature of fast charging battery:


   Battery temperature		Charging current
   <45°C		6A
   ..45°C	3A,	Battery regain 6A fast charge after battery temperature is under 40°C

   1. When the battery gets over-heat protection, the charger can recognize the temperature of the battery, and the battery will be recharged after the temperature is under 45^°C.

4. Error


Code of Error:

Specifications
