PB-R160S/A. PB-R290S/A
Heavy Duty Digital Li-ion Battery Pack
Ver:B
User Manual

PB-R160S 160Wh Heavy Duty IP54 Battery

Congratulations on your purchase of this product. Please read this user manual carefully.

Warming
Keep in mind the following precautions to avoid fire and other safety hazards!

• Do not use the battery in fires or hot places to prevent overheating, crac! ing and other hazards.
• Please do not pierce the battery shell or try to open the shell and decompose the battery.
• Do not use the battery beyond charge, discharge, and storage environment temperature.
• Do not charge the battery in the car or in direct sunlight.
• Do not use a damaged battery.
• Do not squeeze the battery shell which may cause physical damage.
• Make sure the power-consuming equipment(s} meet the battery specifications.
• Use a WIT charger or SWIT-recommended charger to charge the battery to avoid overheating or breaking.
• Keep out of the reach of children.

Caution

• Fully charged battery will discharge naturally and please use it as soon as it gets charged.
• The battery may become warm in use or while being charged. This is normal.
• Never expose the battery to a temperature above 60°C.
• Keep the battery terminals clean and never short-circuit the battery terminals.
• When stored for a long time, please keep the battery power between 50% and 90%, please do not save it for a long time after it has run out of power.

Charging

• While charging, the LED power indicators can display the current capacity percentage in real time. (For details, please check the description of LED power indicators).
• The battery pack should be charged within a temperature range of 0-40°C, but it is suggested charge the battery within 10-30°C for better performance.

Discharging

• While discharging, press the power check button, and the LED power indicators will display the remaining running time under current power consumption in real-time. (For details, please check the description of LED power indicators).
• At low temperatures, the battery’s internal resistance will increase, which may lead to automatically cut-off if the load is heavy
• The battery will automatically cut off power to protect itself when voltage, current, or temperature is abnormal. Please remove the battery, and it will restore after 60 seconds of standing.lf the battery overheats, place it in a cool place and the battery will automatically recover after cooling.
• If the voltage is too high because of the charger or other equipment, please discharge the battery to decrease the voltage then it will be restored automatically.

Features

• High-performance rechargeable lithium-ion battery, no memory effect
• Double rows of touch digital LED power indicators to display battery capacity and remaining running time under current power consumption in real ti ma
• Innovative appearance and structure design,anti-drop and durable.
• D-tap DC output, to power the camera and other equipment simultaneously.
• High load output, prolonged the service time

• 6A fast charging (Using SWIT fast charging charger).

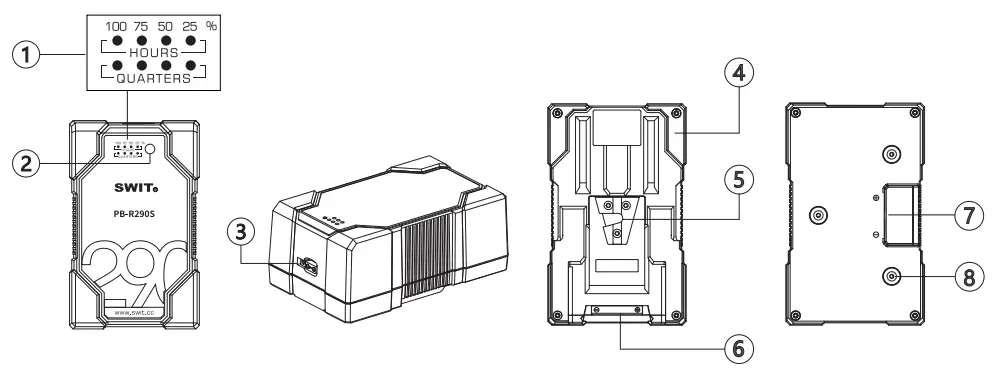

  1. LED power indicators Power check button
  2. D-tap output socket
  3. Protective rubber covers V-shape lock
  4. V-mount electrode output
  5. Gold-mount electrode output Gold-mount lock

The Description of LED Power Indicator

• When charging and free, the upper 4 LEDs display the current capacity percentage.
• In discharging status, press the “power check” button, the upper row shows the hour(s); the lower row shows minutes in green to indicate the remaining running time under current power consumption.
• The details are as below:

Free
LED Indicator Status
				25%C.Capacity<50%		50%C.Capacity<75%		75%CCapacity<95%		Capacity .-95%
Remaining Capacity	Capacity<25%
Charging
LED Indicator Status
Remaining Capacity		Capacity<25%		25%C.Capacity<50%		50%C.Capacity<75%		75%C.Capacity<95%		Capacity _-95%
Discharging
LED Indicator Status
Remaining Running Time			0-45min		15min–30min		30mi ne-45min		45min-60min		60min-75min
LED Indicator Status
Remaining Running Time			75-90min		90min–105min		105min–120min		120mirre135min		135min-150min
LED Indicator Status
Remaining Running Time			150-165min		165min-180min		180min-195min		195min–210min		210min- 225min
LED Indicator
Remaining Running Time			225–240min		240-255min		255-270min		270-285min		285–300min
LED Indicator Status					Note: 1.”©”-‘Power check button, ” 0 “-■ Off, ” I “-‘On, “0”-)flash 2.In charging and free status, the LED indicators will be in red; while in discharging status, the LED  indicators will be in green.
Remaining Running Time			≥300min

Specification
