Fluke T5-600 Electrical Voltage Tester
Warning
- Read the T5-600/T5-1000 Safety Sheet before using this tester.

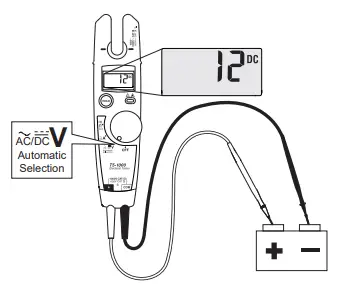

Voltage Indicator
V
- T5-600 max: 600 V CAT III
- T5-1000 max: 1000 V CAT III, 600 V CAT IV

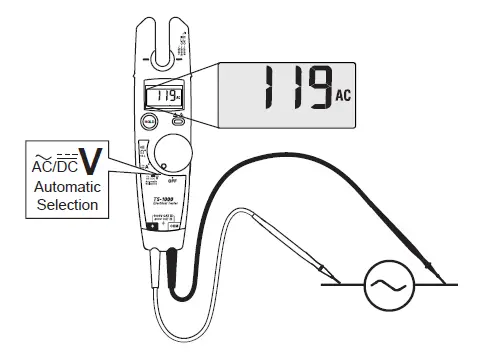

V
- 45 Hz – 66 Hz
- T5-600 max: 600 V rms CAT III
- T5-1000 max: 1000 V rms CAT III, 600 V rms CAT IV

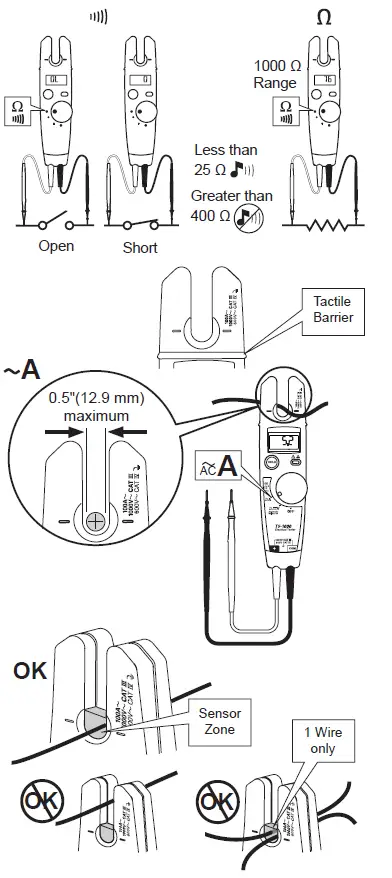

Continuity & Resistance

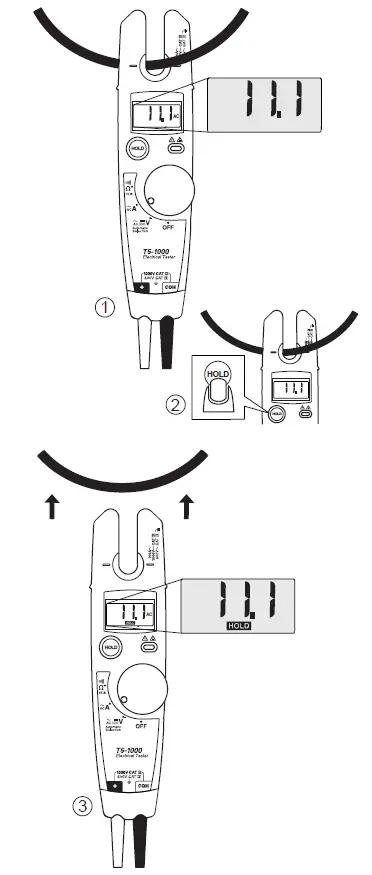

Display HOLD
Auto Off
LO

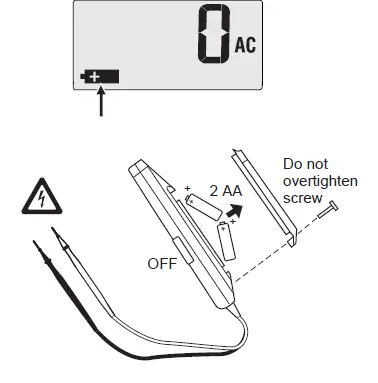

Warning
Disconnect test leads from the power source before opening the battery door.
Specifications
Specifications are subject to change without notice.
| Calibration | 1-year calibration cycle |
| Temperature Operating:
Storage: |
-10 °C to +50 °C (14 °F to 122 °F) -30 °C to +60 °C (-22 °F to +140 °F) |
| Altitude Operating:
Storage: |
2000 m (6562 ft) 10,000 m (32808 ft) |
| Relative Humidity | 0 % to 95 %, 5 °C to 30 °C
(41 °F to 86 °F); 0 % to 75 %, 30 °C to 40 °C (86 °F to 104 °F); 0 % to 45 %, 40 °C to 50 °C (104 °F to 122 °F) |
| Battery Type and Life | AA (2); 360 hours continuous with
alkaline; 125 hours continuous with zinc chloride |
| RF Field Specification | 0.5 % full scale + (specified accuracy) at 3 V / m |
| Enclosure Rating | IP 40 per IEC 60529, no vacuum applied |
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18
°C or >28 °C (< 64.4 °F or > 82.4 °F) |
| Accuracy | ± ( [ % of reading] + [number of least significant digits] )
Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac- coupled, average responding, and calibrated to the rms value of a sine wave input. |
- Safety ……………………. IEC 61010-1: Pollution Degree 2
- Electromagnetic
- Environment ……………. IEC 61326-1: Portable
Functions
| T5-600 | T5-1000 | |||
| Function | Range
(600 V | Range
(1000 V | Reso- lution | Accuracy |
| CAT III) | CAT III) | |||
 | 600 V | 1000 V | 1 V | ±(1.5 % + 2 digits) |
| rms | rms | 45 Hz – 66 Hz | ||
 | 600 V | 1000 V | 1 V | ±(1 % + 1 digit) |
 | 100.0 A | 100.0 A | 0.1 A | ±(3 % + 3 digits) |
| 45 Hz – 66 Hz | ||||
 | 1000 Ω | 1000 Ω | 1 Ω | ±(1 % + 2 digits) |
Replacement Parts
| Test Lead Assembly.
Replace only with Fluke double-insulated leads ( |
PN 648029 |
| Battery Door | PN 2091779 |
| Battery Door Screw | PN 8758161 |
) See “Accessories” for available probes.Use only specified replacement parts.
Accessories
- H5 Belt Holster
- TP1 Probe Set, Flat-Blade
- AC285 SureGrip™ Alligator Clips
- AC220 SureGrip™ Alligator Clips
- Service Information Sheet, PN 686953
Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com To register your product, view, print, or download the latest manual or manual supplement, go to our website.
Fluke Corporation
- P.O. Box 9090
- Everett, WA 98206-9090
- +1-425-446-5500
- [email protected]+
Frequently Asked Questions
The Fluke T5-600 is a digital electrical voltage and current tester used to measure voltage, current, and resistance in electrical circuits.
The Fluke T5-600 can measure voltage up to 600 volts (AC and DC).
The Fluke T5-600 can measure current up to 100 amps (AC and DC).
Yes, the Fluke T5-600 requires two AA batteries to operate.
Yes, the Fluke T5-600 has a digital display that shows the measured values.
Yes, the Fluke T5-600 is designed with safety in mind and has features like insulated probes and automatic shutoff to prevent accidents.
Yes, the Fluke T5-600 can measure resistance up to 1000 ohms.
Yes, the Fluke T5-600 is designed for ease of use, with a simple interface and intuitive controls.
No, the Fluke T5-600 cannot measure frequency.
Yes, the Fluke T5-600 is built to withstand tough working conditions and is made with durable materials.
The Fluke T5-600 has an accuracy of ± 1% of reading ± 3 counts for voltage, ± 1.5% of reading ± 3 counts for current, and ± 1% of reading ± 2 counts for resistance.
The Fluke T5-600 is compact and lightweight, measuring 8.0 x 3.0 x 1.5 inches and weighing 9.3 ounces.
Yes, the Fluke T5-600 can be used for both AC and DC circuits.
Yes, the Fluke T5-600 is a high-quality and reliable tool suitable for professional use in the electrical industry.
Yes, the Fluke T5-600 comes with a one-year warranty.
