Montageanleitung Assembly instructions – BoPad

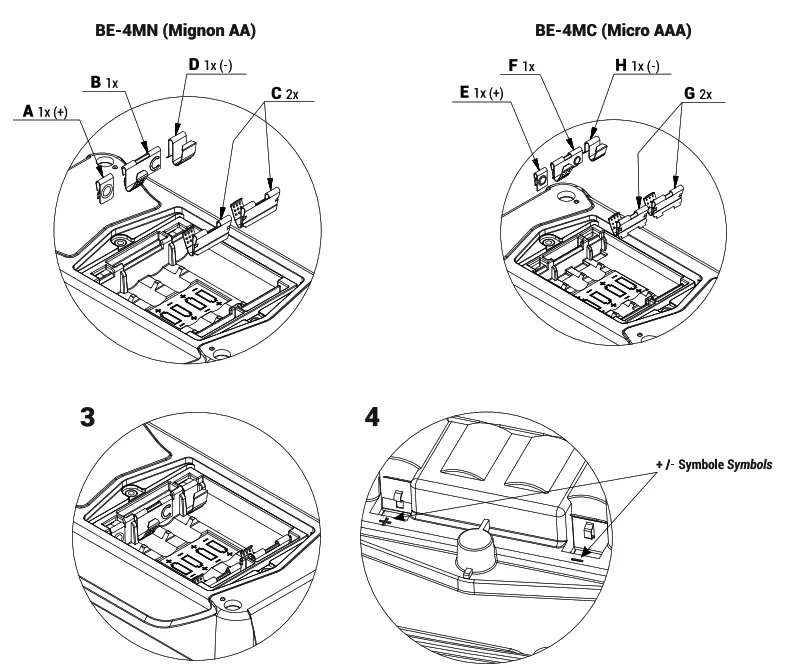

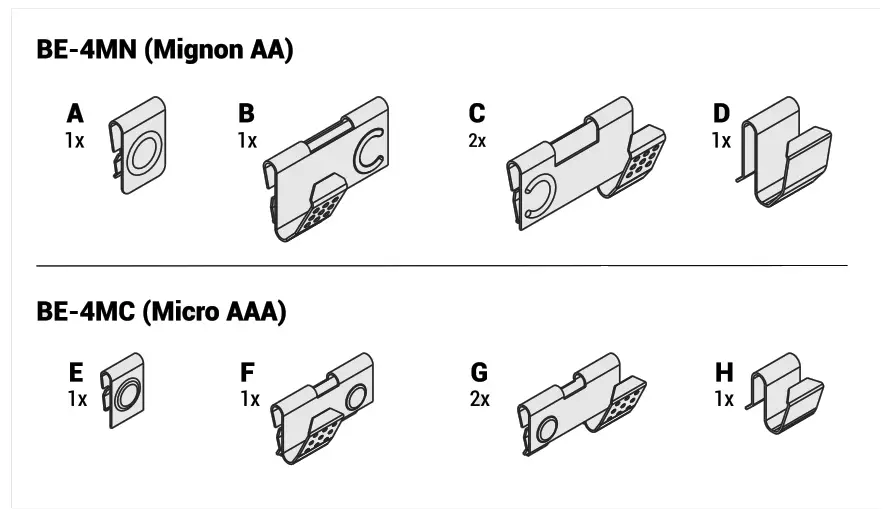

Batteriekontakte Battery Contacts
Inhalt Content

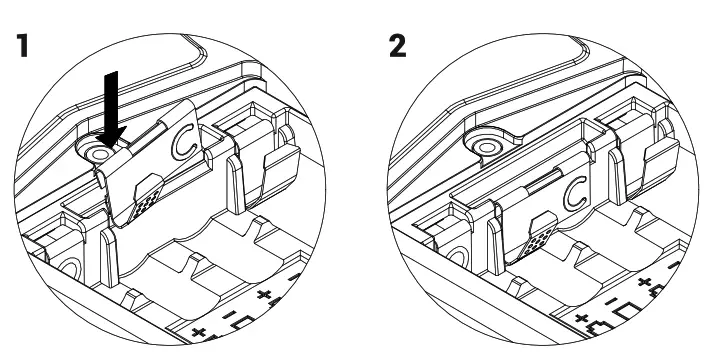

. In order to ensure a convenient assembly, double contacts should be inserted in a slightly tilted position – contact tab pointing down (1). Afterwards press them straight down to their final position (2).
Bopla Gehduse Systeme GmbH
Borsigstr. 17-25
D- 32257 Biinde
Tel.: +49 (0) 52 23 / 969-0
Fax: +49 (0) 52 23 / 969-100
www.bopla.de
[email protected]
Art.-Nr. | Mat. no. 35999902
09/2016
