Vivotech Md95 Series Mobile Dome Network Cameras Installation Guide

MD9561-H, MD9581-H, MD9560-(D)
H, MD9582-H
Quick Installation Guide
P/N: 625051902G

Warning Before Installation

• The product must be installed and protected in a location that is not easily accessible and is away from impacts or heavy vibration. For example, at the location where the surveillance cameras are looking down or installed at high positions such as on a pole, wall, or at least 3 meters above the ground.
• The product should be used in compliance with local laws and regulations.
• Do not install the product on an unstable mount or surface.
• Do not disassemble the camera or perform maintenance tasks when power is connected.
• Before installation, the product should be stored in a dry and ventilated environment.
• Use only accessories that comply with the technical specifications of the product.
• Please contact VIVOTEK’s certified dealers for power adapters.

Package Contents

Power Input
MD9560-H/MD9561-H/MD9581-H/MD9582-H: IEEE 802.3af PoE Class 2
MD9560-DH: DC 7.5 ~ 48V
Power Consumption
MD9560-H/MD9560-DH/MD9561-H:
Max. 5.5 W (IR on), Max. 3.3 W (IR off)
MD9581-H:
Max. 6 W (IR on), Max. 3.3 W (IR off)
MD9582-H:
Max. 6 W (IR on), Max.4.5 W (IR off)

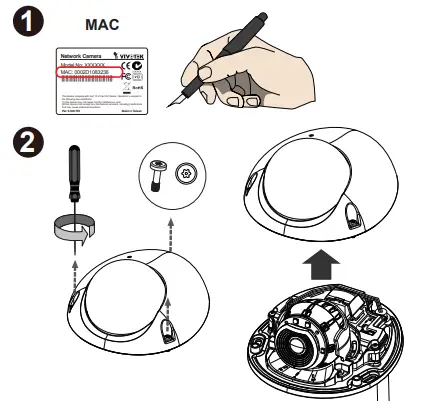

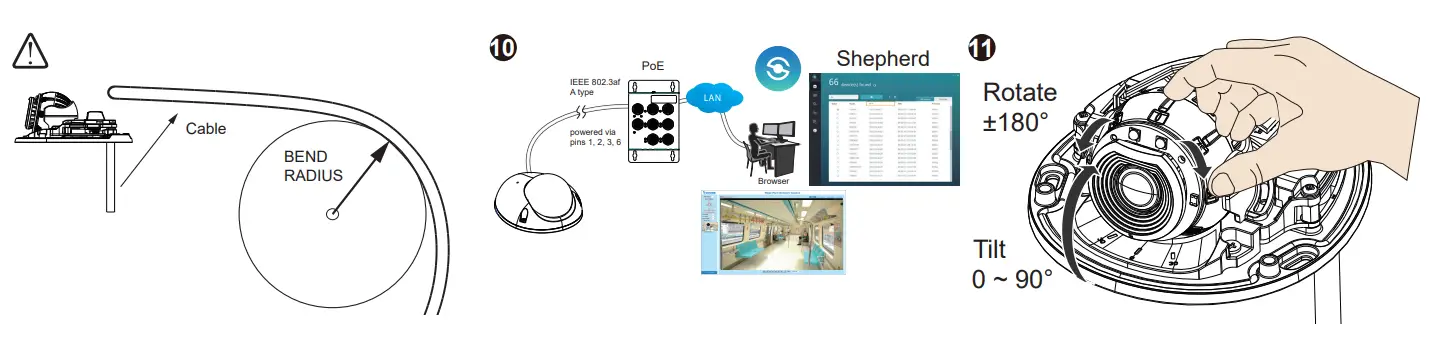

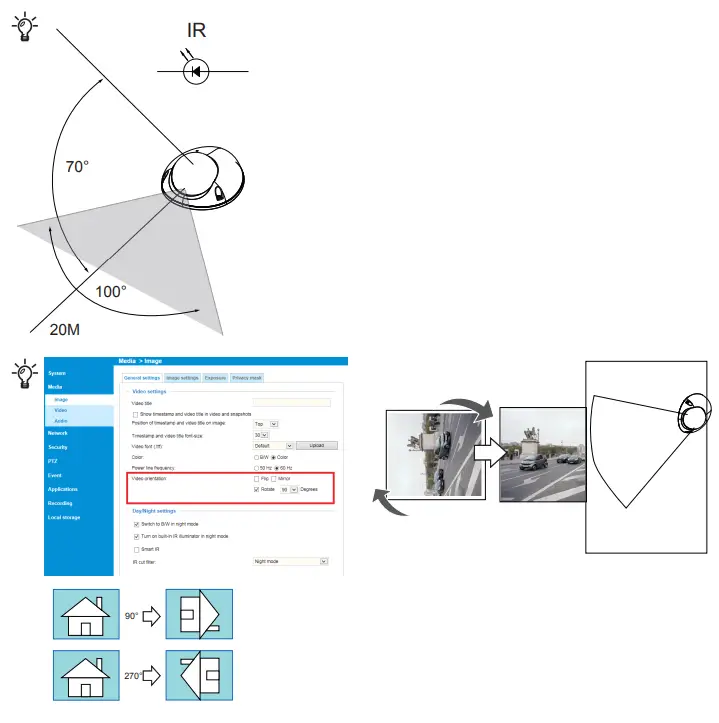

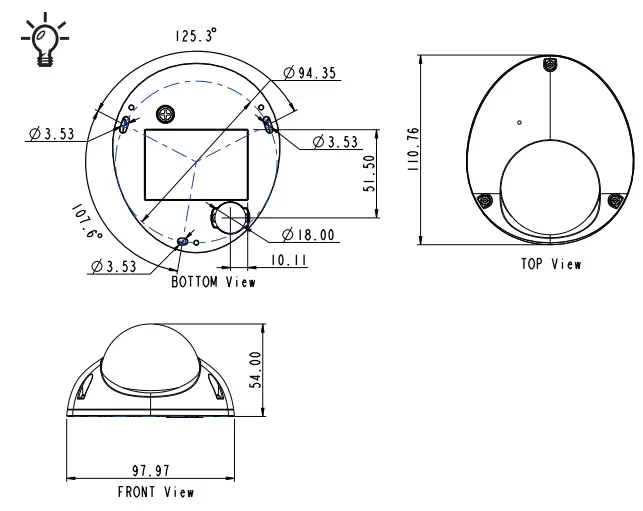

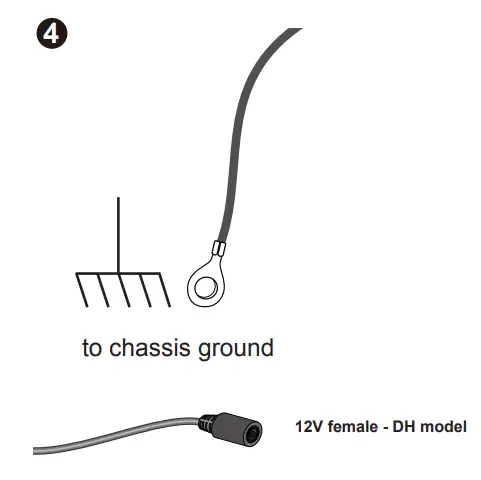

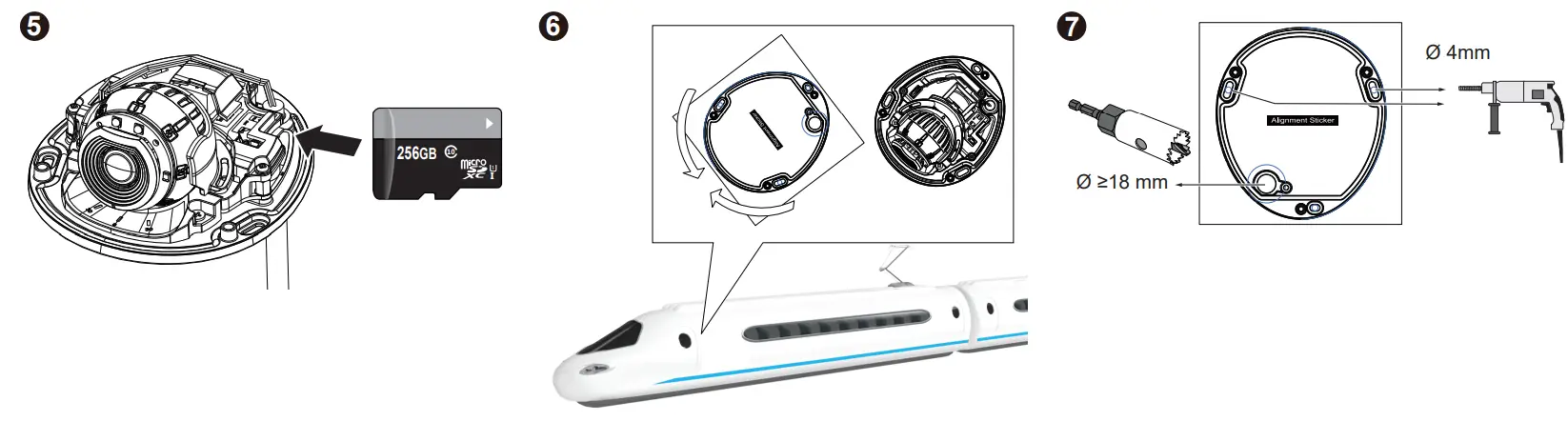

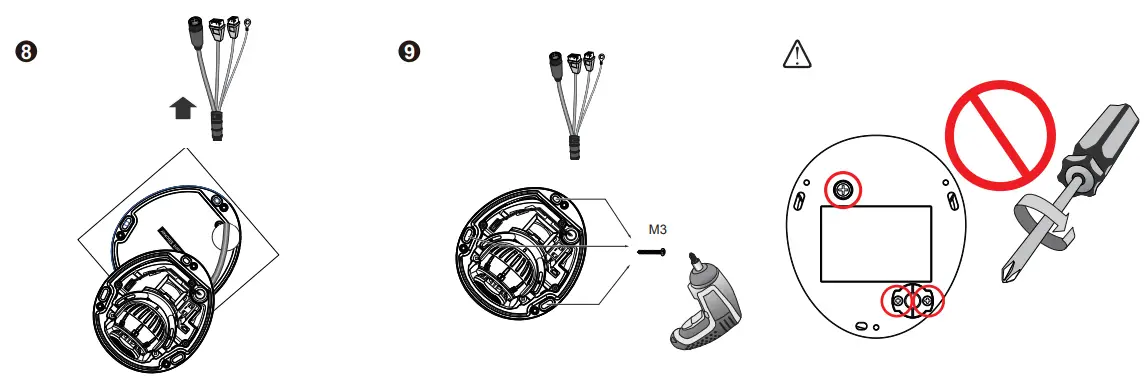

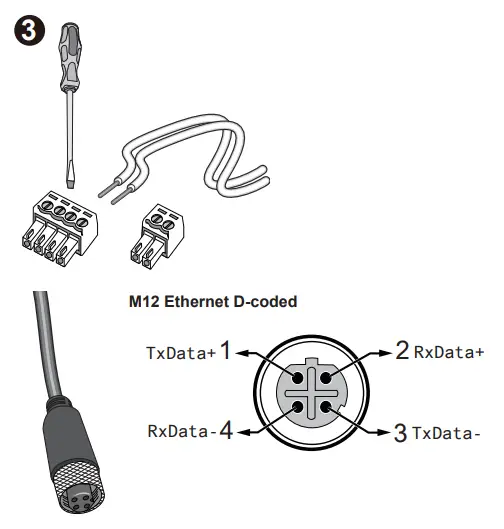

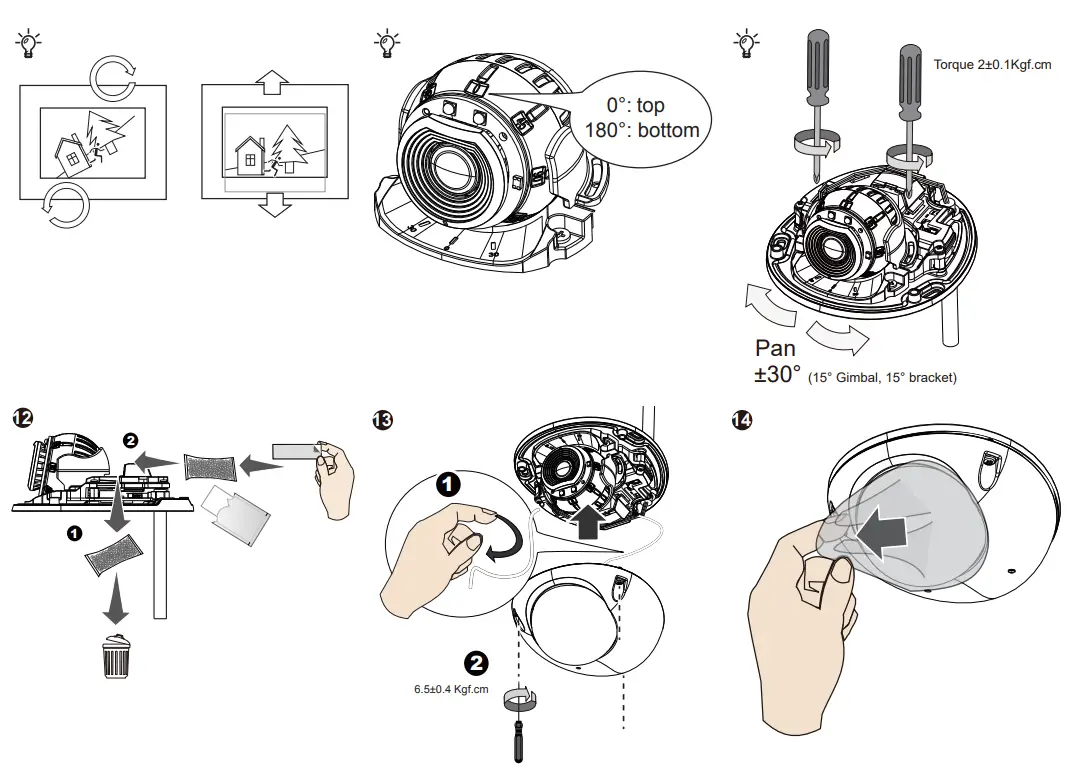

Hardware Installation

Please contact authorized distributors for warranty and RMA service.
Visit https://www.vivotek.com/support/warranty-rma”

All specifications are subject to change without noice.
